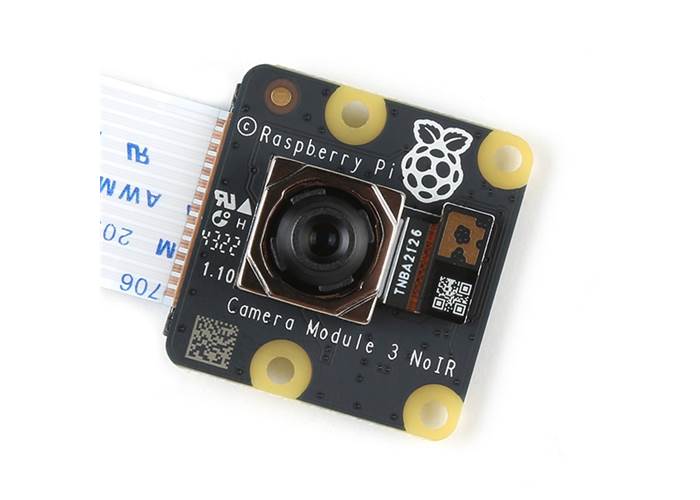

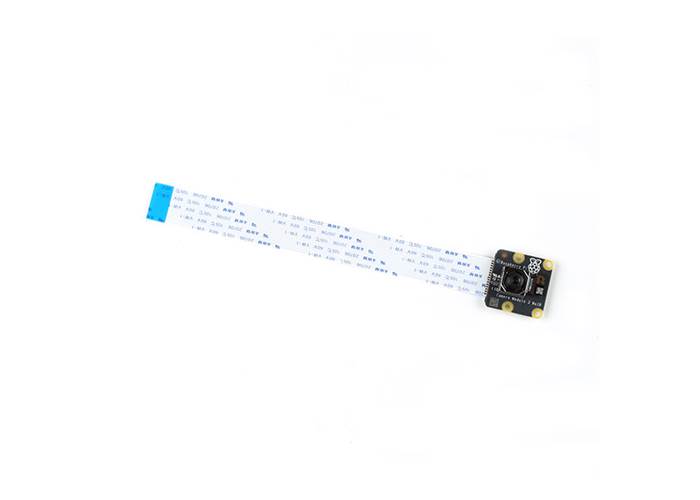

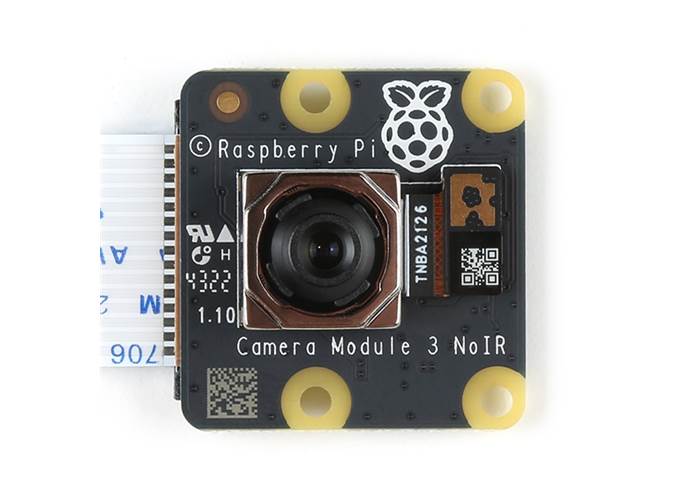

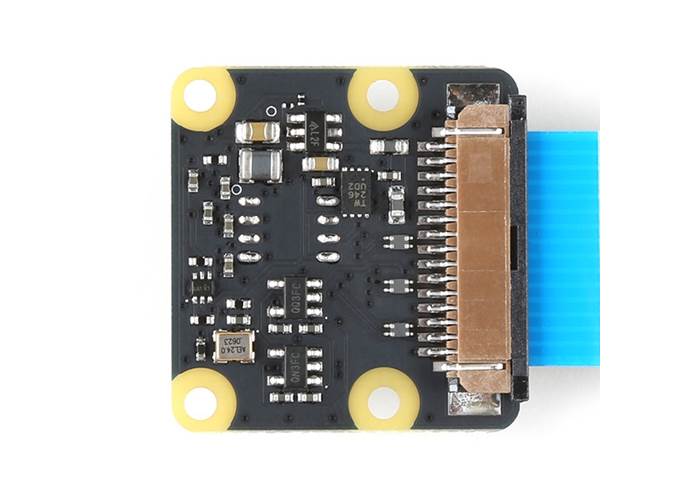

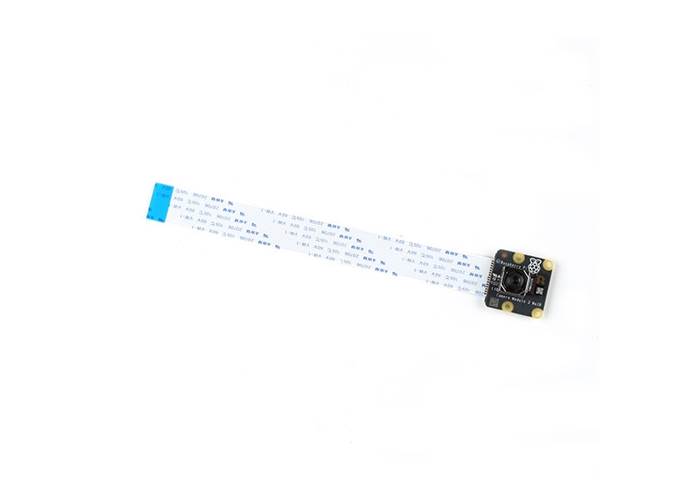

Raspberry Pi Camera Module 3 NoIR

The Raspberry Pi Camera Module 3 NoIR is the latest entry in the mainstream RPi camera line-up, and comes with an IR filter (thus the NoIR). Built around a 12-megapixel Sony IMX708 image sensor module, Camera Module 3 offers a few key enhancements over its predecessor.

AUD$ 55.95

Special Order

Shipping from $7.90

+33 more from our supplier in 7-10 days

Our Code: SKU-010093

Supplier Link: [SparkFun MPN:21736]


Description

The Raspberry Pi Camera Module 3 NoIR is the latest entry in the mainstream RPi camera line-up, and comes with an IR filter (thus the NoIR). Built around a 12-megapixel Sony IMX708 image sensor module, Camera Module 3 offers a few key enhancements over its predecessor. Improved low-light sensitivity makes for better photos and output in situations where there's not a lot of light. The module also features powered autofocus making it easier to get a sharp picture output. Finally the Camera Module 3 features High Dynamic Range (HDR) support expanding the range of colour and contrast in the output.

This NoIR version features the standard lens (76° field of view). It also comes in a wide-angle lens variation which is available in the related products below.


Specifications

  • Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
  • High signal-to-noise ratio (SNR)
  • Built-in 2D Dynamic Defect Pixel Correction (DPC)
  • Phase Detection Autofocus (PDAF) for rapid autofocus
  • QBC Re-mosaic function
  • HDR mode (up to 3 megapixel output)
  • CSI-2 serial data output
  • 2-wire serial communication (supports I2C fast mode and fast-mode plus)
  • 2-wire serial control of focus mechanism
  • IR Filter Built-In
