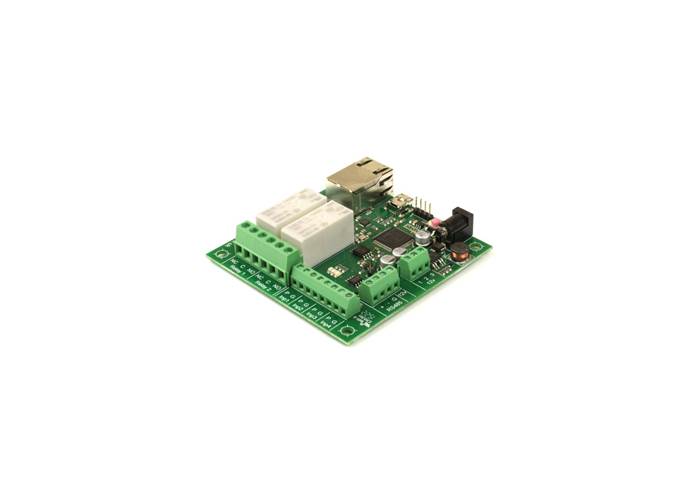

Programmable dS2242 - 2 x 16A ethernet relay module (ds2242)

Control two 16 Amp relays and read over an ethernet connection using a web page or via simple TCP/IP based commands. This feature packed board also has 4 digital I/O, 2 analogue input connections plus a TTL and RS485 serial port. The module can be programmed to respond to inputs and send/receive commands over TCP/IP. You can even customise the web page interface.

AUD$ 118.95

In stock in Australia

Shipping from $7.90

+lots more from our supplier in 7 days

Our Code: MCU-060259

Right out of the box

Simple configuration and setup from your web browser.
Control it from a web page, or select tcp/ip control with an option of ASCII, Binary or Modbus protocols.
Send email notifications on selected events.
Optional AES encryption for totally secure control using binary tcp/ip mode.
Add simple relay automation, for automatic relay control.
Create Peer to Peer control in a few clicks.
100 step configurable sequencer for advanced control.
Optional dSX42 extension modules for control/sensing up to 300 meters away.
Up to eight 32-bit counters with capture and reset, 20 counts/second on inputs.
Event schedules for timed events daily or weekly.
Free Android and iPhone Apps are available to remotely control this module.

Still want more?

You can completely customise the module using our powerful dScript language! - or just modify a supplied example.
Create custom webpages - Add your own logo, buttons and functionality.
Add a tcp server to respond to incoming tcp requests with your own functions.
Include a tcp client and send packets of tcp data to other devices using your own protocol.

Hardware

  • Serial ports - 1 x TTL level serial port, 1 x RS485 port.
  • Relays - 2 with up to 16Amp @24vdc or 250vac, screw Terminals for N/O N/C and Common contacts
  • I/O - 4 channels, your choice of VFC input or NPN output.
  • Analogue Inputs - 2 channels of 10-bit A/D.
  • Communication - USB for development, RJ45 Ethernet for normal access
  • Power - 12V DC jack 2.1mm (adaptor sold separately)

IDE

dScript editor requirements - Windows 10 or later, Linux or macOS.

Resources

 Documentation, editor and examples
