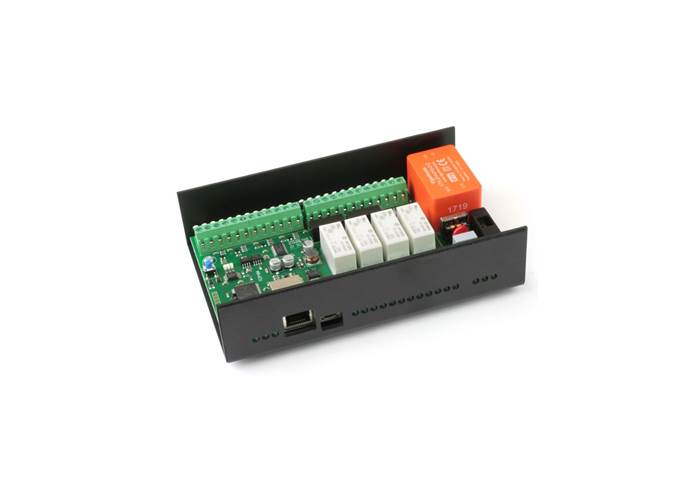

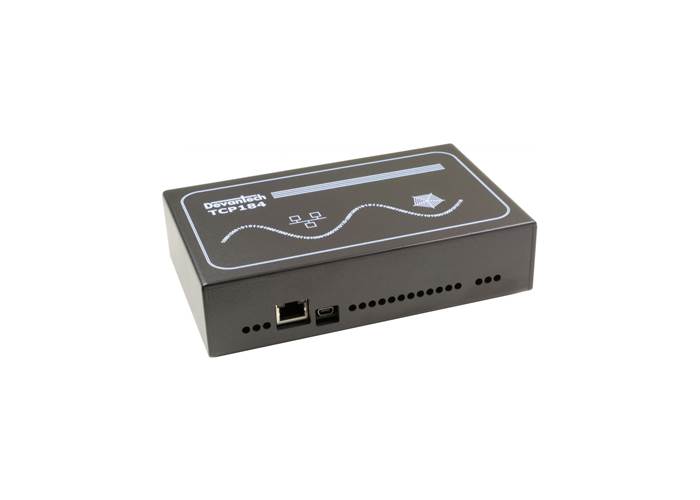

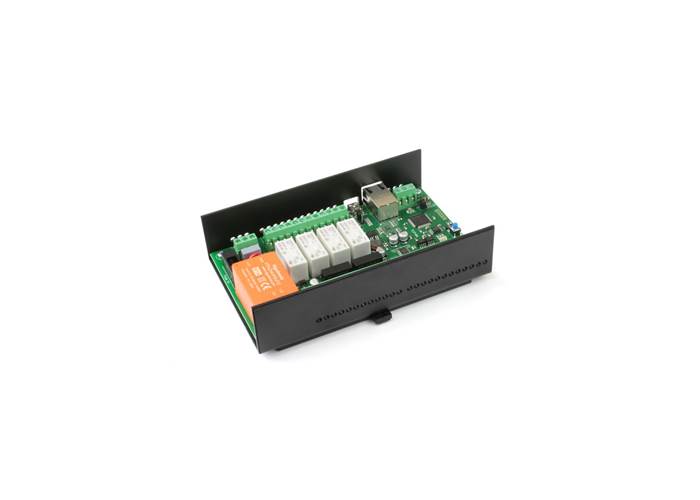

Programmable TCP184 - DIN rail - industrial 4 x 16A relays with Ethernet (TCP184)

DIN rail mountable, 4 relay - ethernet controlled relay module board. Includes 8 flexible opto-isolated inputs.

AUD$ 222.95

In stock in Australia

Shipping from $7.90

+lots more from our supplier in 7 days

Our Code: MCU-060263

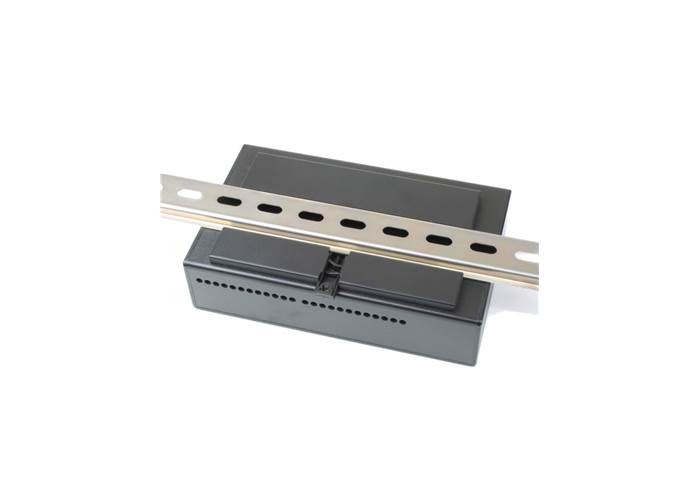

Ruggedised, Industrial, DIN rail mounting control module
Built in snubbers for safe connection to inductive loads.
Optically isolated inputs.
Mains power - 90 - 264Vac, 47-63Hz.

Right out of the box -

Simple configuration and setup from your web browser.
Control it from a web page, or select tcp/ip control with an option of ASCII, Binary or Modbus protocols.
Send email notifications on selected events.
Optional AES encryption for totally secure control using binary tcp/ip mode.
Add simple relay automation, for automatic relay control.
Create Peer to Peer control in a few clicks.
Up to eight 32-bit counters with capture and reset, 20 counts/second on inputs.
Event schedules for timed events daily or weekly.

Still want more?

You can completely customise the module using our powerful dScript language! - or just modify a supplied example.
Create custom webpages - Add your own logo, buttons and functionality.
Add a tcp server to respond to incoming tcp requests with your own functions.
Include a tcp client and send packets of tcp data to other devices using your own protocol.


Serial port - 1 x RS485 port.
Relays - 4 with up to 16Amp @24vdc or 250vac, screw Terminals for N/O N/C and Common contacts
Inputs - 8 flexible channels, your choice of VFC input, counters or 12-bit analogue input.
Communication - USB for development, RJ45 Ethernet for normal access
Mains power - 90 - 264Vac, 47-63Hz.


dScript editor requirements - Windows 10 or later, Linux or macOS.


 Documentation, editor and examples
