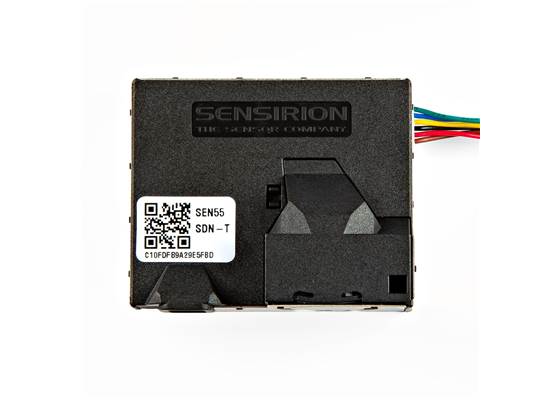

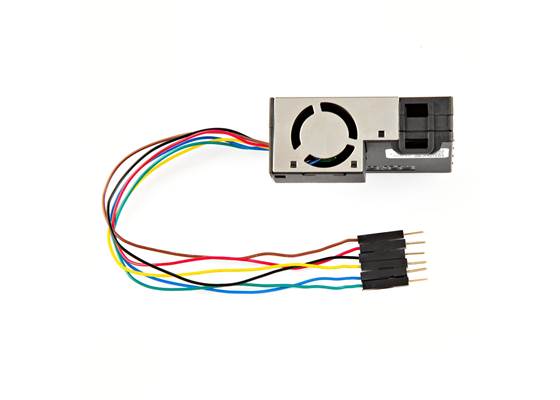

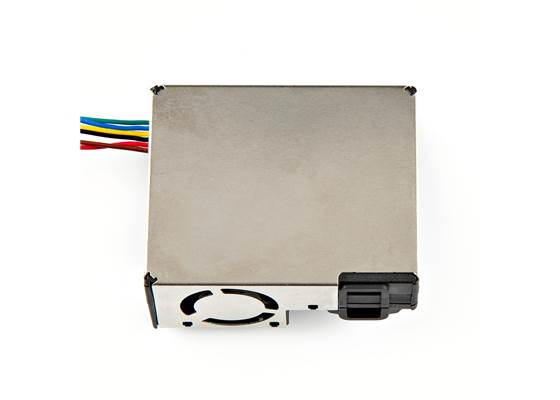

Sensirion Particle, VOC, Humidity, and Temperature Sensor - SEN55

The SEN55 environmental node is a straightforward, all-in-one sensor solution platform for the accurate measurement of various environmental parameters, such as particulate matter, volatile organic compounds (VOCs), oxidizing gases, such as nitrogen oxides (NOx), as well as humidity & temperature.

AUD$ 69.95

Special Order

Shipping from $7.90

+77 more from our supplier in 7-10 days

Our Code: SKU-010217

Supplier Link: [SparkFun MPN:23715]


Description

The SEN55 environmental node is a straightforward, all-in-one sensor solution platform for the accurate measurement of various environmental parameters, such as particulate matter, volatile organic compounds (VOCs), oxidizing gases, such as nitrogen oxides (NOx), as well as humidity & temperature.

Thanks to proprietary algorithms, the module enables straightforward integration into various applications. This allows you to save valuable project time and personnel resources compared to integrating all of these separately. The SEN55 provides reliable air quality measurement data.

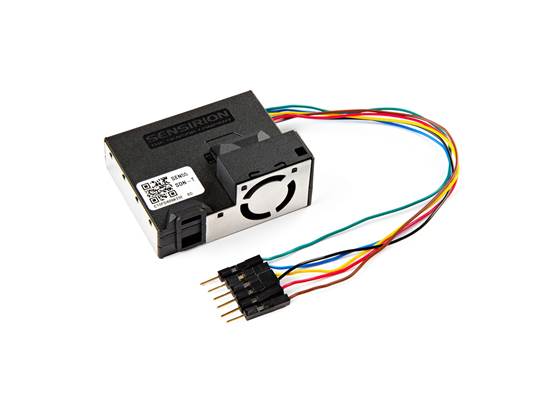

Note: We provide an interface cable as well. A feature not found elsewhere.


Specifications

  • Properties
    • Supply voltage: 4.5V
    • Average supply current: 63000uA
    • Max. supply current: 110000uA
    • Interfaces: I²C

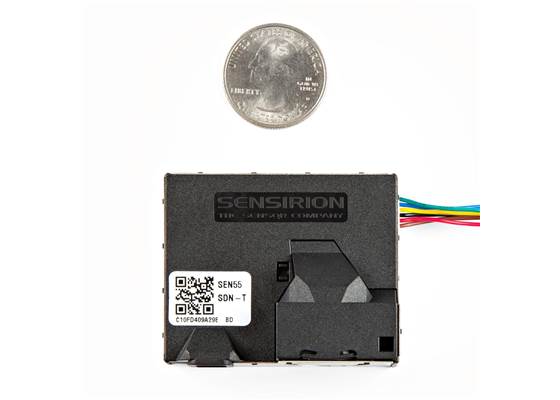

    • Size (LxWxH): 52.8 x 43.6 x 22.3 mm³
  • Particulate Matter
    • Mass concentration precision: ±10%
    • Mass concentration range: 0 - 1000μg/m³
    • Lifetime: > 10 years
    • Particle size range: PM1.0, PM2.5, PM4 and PM10
  • Temperature
    • Typ. temperature accuracy: 0.45°C
    • Operating temperature range: -10 - 50°C
    • Response time(τ63%): < 60s
  • Humidity
    • Typ. relative humidity accuracy: 4.5 %RH
    • Operating relative humidity range: 0 - 90 %RH
    • Response time(τ63%): 20s
  • VOC
    • Sensor output: 0-500 VOC Index
    • Measurement range: 0 - 1000ppm
    • Response time(τ63%): < 10s
    • Device-to-device var.: ±15% m.v.
    • Limit of detection: < 0.05 ppm of ethanol equivalents or < 10 % of concentration setpoint, whichever is larger
    • Switch-on time: 1h
    • On-chip humidity compensation: Yes
