SparkFun Triband GNSS RTK Breakout - UM980

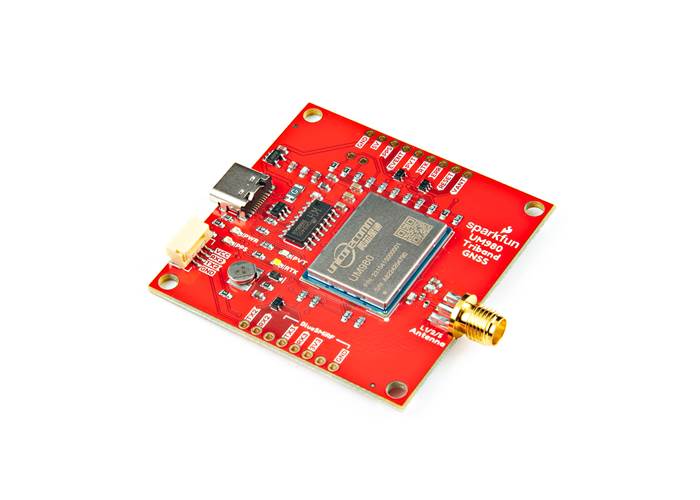

The SparkFun Triband GNSS RTK Breakout features the UM980 GNSS high precision RTK position module from Unicore Communications.

AUD$ 444.95

Special Order

Shipping from $12.80

+39 more from our supplier in 7-10 days

Our Code: SKU-010243

Supplier Link: [SparkFun MPN:23286]

Description

The SparkFun Triband GNSS RTK Breakout features the UM980 GNSS high precision RTK position module from Unicore Communications. The UM980 is a 1408-Channel GNSS Receiver based on the Nebulas IV™ that is able to simultaneously track GPS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b/E6, Beidou B1I/B2I/B3I/B1C/B2a/B2b, QZSS L1/L2/L5, and SBAS. With this board, you will be able to know where your (or any object's) X, Y, and Z location is within roughly the width of your fingernail. When an RTK solution is reached, the module can achieve a horizontal accuracy of about 8mm (~0.3 inches) and vertical accuracy of 15mm (~0.59 inches). The UM980 is capable of both rover and base station operations.

We've included a rechargeable backup battery to keep the latest module configuration and satellite data available. This battery helps 'warm-start' the module, decreasing the time-to-first-fix dramatically. This module features a survey-in mode, allowing the module to become a base station and produce RTCM 3.x correction data. A SMA connector is included for a secure connection to a Triband GNSS antenna.

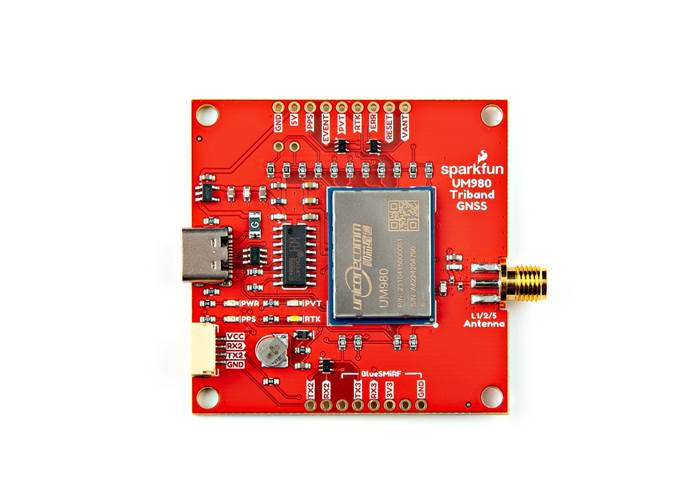

Currently, serial UART is only supported on the UM980 module. All three serial UART ports have been broken out to the USB-C connector via CH340, 4-pin locking JST connector, and BlueSMiRF header. Unique pins have also been broken out to the edge of the board. Various jumpers are also included to configure power and LEDs.

Get Started with the SparkFun UM980 Triband GNSS RTK Breakout Guide

Specifications

Module has a typical low power-consumption of ~480mW
1408-Channel GNSS Receiver based on the Nebulas IV™
Concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS
- GPS: L1C/A, L1C^*, L2P(Y), L2C, L5
- GLONASS: L1, L2
- Galileo: E1, E5a, E5b, E6^*
- Beidou: B1I, B2I, B3I, B1C, B2a, B2b^*
- QZSS: L1, L2, L5
- SBAS
Horizontal Accuracy
- Autonomous: 1.5m
- DGPS: 0.4m
- RTK: 0.8cm + 1ppm
Vertical Accuracy
- Autonomous: 2.5m
- DGPS: 0.8m
- RTK: 1.5cm + 1ppm
50Hz Data Update Rate^*
Time-To-First-Fix:
- Cold: 30s
- Warm: 20s
- Hot: 5s
CoCom Limits
- Max Altitude: 18000m
- Max G: <5G
- Max Velocity: 515m/s
Velocity Accuracy (RMS): 0.03m/s
Time Accuracy (RMS): 20ns
Supports NMEA, RTCM, and Unicore (w/ specific firmware) protocols over UART
Integrated SMA connector for use with multiband GNSS antenna of your choice
Voltage: 5V or 3.3V but all logic is 3.3V
USB Type C Connector
ESD Protection Diodes for USB Data Lines
Built-in Resettable PTC Fuse 6V/1.5A
CH340 USB-to-serial converter on UART1 Port
Locking JST Connector for UART2 Port
BlueSMiRF Footprint for UART3 Port
Backup Battery for Hot Start
LEDs
- PWR: Power Indicator
- PVT: Position, Voltage, Time
- PPS: Pulse-Per-Second Indicator
- RTK: Reak-Time-Kinematic Fixed Solution Indicator

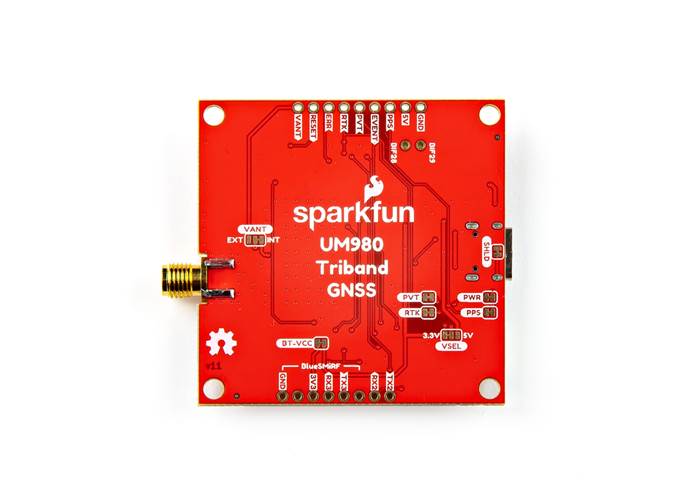

Jumpers
- SHLD: USB Shield
- VSEL: Voltage Select for Locking JST Connector Port
- PWR: Power LED
- PVT: Position, Voltage, Time LED
- PPS: Pulse-Per-Second LED
- RTK: Real-Time Kinematic LED
- BT-VCC: Voltage Select for Bluetooth Port
- VANT: Voltage Antenna Select

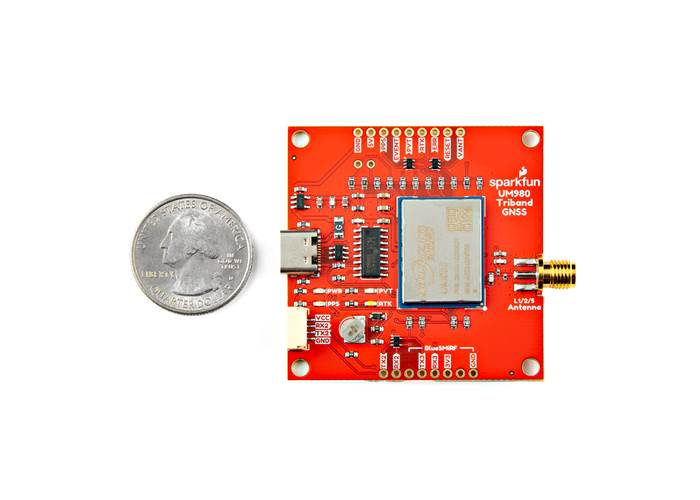

Dimensions: 2.0in. x 2.0in. (50.8mm x 50.8mm)
Weight: 13.8g
