PINECIL - Smart Mini Portable Soldering Iron

The PINECIL is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, a built-in IMU for auto standby and it heats up to an operating temperature in just six seconds! The PINECIL is capable to receive power from either the USB-C port or barrel jack.

AUD$ 80.95

Special Order

Shipping from $7.90

+27 more from our supplier in 7-10 days

Our Code: SKU-010282

Supplier Link: [SparkFun MPN:23913]


Description

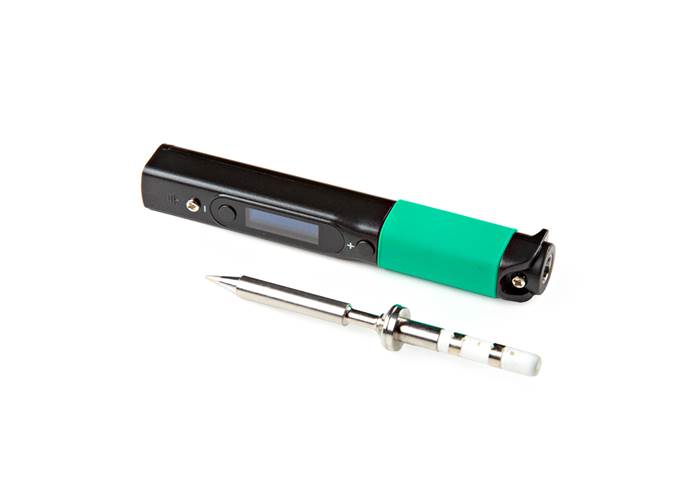

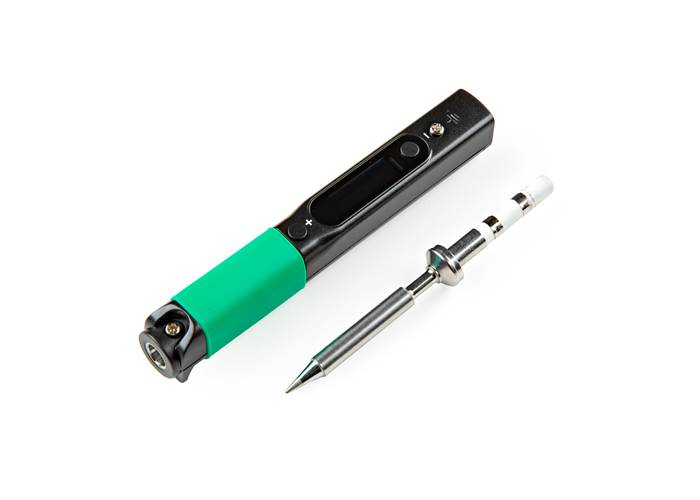

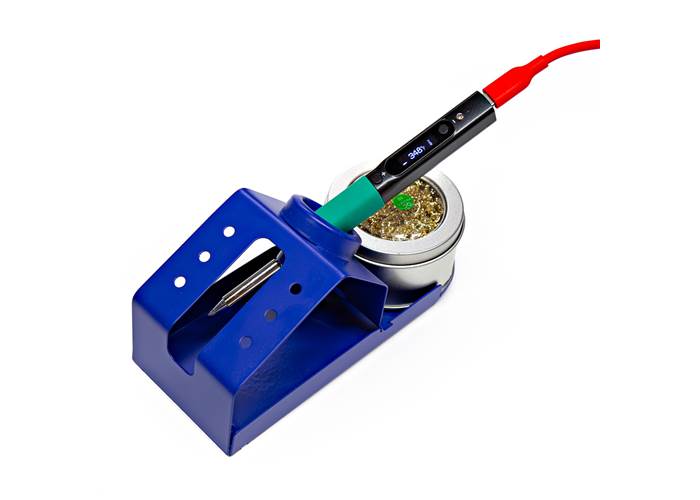

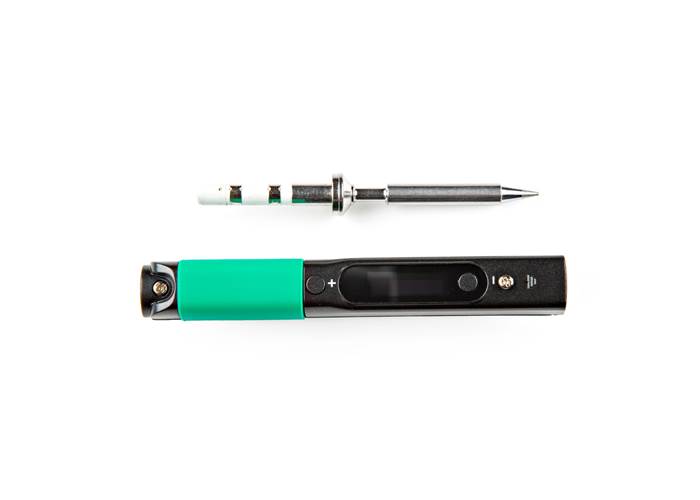

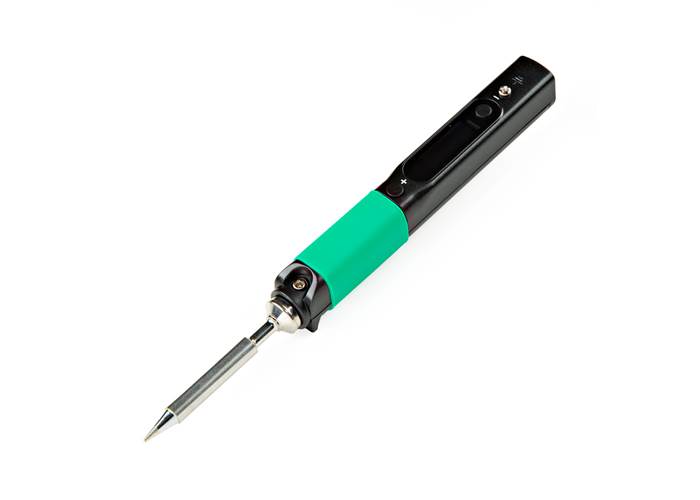

The PINECIL is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, a built-in IMU for auto standby and it heats up to an operating temperature in just six seconds!

The PINECIL is capable to receive power from either the USB-C port or barrel jack. The adjustable soldering tip temperature can be set between 100° C and 400° C using the adjustment buttons around the easy-to-read OLED display.

Includes:

  • 1x Pinecil Soldering Iron
  • 1x Soldering Tip
  • 1x User Manual

Specifications

  • Body:

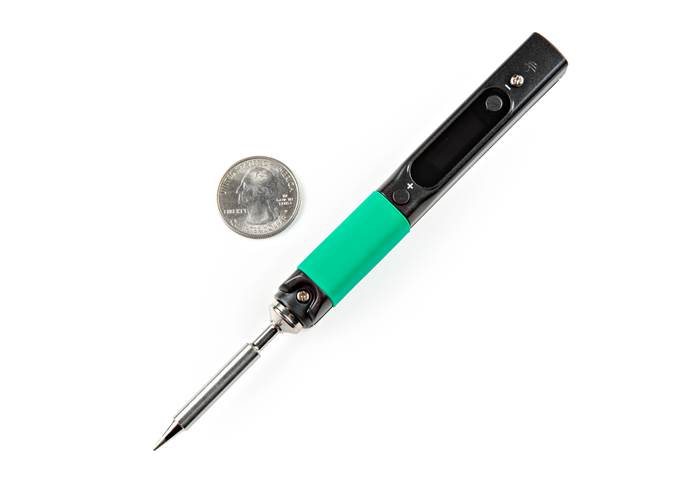

    • Dimensions:
      • 155 x 12.8 x 16.2mm with solder tip
      • 103 x 12.8 x 16.2mm without solder tip
    • Weight:
      • 28g with solder tip
      • 18g without solder tip
    • Build: Plastic with metal clip (Handle)
    • Colour: Black (case) / Green (sleeve)
  • Platform:
    • OS: Ralim's IronOS build
    • Chipset: Bouffalo BL-706
    • CPU: 32-bit RV32IMAFC RISC-V "SiFive E24 Core" @ 144 MHz
  • Display:
    • Type: OLED White Colour Monochrome Display
    • Size: 0.69 inches
    • Resolution: 96x16 pixels
  • Power Ports:
    • USB type C: PD and QC 3.0 12V-24V 3A
    • Barrel Jack: DC5525, 12V-24V DC 3A
  • Tip:
    • Type: B2
    • Length: 86mm
    • Weight: 8.2g
