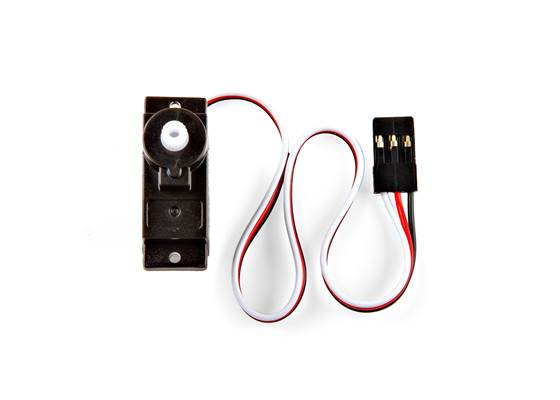

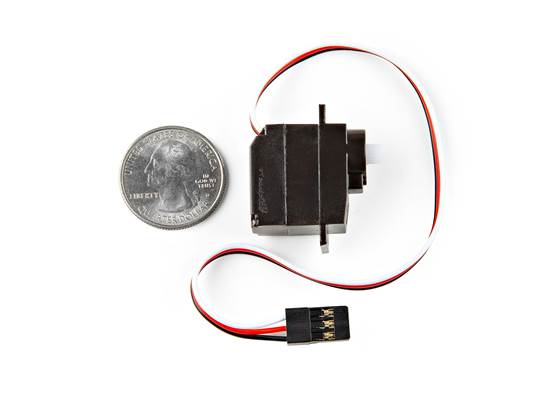

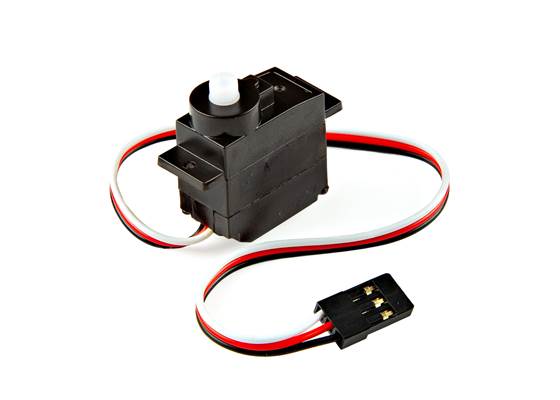

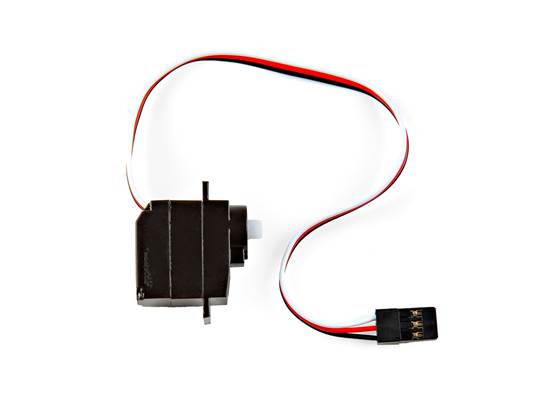

Servo - Generic, 180° Rotation (Sub-Micro Size)

Here is a simple, low-cost servo for all your mechatronic needs. This little guy is able to take in 6 volts and deliver 1.5kg/cm (at 6V). of maximum torque at 0.09 sec/60° (at 6V). This small servo comes with a standard 3 pin power and control cable, six arms and six screws.

13.95

Not currently available

Our Code: SKU-010306

Supplier Link: [SparkFun MPN:24052]


Description

Here is a simple, low-cost servo for all your mechatronic needs. This little guy is able to take in 6 volts and deliver 1.5kg/cm (at 6V). of maximum torque at 0.09 sec/60° (at 6V).

This small servo comes with a standard 3 pin power and control cable, six arms and six screws.

Note: This is the same servo used with the XRP kits Beta & DIY

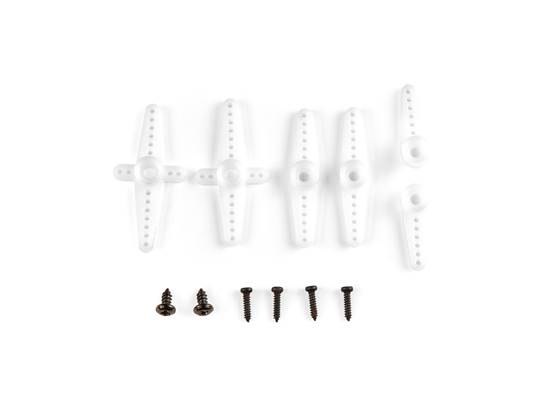

Includes:

  • 1x Micro Size Servo
  • 2x Single Arm Micro Horn
  • 2x Double Arm Micro Horn
  • 2x Four Point Micro Horn
  • 4x 2x8mm Phillips Screw
  • 2x 2x6mm Phillips Screw

Specifications

  • Voltage: 4.8-6.0 Volts
  • Torque: 1.2kg/cm (at 4.8V), 1.5kg/cm (at 6V)
  • Speed: 0.11sec/60° (at 4.8V), 0.09sec/60° (at 6V)
  • Current: < 500mA
  • Rotation: 180°
  • Operating Temperature: 0 ℃ - 60 ℃
  • Standard Signal: 1000~2000 microseconds
  • Deadband Setting: 4 usec
  • Motor Type: Iron Core
  • Gear Type: Plastic
  • Dimensions: 23.1 x 11.9 x 26.0 mm
  • Wire Length: 180mm
  • Weight: 9g
