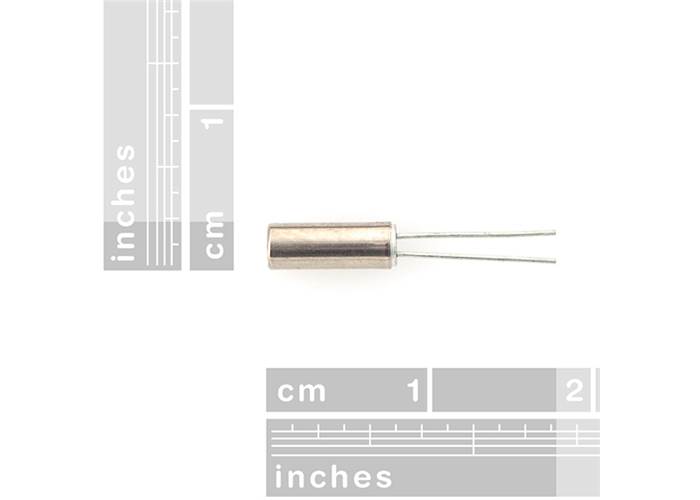

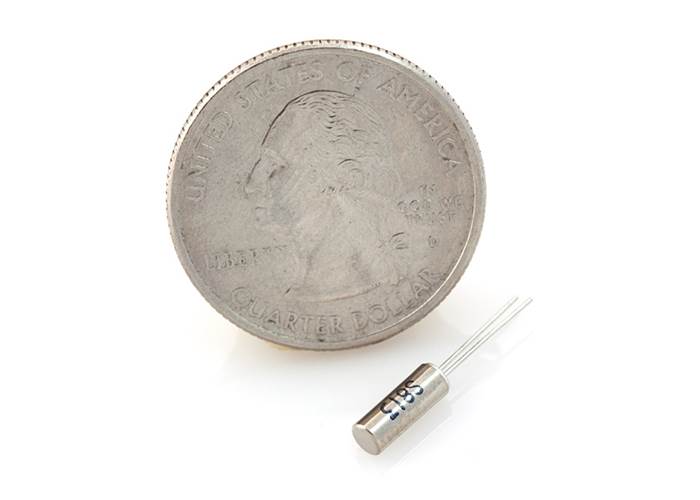

Crystal 32kHz

Standard ‘Watch’ or Real-Time-Clock crystal. 32.768kHz means it is precisely half of a 16-bit counter. Start counting at 0x8000 (or 32768). When the counter rolls over from 65535 to 0, then you know that exactly one second has passed.

AUD$ 1.35

Special Order

Shipping from $2.90

+868 more from our supplier in 7-10 days

Our Code: SKU-000077

Supplier Link: [SparkFun MPN:540]


Description

Standard ‘Watch’ or Real-Time-Clock crystal. 32.768kHz means it is precisely half of a 16-bit counter. Start counting at 0x8000 (or 32768). When the counter rolls over from 65535 to 0, then you know that exactly one second has passed. Reset the interrupt, reset the counter, and start counting again! Rated at 12.5pF load capacitance, 35K ohm max (18K ohm typical) series resistance, and +/- 20ppm stability. Small cylinder package.
