Add connectors to your micro metal gearmotors with these boards that feature side-entry, 2-pin male JST SH-type connectors . These boards are compatible with all of the single-shaft micro metal gearmotors we carry, including the HPCB versions. This product is a 10-pack of connector adaptor boards.
Special Order
Shipping from $2.90
+3 more from our supplier in 7-10 days
Our Code: SKU-010771
Supplier Link: [Pololu MPN:5099]
These adaptor boards let you add connectors to your single-shaft micro metal gearmotors (not compatible with motors with extended back shaft). They are available with two connector orientation options—back-entry, which is parallel to the motor, and side-entry, which is perpendicular to the motor—and in different pack quantities.

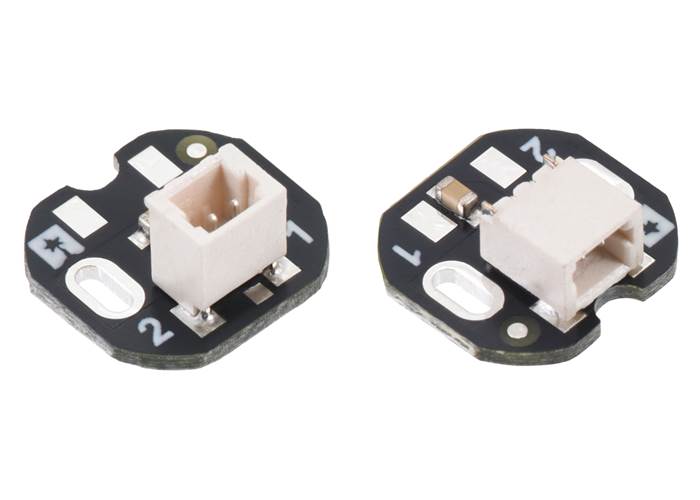

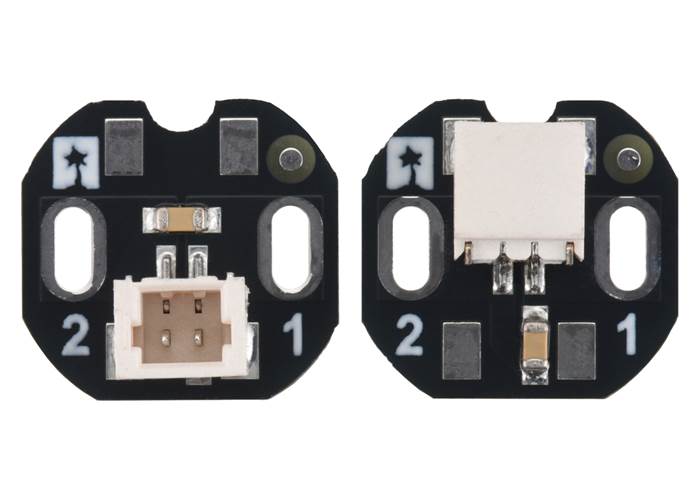

JST SH-Style Connector Boards for Micro Metal Gearmotors (Back-Entry version on left, Side-Entry version on right).
JST SH-Style Connector Boards for Micro Metal Gearmotors (Back-Entry version on left, Side-Entry version on right). (1)
The board mounts to the micro metal motor by soldering the motor terminals to the board slots. When mounted, the board fits entirely within the cross section of the motor.
|

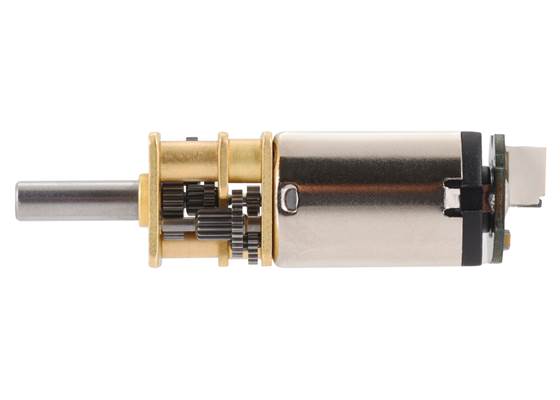

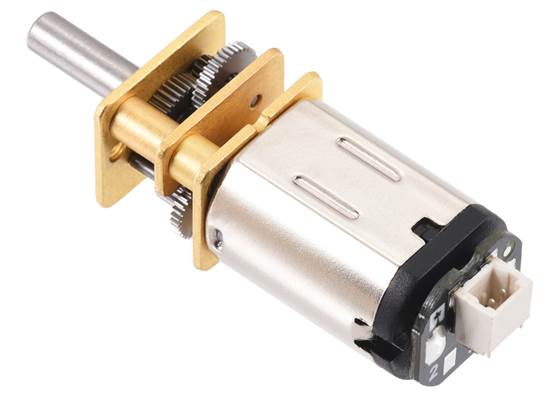

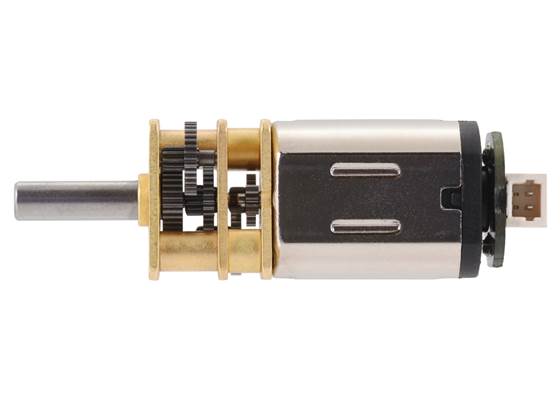

Micro Metal Gearmotor with Side-Entry, 2-Pin JST SH-Style Connector Board. |
The connectors are 2-pin male JST SH-style and work with commonly available 2-pin female JST SH-style cables (we will be adding some to our catalogue soon). Connector pin 1 connects to the motor terminal slot marked 1.
|

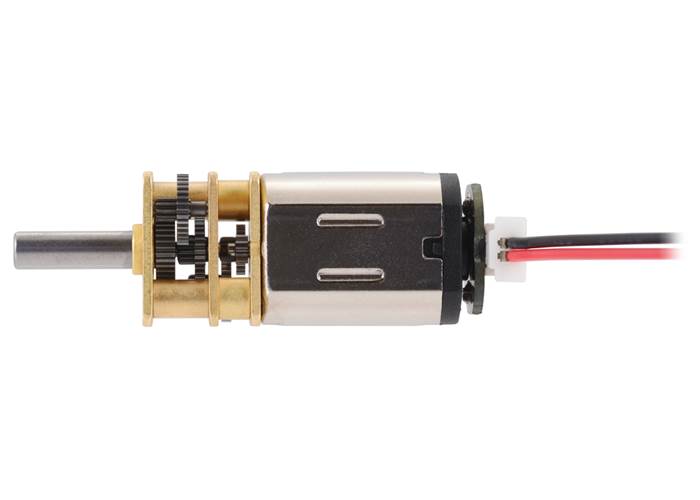

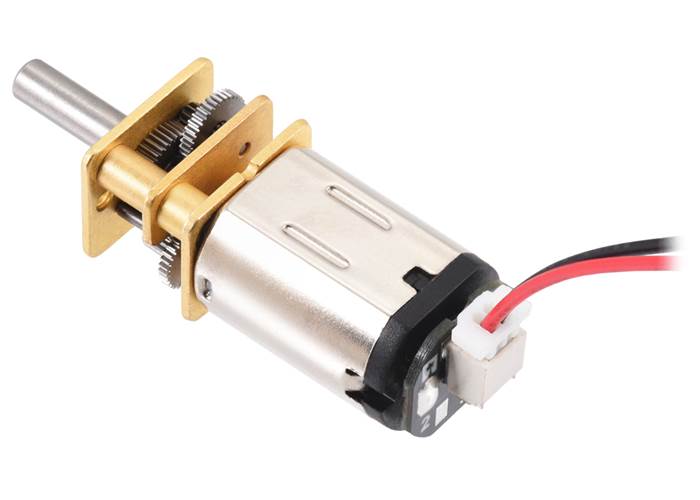

Micro Metal Gearmotor with Side-Entry, 2-Pin JST SH-Style Connector Board and cable (cable not include). (2) (2) |
|
|

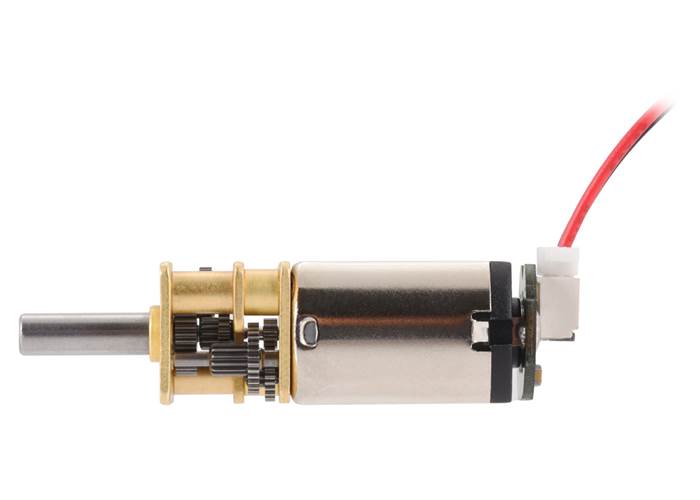

Micro Metal Gearmotor with Side-Entry, 2-Pin JST SH-Style Connector Board and cable (cable not include). (1) |

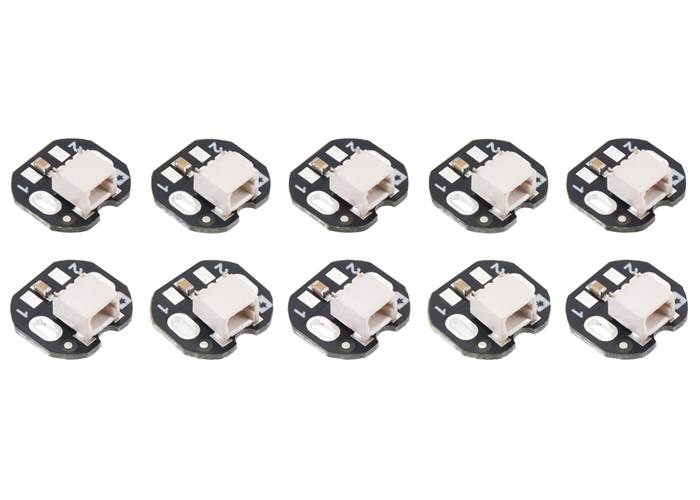

This product is a ten-pack of side-entry connector boards:

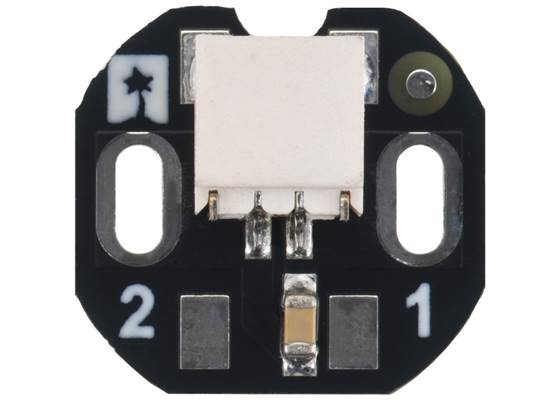

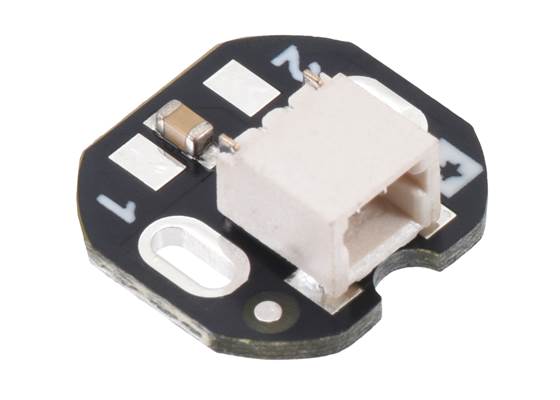

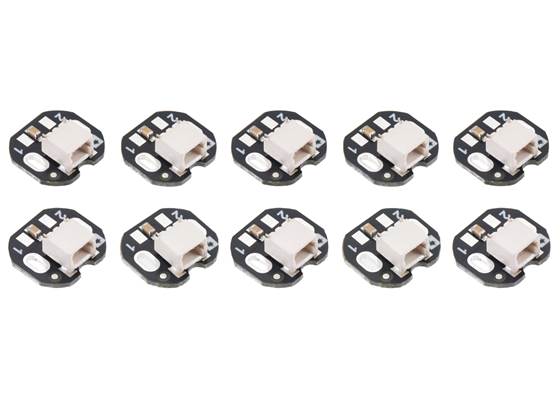

JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Side-Entry (10-Pack).

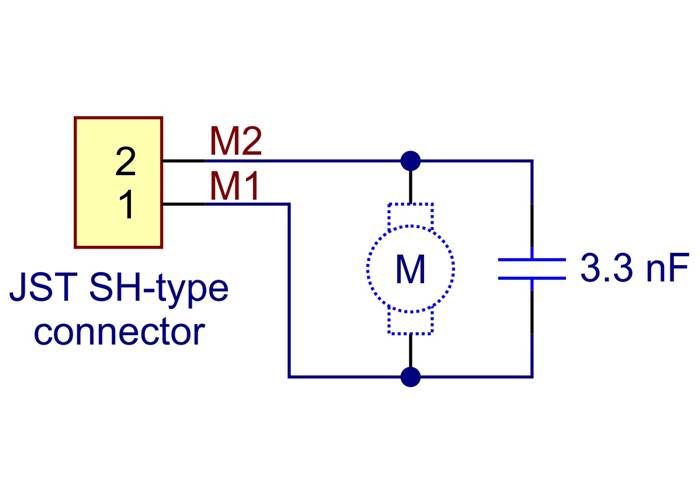

Schematic diagram of the JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Back-Entry/Side-Entry.

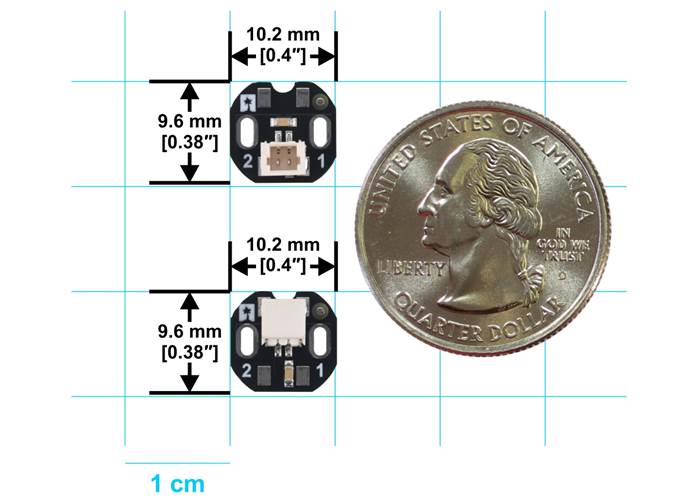

Basic dimensions of the JST SH-Style Connector Boards for Micro Metal Gearmotors.
Detailed dimension diagrams are also available as a downloadable pdf (396k pdf).
| Size: | 10.2 × 9.6 × 5.2 mm |
|---|---|
| Weight: | 0.2 g1 |
| Connector: | side-entry, 2-pin male, JST SH-type |
|---|---|
| Pack quantity: | 10 |

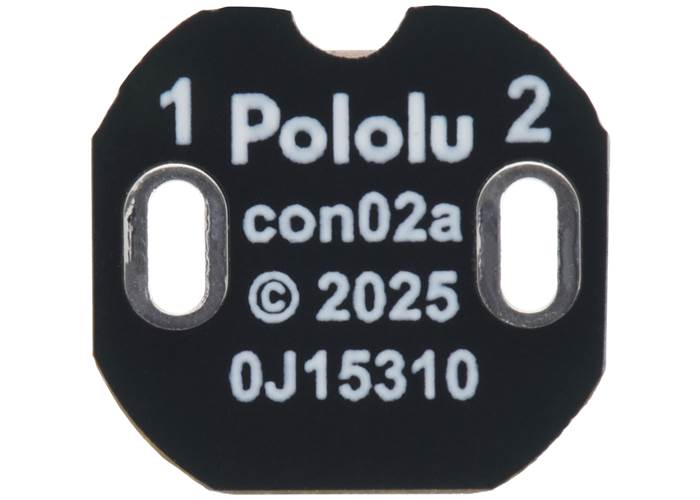

| PCB dev codes: | con02a |
|---|---|
| Other PCB markings: | 0J15310 |
This file contains 3D models (in the step file format) of the for the various versions of the Micro Metal Gearmotors.
This DXF drawing shows the locations of all of the board’s holes.
