Output voltage Typical max output current Input voltage range 1 Size 5 V 500 mA 5.2 V – 65 V 0.3″ × 0.45″ Note 1: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information.
Special Order
Shipping from $2.90
+752 more from our supplier in 7-10 days
Our Code: SKU-010788
Supplier Link: [Pololu MPN:5433]

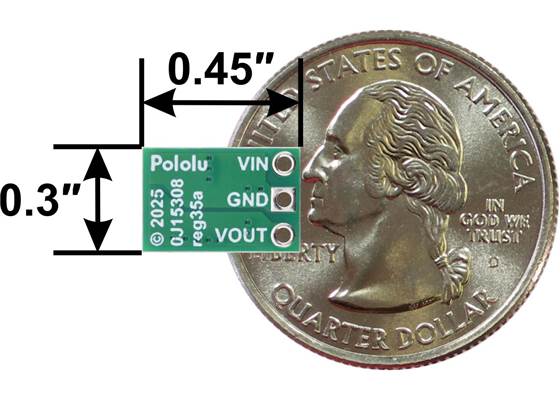

Step-Down Voltage Regulator D45V5Fx, bottom view with dimensions.
The D45V5Fx family of synchronous buck (step-down) voltage regulators generate lower voltages from input voltages as high as 65 V while supporting maximum continuous output currents between 400 mA and 700 mA, depending on the combination of input and output voltage. They are switching regulators (also called switched-mode power supplies (SMPS) or DC-to-DC converters), which makes them much more efficient than linear voltage regulators, especially when the difference between the input and output voltage is large. This family includes five versions with fixed output voltages ranging from 3.3 V to 12 V:
| Regulator | Output voltage | Typical max output current1 | Input voltage range2 | Size | Special features | Price |
|---|---|---|---|---|---|---|
| #5432: D45V5F3 | 3.3 V | 500 mA | 4 V – 65 V | 0.3″ × 0.45″ | Short-circuit protection, thermal shutdown |
$3.75 |
| #5433: D45V5F5 | 5 V | 5.2 V – 65 V | $3.75 | |||
| #5434: D45V5F6 | 6 V | 6.3 V – 65 V | $3.75 | |||
| #5436: D45V5F9 | 9 V | 9.4 V – 65 V | $3.95 | |||
| #5437: D45V5F12 | 12 V | 12.5 V – 65 V | $3.95 | |||
| Note 1: Actual achievable continuous current is a function of input and output voltage and is limited by thermal dissipation. See the output current graphs on the product pages for more information. | ||||||
| Note 2: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information. | ||||||
The regulators feature short circuit protection and thermal shutdown protection, which helps prevent damage from overheating. The boards do not have reverse voltage protection.
We manufacture these boards in-house at our Las Vegas facility, so we can make these regulators with customised components to better meet the needs of your project, such as by customising the output voltage. If you are interested in customisation, please contact us for a quote.
This item is the D45V5F5, which outputs a fixed 5 V.

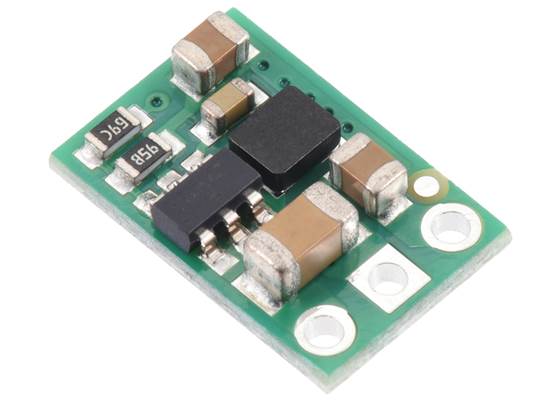

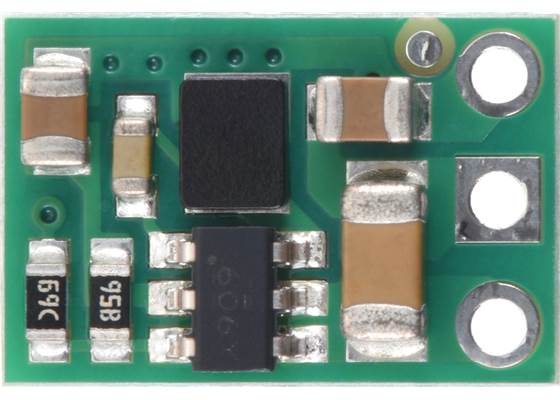

5V, 500mA Step-Down Voltage Regulator D45V5F5. |

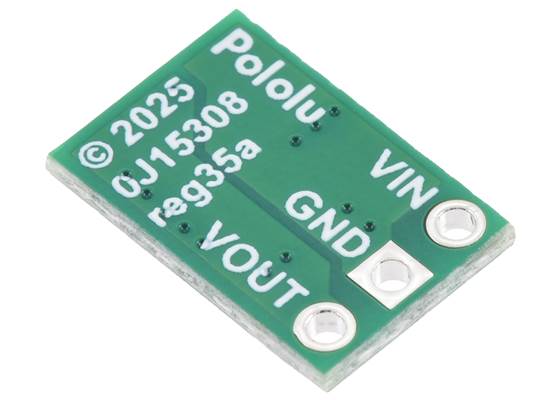

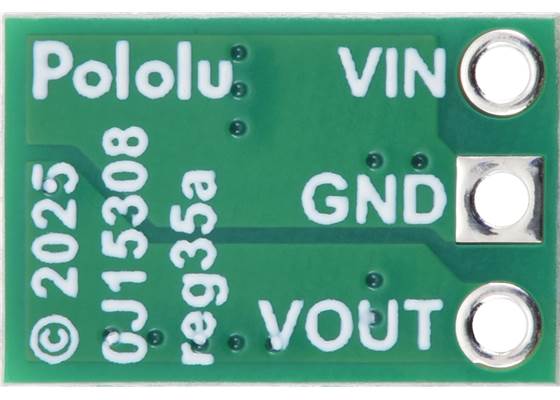

Step-Down Voltage Regulator D45V5Fx, bottom view. |
 |

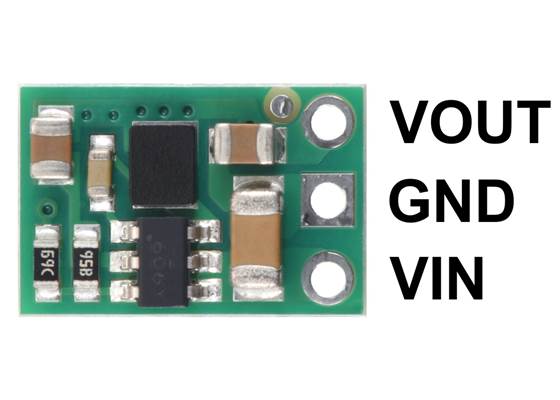

This regulator has three connections: input voltage (VIN), ground (GND), and output voltage (VOUT).
The input voltage, VIN, powers the regulator. Voltages between 4 V and 65 V can be applied to VIN, but generally the effective lower limit of VIN is VOUT plus the regulator’s dropout voltage, which varies approximately linearly with the load (see below for graphs of the dropout voltage as a function of the load). Additionally, please be wary of destructive LC spikes (see below for more information).
VOUT is the regulated output voltage.
The three connections are labelled on the back side of the PCB and are arranged with a 0.1″ spacing along the edge of the board for compatibility with solderless breadboards, connectors, and other prototyping arrangements that use a 0.1″ grid. You can solder wires or 0.1″ header pins directly to the board. Note: header pins are not included with this product, but straight male header strips and right-angle male header strip are available separately.

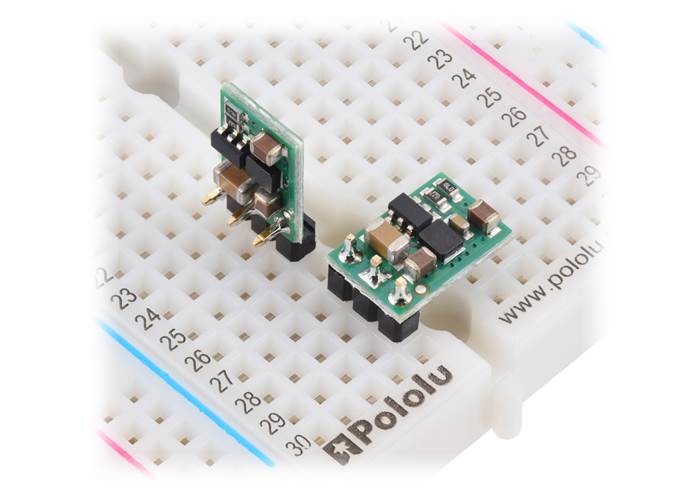

D45V5Fx step-down voltage regulators, soldered with straight and right-angle headers (not included), on a breadboard.

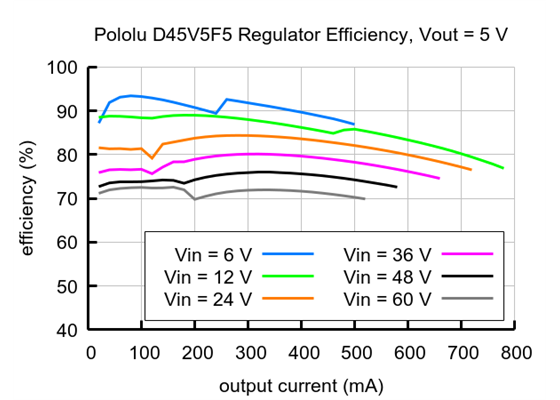

The efficiency of a voltage regulator, defined as (Power out)/(Power in), is an important measure of its performance, especially when battery life or heat are concerns.
 |

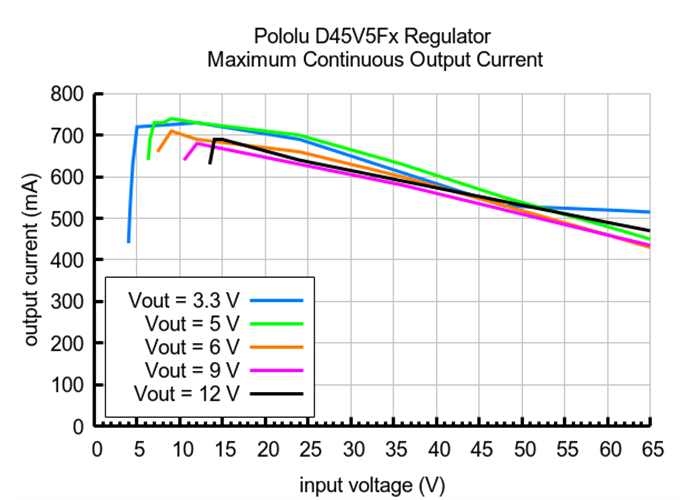

The maximum achievable output current of these regulators varies with the input voltage but also depends on other factors, including the ambient temperature, air flow, and heat sinking. The graph below shows maximum output currents that these regulators can deliver continuously at room temperature in still air and without additional heat sinking.
 |

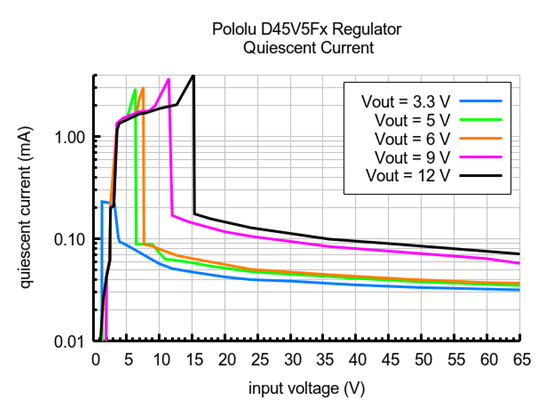

The quiescent current is the current the regulator uses just to power itself, and the graph below shows this for the different regulator versions as a function of the input voltage.
 |

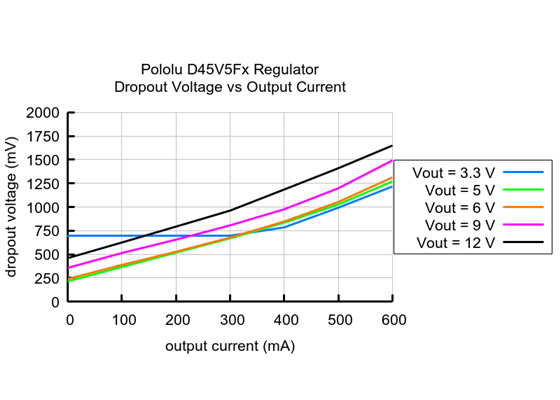

The dropout voltage of a step-down regulator is the minimum amount by which the input voltage must exceed the regulator’s target output voltage in order to ensure the target output can be achieved. For example, if a 5 V regulator has a 1 V dropout voltage, the input must be at least 6 V to ensure the output is the full 5 V. Generally speaking, the dropout voltage increases as the output current increases. The graph below shows the dropout voltages for the different members of this regulator family:
 |
When connecting voltage to electronic circuits, the initial rush of current can cause voltage spikes that are much higher than the input voltage. If these spikes exceed the regulator’s maximum voltage (65 V), the regulator can be destroyed. In our tests with typical power leads (36″/1m test clips), we observed spikes approaching 65 V at input voltages around 30 V.
If you are connecting more than 30 V or your power leads or supply has high inductance, we recommend soldering a suitably rated 33 μF or larger electrolytic capacitor close to the regulator between VIN and GND.
More information about LC spikes can be found in our application note, Understanding Destructive LC Voltage Spikes.
| Size: | 0.3″ × 0.45″ × 0.11″ |
|---|---|
| Weight: | 0.4 g |
| Minimum operating voltage: | 5.2 V1 |
|---|---|
| Maximum operating voltage: | 65 V |
| Maximum output current: | 550 mA2 |
| Output voltage: | 5 V |
| Reverse voltage protection?: | N |
| Maximum quiescent current: | 4 mA3 |
| Output type: | fixed 5V |
| PCB dev codes: | reg35a |
|---|---|
| Other PCB markings: | 0J15308 |
This DXF drawing shows the locations of all of the board’s holes.
