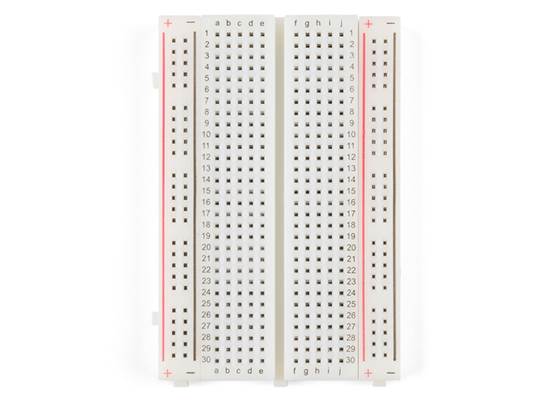

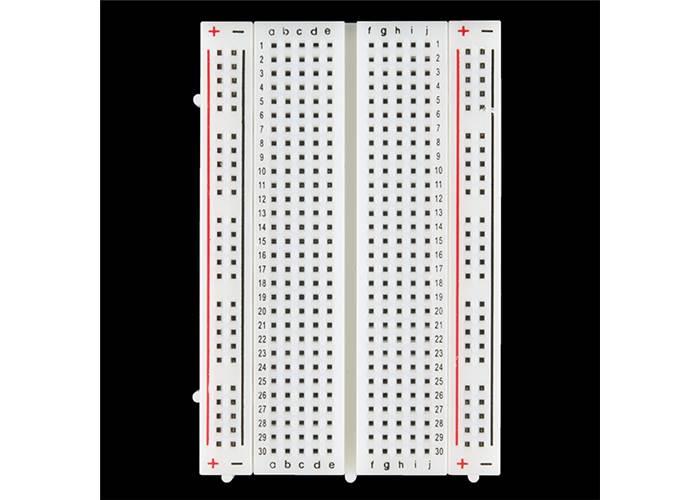

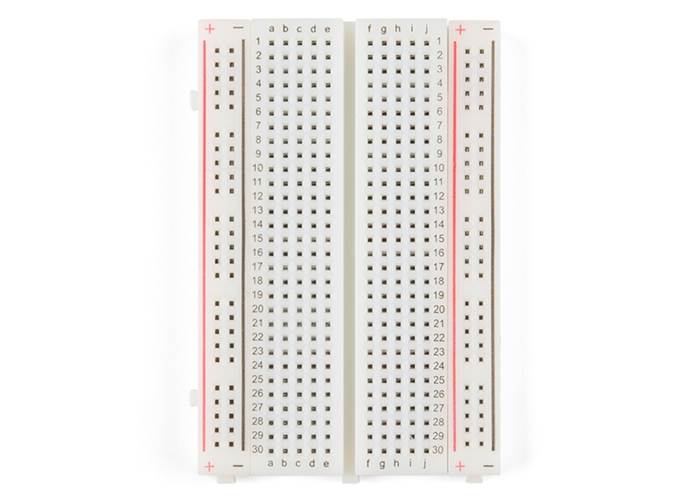

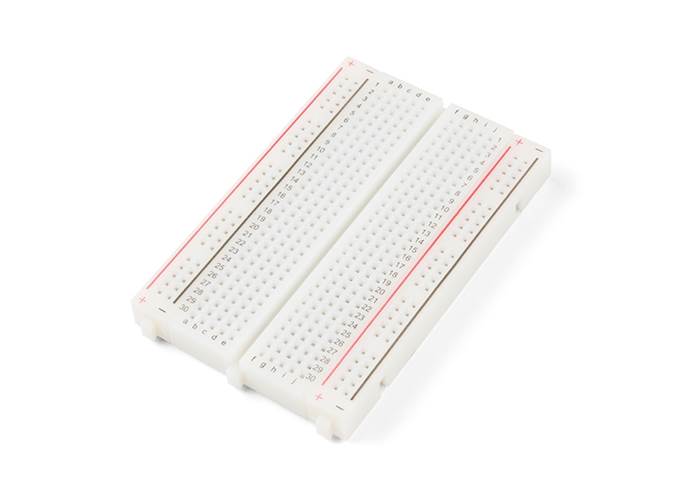

Breadboard - Self-Adhesive (White)

This is your tried and true white solderless breadboard. It has 2 power buses, 10 columns, and 30 rows - a total of 400 tie in points. All pins are spaced by a standard 0.1". The two sets of five columns are separated by about 0.3", perfect for straddling a DIP package over.

AUD$ 7.95

In stock in Australia

Shipping from $2.90

Our Code: SKU-001230

Supplier Link: [SparkFun MPN:12002]


Description

This is your tried and true white solderless breadboard. It has 2 power buses, 10 columns, and 30 rows - a total of 400 tie in points. All pins are spaced by a standard 0.1". The two sets of five columns are separated by about 0.3", perfect for straddling a DIP package over. The board accepts wire sizes in the range of 29-20AWG.

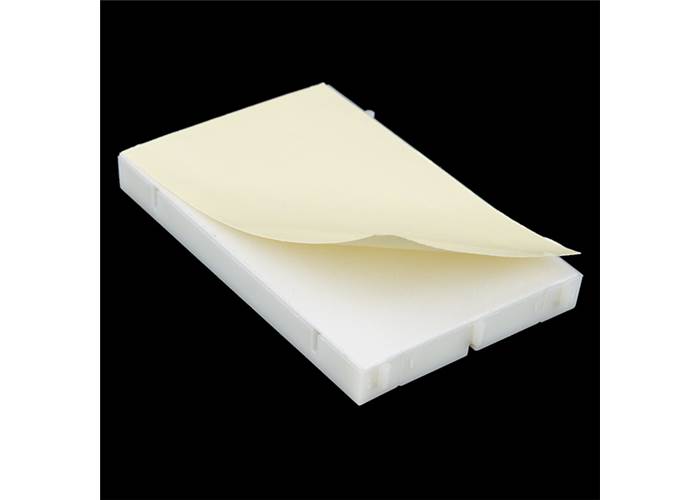

This board also has a self-adhesive on the back. The boards also have interlocking parts, so you can hook as many together as you’d like.

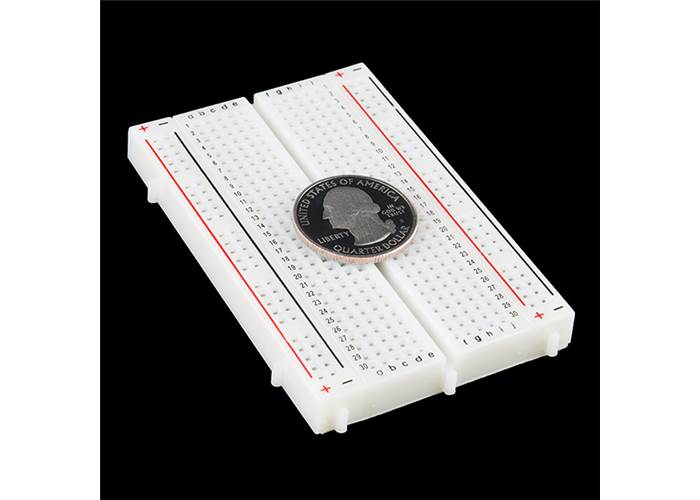

Dimensions: 3.29 x 2.15 x 0.33" (83.5 x 54.5 x 8.5mm)
