Hobby Gearmotor - 200 RPM (Pair)

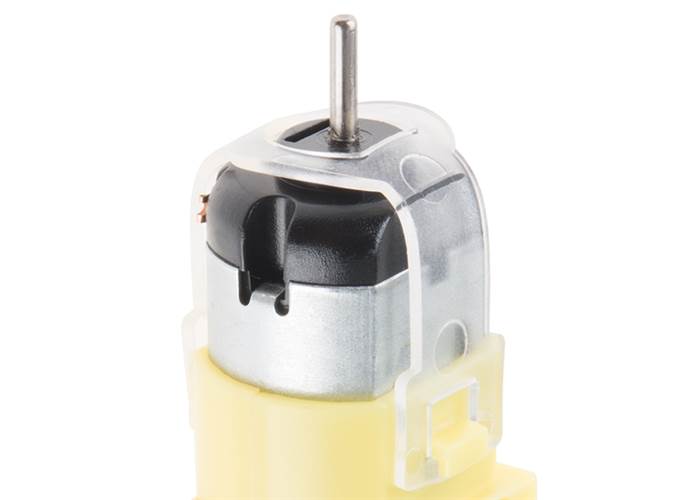

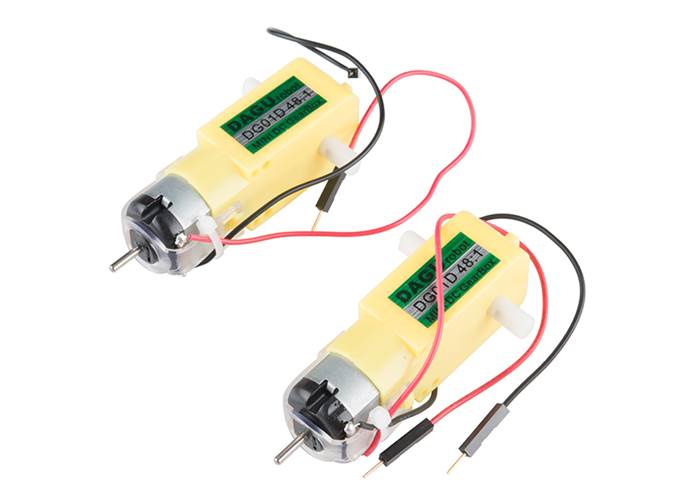

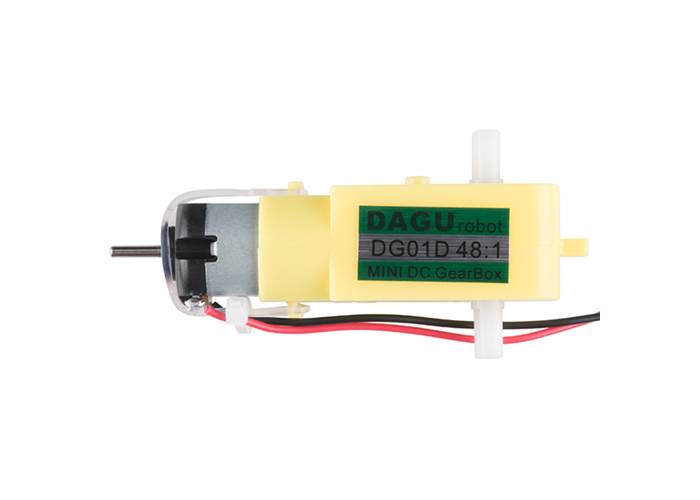

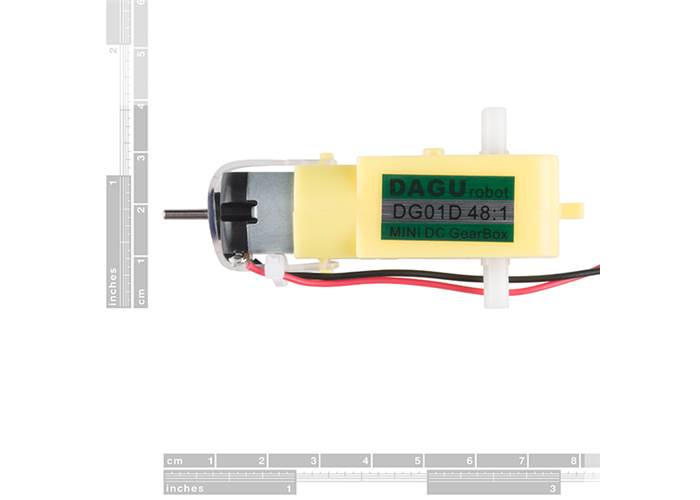

These are a pair of hobby gearmotors from DAGU. These gearmotors are the same ones recommended for use in the Shadow Chassis and offer a cheap and easy-to-use setup to get your wheels turning. Each Hobby Gearmotor also possess a 9mm long output on a straight axis.

AUD$ 8.95

In stock in Australia

Shipping from $7.90

+2098 more from our supplier in 7-10 days

Our Code: SKU-002131

Supplier Link: [SparkFun MPN:13302]


Description

These are a pair of hobby gearmotors from DAGU. These gearmotors are the same ones recommended for use in the Shadow Chassis and offer a cheap and easy-to-use setup to get your wheels turning. Each Hobby Gearmotor also possess a 9mm long output on a straight axis.

These gearmotors require a voltage of 4.5V with a no load current of 190mA while possessing a gearbox ratio of 48:1 and a wheel speed of 140 RPM unloaded.

Every motor order is sold in packs of two.

Note: The RPM listed in the datasheet below is listed as 90RPM. Based on our own testing we found the gearmotors can actually achieve a No Load Speed of about 140 RPM.

These gearboxes fit nicely with our plastic & rubber wheels and we also stock plastic gearmotor brackets to fit.


Specifications

  • Suggested Voltage: 4.5VDC
  • No Load Speed: 140RPM
  • No Load Current: 190mA
  • Max. Load Current: 250mA
  • Torque: 800 gf-cm
