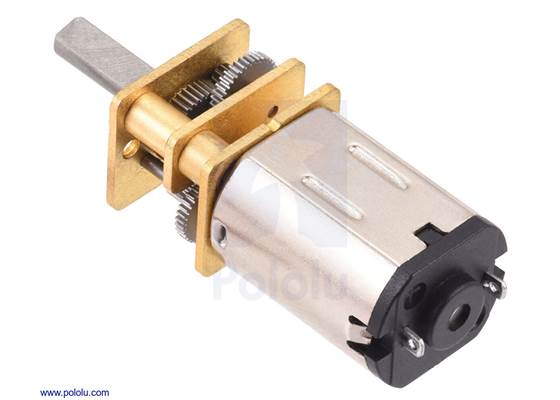

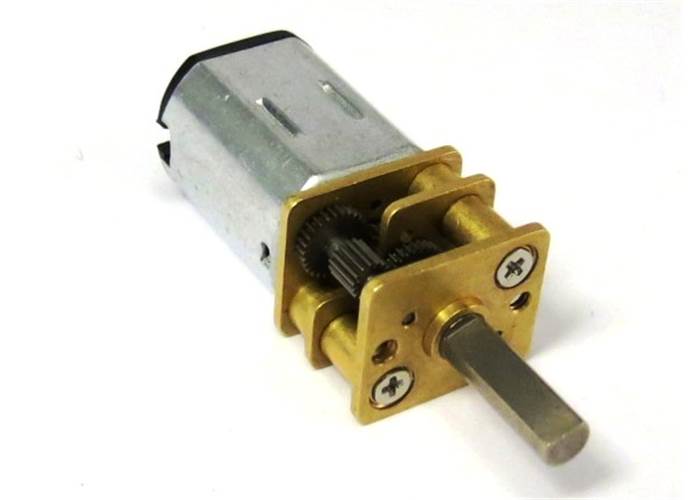

This high quality, low current miniature 6V gear motor has a 30:1 gear ratio and is similar to Sanyo's popular 12mm gearmotors. The 3mm D-shaped output shaft is 9.3mm long to enable press fitting to many different wheels. At 6V the motor operates at 440RPM, 40mA free-run, 4 oz-in (0.3kg-cm) torque and 0.36A stall.
In stock in Australia
Shipping from $2.90
+332 more from our supplier in 7-10 days
Our Code: MEC-30019
Supplier Link: [Pololu MPN:993]
Designed for operation at 6V the motor is suitable over a range of about 3-9V beyond which the performance or motor life may degrade.
The low current motor produces a shaft speed of 440RPM and draws 40mA at free-run and 0.36A at stall at 6V. The maximum torque is 4oz-in (0.3kg-cm).

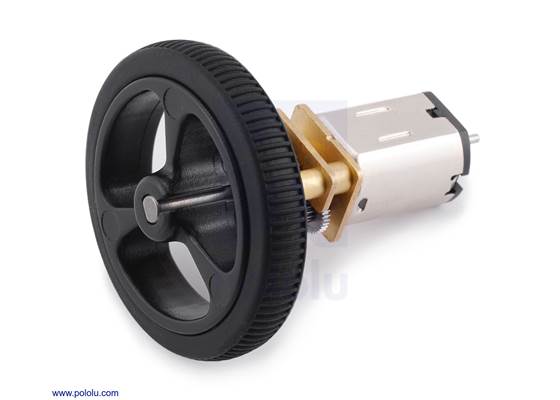

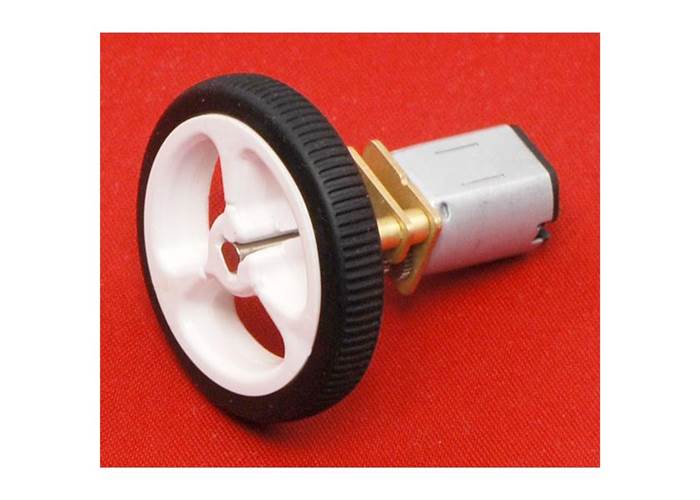

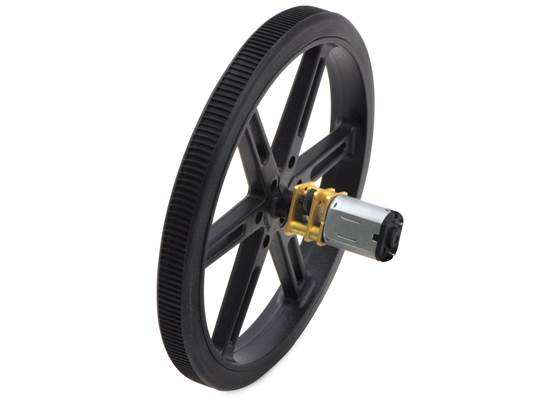

The 3mm diameter output shaft is longer than many other similar motors at 9.3mm and is D shaped to fit many wheels including our 32x7mm and 42x19mm wheels.

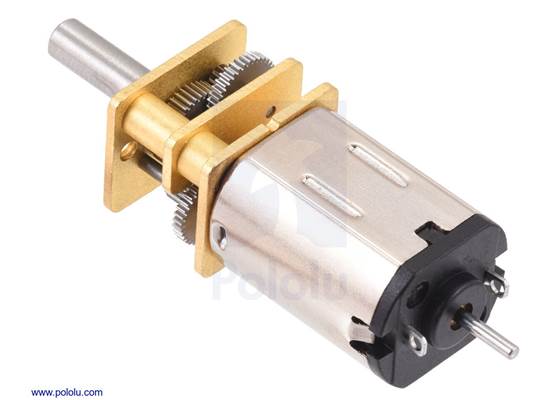

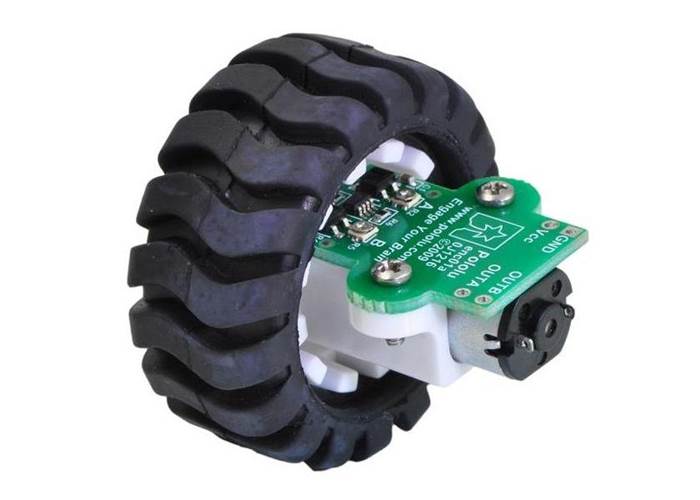

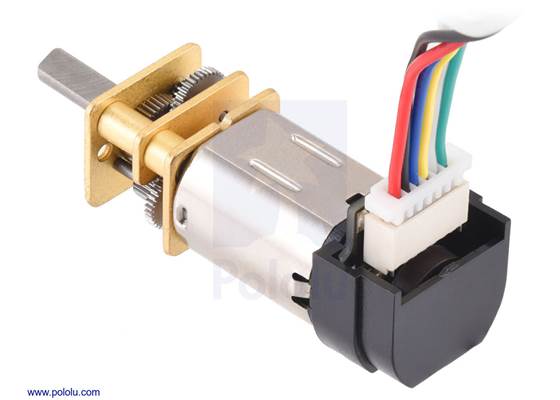

The motor is suitable for use with the Pololu quadrature encoder when teamed with the 42x19mm wheel and extended mounting brackets.

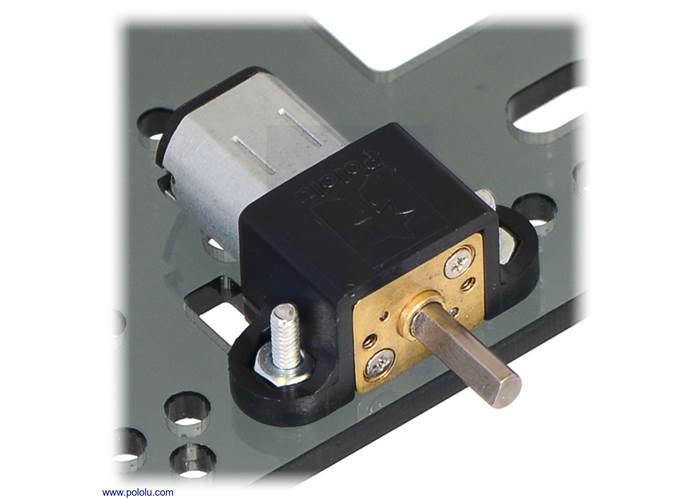

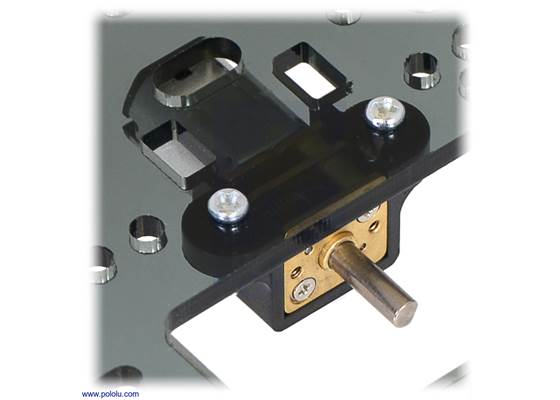

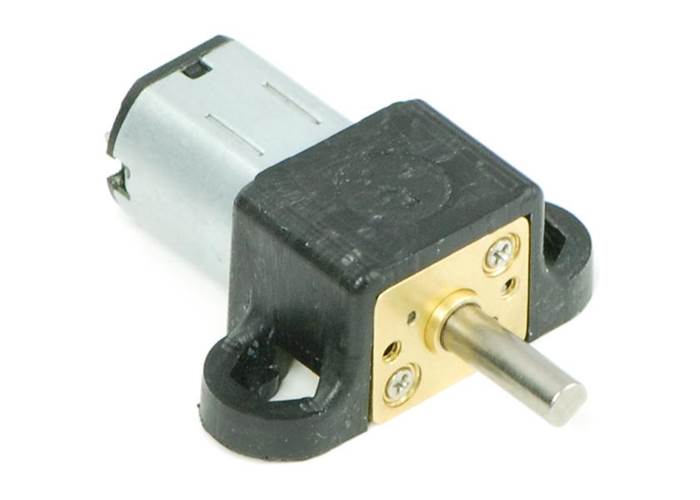

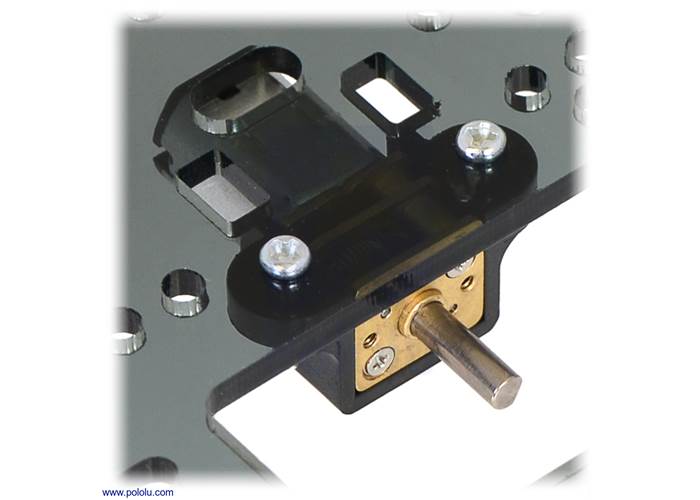

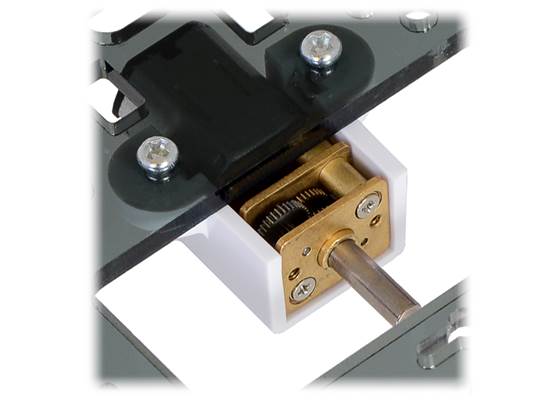

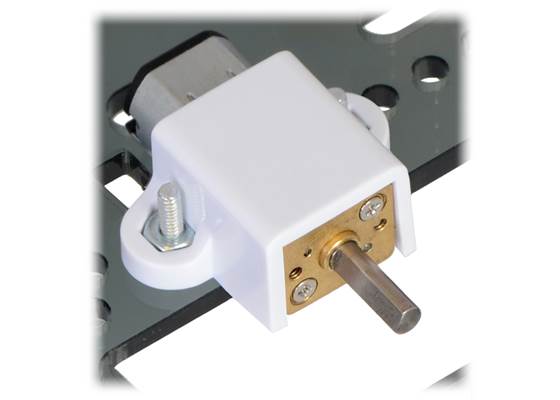

Two M1.6 screw holes are available on the face plate of the motor to mount the motor on the inside of a chassis or alternatively the micro metal gearmotor mounting bracket or extended micro metal gearmotor mounting bracket can be used.
| Size | 24 x 10 x 12 mm |
| Weight | 0.34oz / 9.6g |
| Gear Ratio | 30:1 |
| Shaft | 3mm Ø, 9.6mm length, D shaft |
| Free-run speed @ 6V | 440RPM |
| Free-run current @6V | 40mA |
| Stall current @6V | 360mA |
| Stall torque @6V | 4oz-in / 0.3kg-cm |

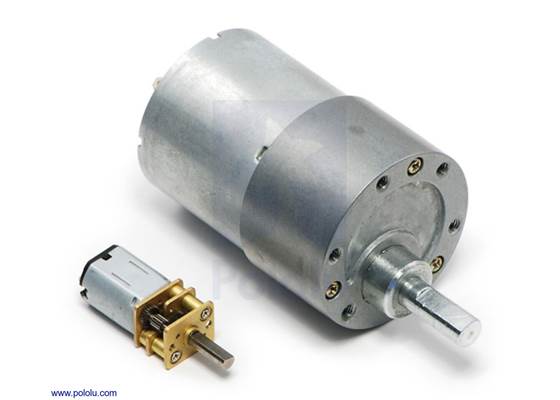

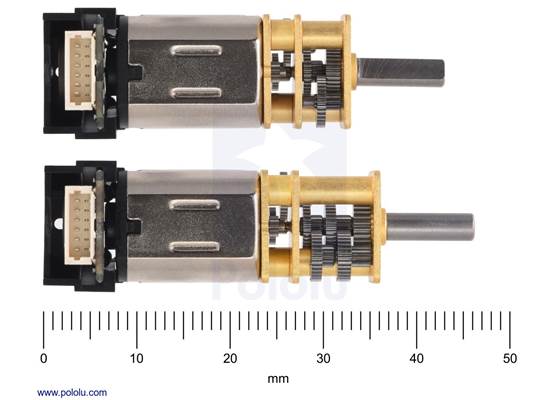

All the micro metal gear motors have the same dimensions but vary in gear ratios and motor power.

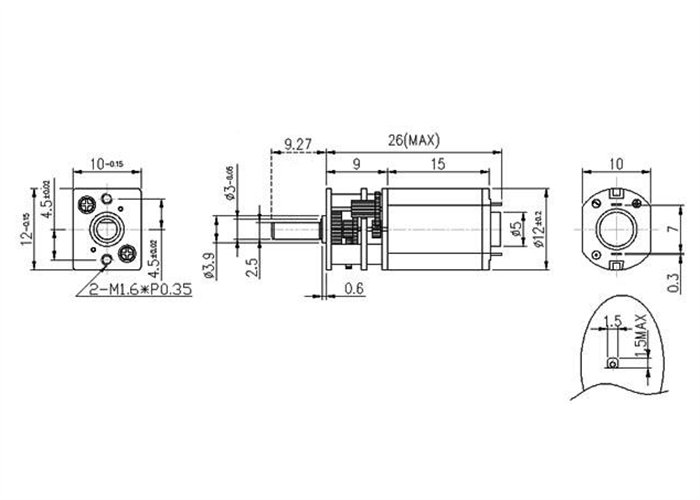

Micro metal gearmotor dimensions (in mm)
