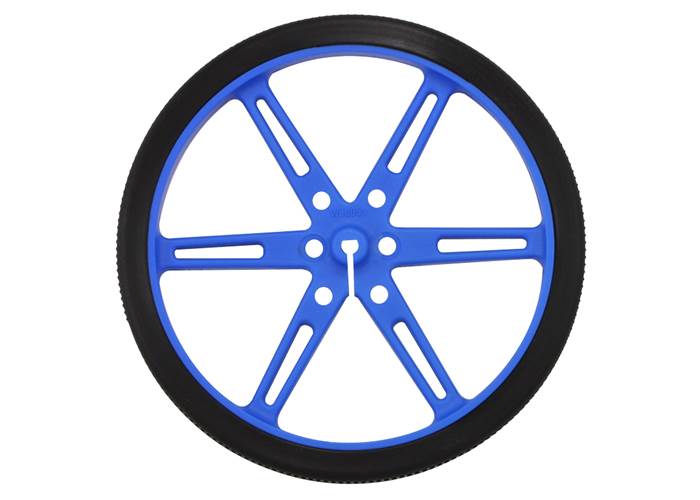

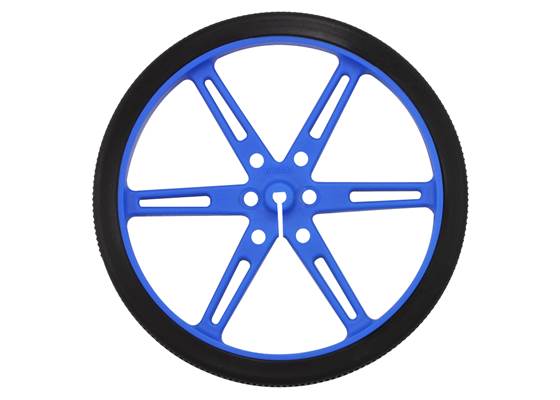

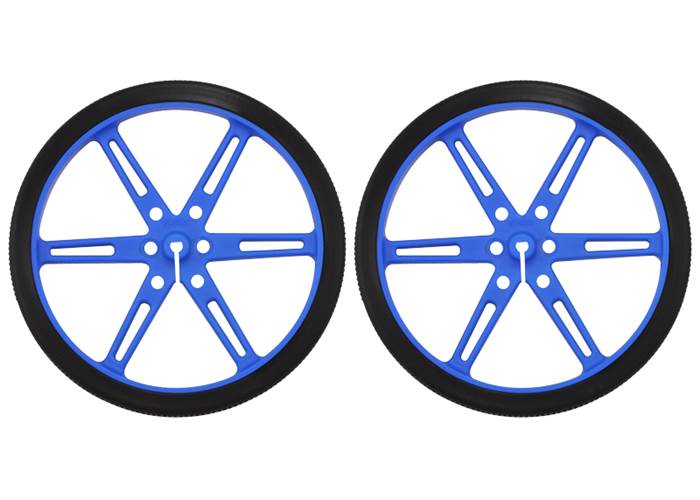

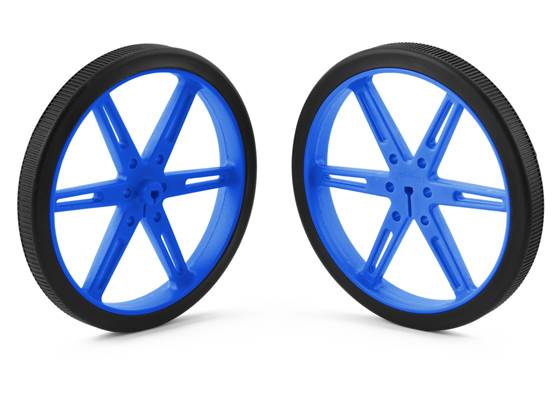

These blue plastic wheels press-fit onto the 3mm D shafts on many of our motors, including our micro metal gearmotors and our mini plastic gearmotors , to make a nice drive solution for small robots. The wheels have silicone tires and measure 80 mm (3.15″) in diameter.
Special Order
Shipping from $7.90
+349 more from our supplier in 7-10 days
Our Code: SKU-002593
Supplier Link: [Pololu MPN:1433]

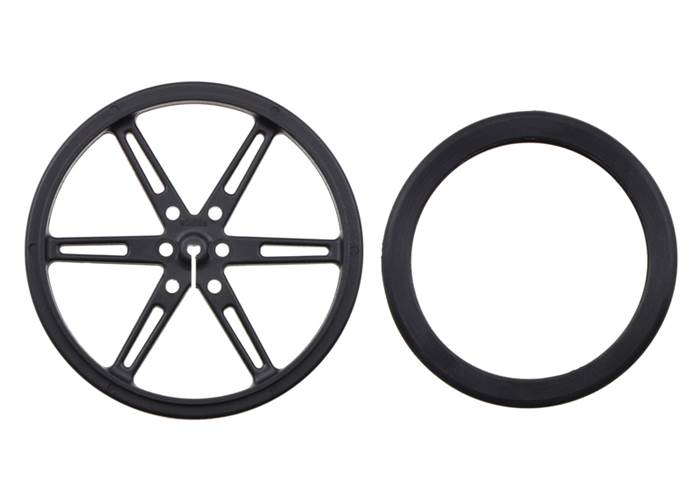

80x10mm wheel with tire removed
These wheels are designed to press-fit securely onto the 3mm D output shafts on many of our gearmotors, including our micro metal gearmotors and our mini plastic gearmotors. They also work with our 35:1 and 115:1 15.5D metal gearmotors, as well as with our selection of Solarbotics metal gear motors. The wheels have silicone tires and measure 80 mm (3.15″) in diameter. Six additional mounting holes for 4-40 screws make it possible to use the wheel with any of our universal mounting hubs. The slots in the six spokes allow additional accessories to be mounted to the wheel (e.g. decorations or parts of an encoder system).
Note: These wheels will also work with our high-traction sticky tires.
The left picture below shows a slightly larger version of this wheel mounted to a 37D mm metal gearmotor with a universal mounting hub for 6mm shafts, and the right picture below shows a slightly larger version of this wheel mounted to a micro metal gearmotor.

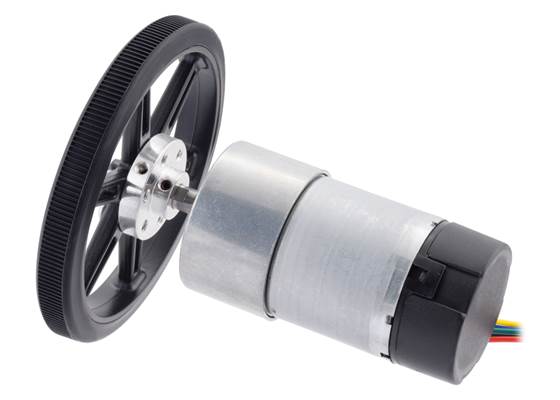

Black Pololu 90x10mm wheel on a Pololu 37D mm metal gearmotor |
Black Pololu 90x10mm wheel on a Pololu micro metal gearmotor |
We have similar wheels available in different sizes and colors:
Select options:

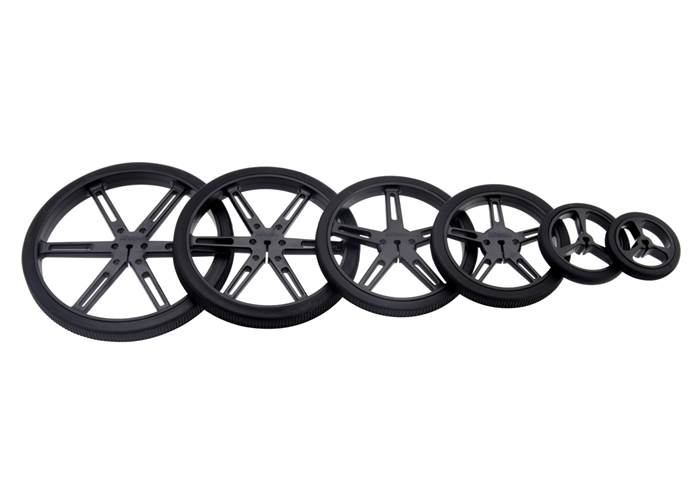

Black Pololu wheels with 90, 80, 70, 60, 40, and 32 mm diameters (other colors available)

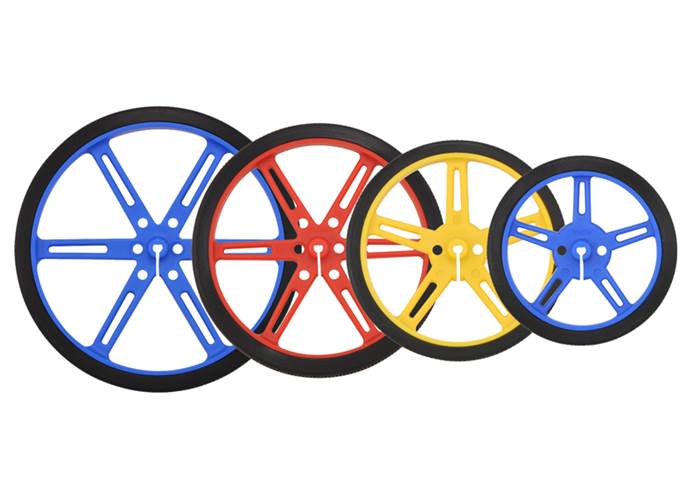

Pololu wheels with 90, 80, 70, and 60mm diameters in three colors: blue, red, and yellow

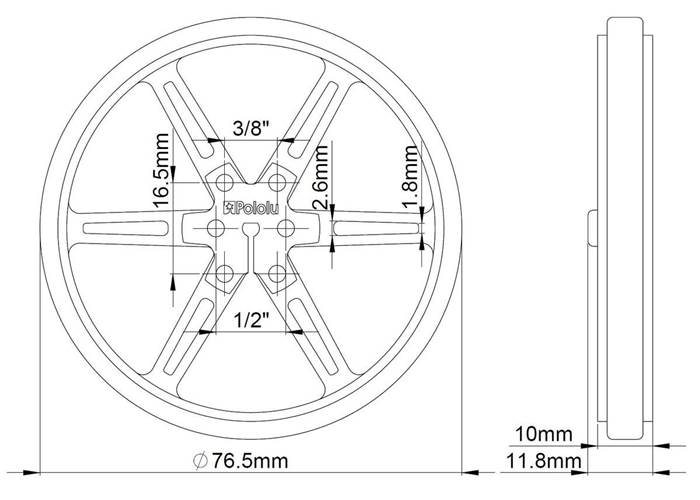

Mechanical drawing of Pololu wheel 80x10mm without tire |
Pololu universal hub for 6mm shaft mounted to Pololu 90x10mm wheel |
| Size: | 80 x 10 mm |
|---|---|
| Weight: | 0.7 oz1 |
| Shaft diameter: | 3 mm2 |
| Colour: | blue |
|---|
