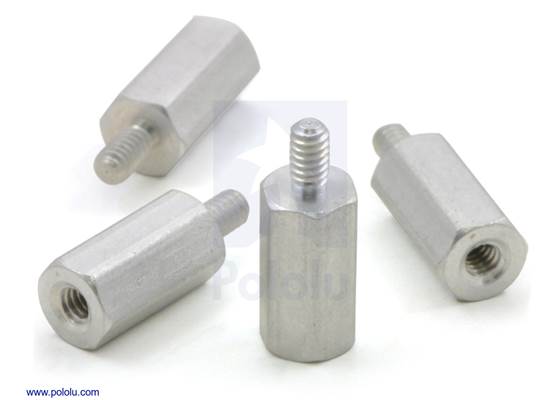

Aluminum Standoff: 3/8" Length, 2-56 Thread, M-F (4-Pack)

These hexagonal male-female aluminium standoffs keep parts spaced 0.375" (10 mm) apart and are great for building a multi-level robot chassis. Both ends of these 3/16" -wide standoffs have 2-56 threads. The standoffs are sold in packs of 4 .

AUD$ 2.65

Special Order

Shipping from $7.90

+628 more from our supplier in 7-10 days

Our Code: SKU-002910

Supplier Link: [Pololu MPN:1941]


Description

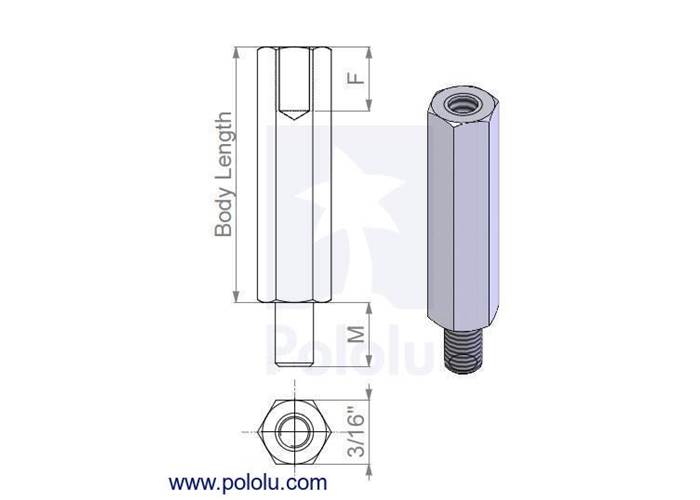

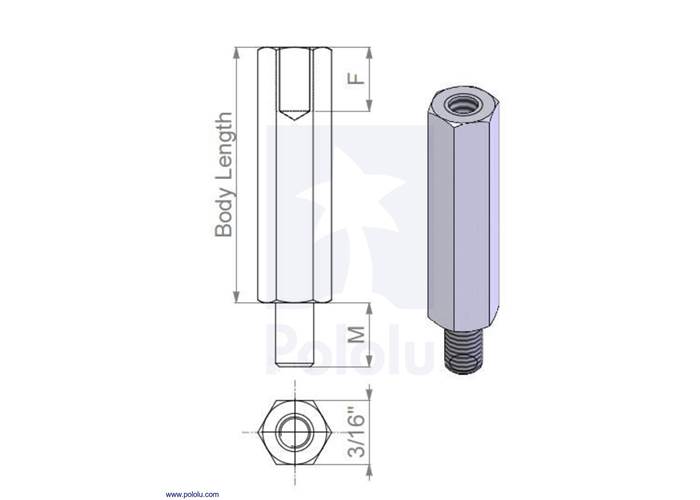

Mechanical drawing of male-female standoff

Overview

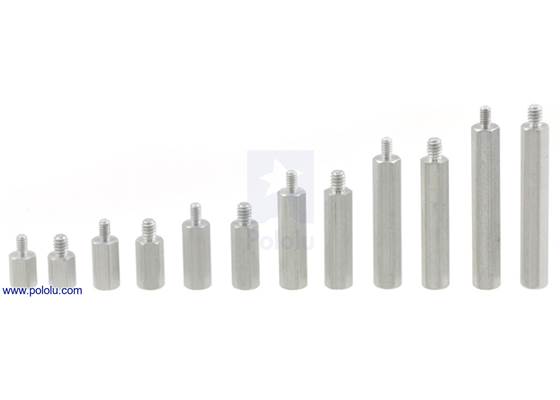

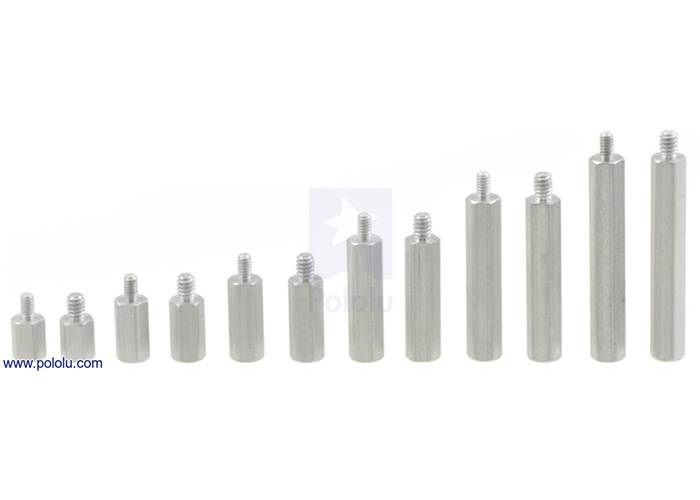

These M-F (male-female) aluminium standoffs are great for separating stacked components or chassis tiers. Each hexagonal standoff is 3/16″ wide with male threading extending 3/16″ to 1/4″ from one end (dimension M on the mechanical drawing to the right) and female threading to a depth of 3/16″ to 1/4″ in the other end (dimension F). A variety of lengths are available with either 2-56 or 4-40 threading:

Select options:

The standoffs can be screwed together to make longer standoffs.

F-F (female-female) standoffs with threading running through the entire length of the body are also available:

Select options:

We carry a variety of 2-56 and 4-40 screws and hex nuts that can be used with these standoffs.


Specifications

Dimensions

Length: 0.375 in

General specifications

Gender: Male-Female
Thread type: 2-56
