Screw Terminal Block: 3-Pin, 5 mm Pitch, Side Entry (4-Pack)

These side-entry screw terminal blocks have a pitch of 5 mm (0.197″) . Each block has three terminals for the stripped ends of 22 – 14 AWG wires, and units can slide together to make longer strips. They are rated for 250 V, 16 A (UL) and ship in packs of four .

AUD$ 3.00

Special Order

Shipping from $7.90

+243 more from our supplier in 7-10 days

Our Code: SKU-003230

Supplier Link: [Pololu MPN:2441]



These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB. The 2-pin and 3-pin units each feature a ridge on one side and a slot on the other, which lets them slide and lock together to form arbitrarily long strips with a pitch of 3.5 mm or 5 mm. Each terminal block is available in two orientations: side-entry and top-entry.

Details for item #2441

This product is a four-pack of 5mm-pitch, three-pin, side-entry terminal blocks. The more general dimension diagram for an XX-pin version of this screw terminal block is shown below.

Screw terminal block: 5 mm pitch, side entry.

  • Voltage rating (UL/IEC): 250/250 V
  • Current rating (UL/IEC): 16/24 A
  • Contact resistance: 20 mΩ
  • Wire gauge: 22-14 AWG
  • Wire strip length: 5 mm

Other terminal block options

We carry several different sizes and styles of terminal blocks in addition to these stackable screw terminal blocks; the picture below shows a side-by-side comparison:

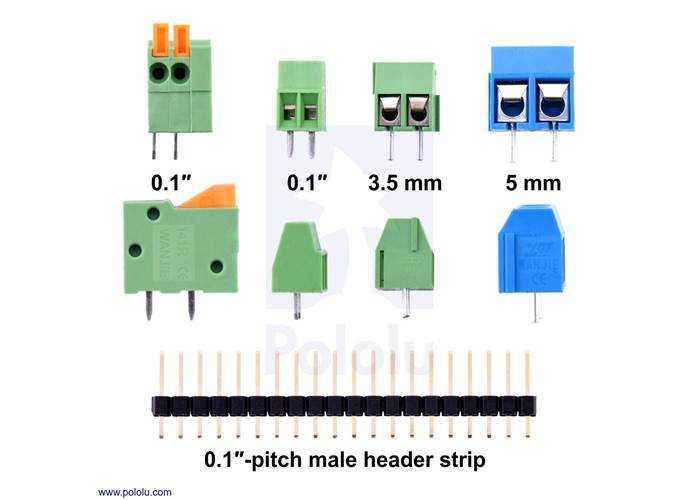

Side-by-side comparison of our different terminal blocks with a 0.1″ male header strip for size reference. From left to right: 0.1″ screwless, 0.1″ screw, 3.5 mm screw, and 5 mm screw

  • Screwless (spring) terminal, available in side- and top-entry orientations with pitches of 0.1″ and 0.2″:
Select options:
  • 0.1″ screw terminal, which can be used in place of standard 0.1″male and female headers on many PCBs; the only available orientation is side-entry:
Select options:



Pins: 3
Spacing: 5 mm

General specifications

Wire gauge: 22-14 AWG
Current rating: 16 A1
Voltage rating: 250 V1
Contact resistance: 20 mΩ
Wire strip length: 5 mm
Terminal type: screw
Orientation: side entry


UL rating.
