These top-entry screw terminal blocks have a pitch of 3.5 mm (0.138″) . Each block has three terminals for the stripped ends of 24 – 18 AWG wires, and units can slide together to make longer strips. They are rated for 125 V, 10 A (UL) and ship in packs of four .
Special Order
Shipping from $7.90
+461 more from our supplier in 7-10 days
Our Code: SKU-003236
Supplier Link: [Pololu MPN:2447]
These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB. The 2-pin and 3-pin units each feature a ridge on one side and a slot on the other, which lets them slide and lock together to form arbitrarily long strips with a pitch of 3.5 mm or 5 mm. Each terminal block is available in two orientations: side-entry and top-entry.

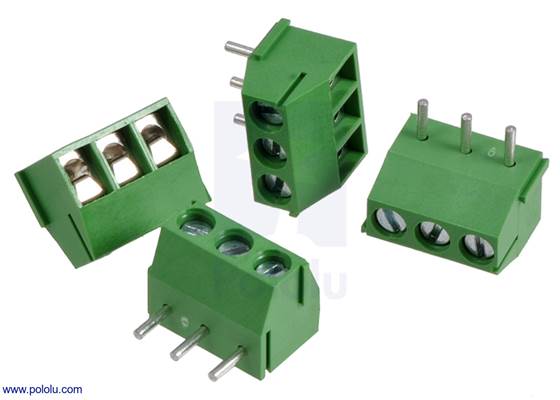

This product is a four-pack of 3.5mm-pitch, three-pin, top-entry terminal blocks. The more general dimension diagram for an XX-pin version of this screw terminal block is shown below.
![]() |
Screw terminal block: 3.5 mm pitch, top entry. |
---|

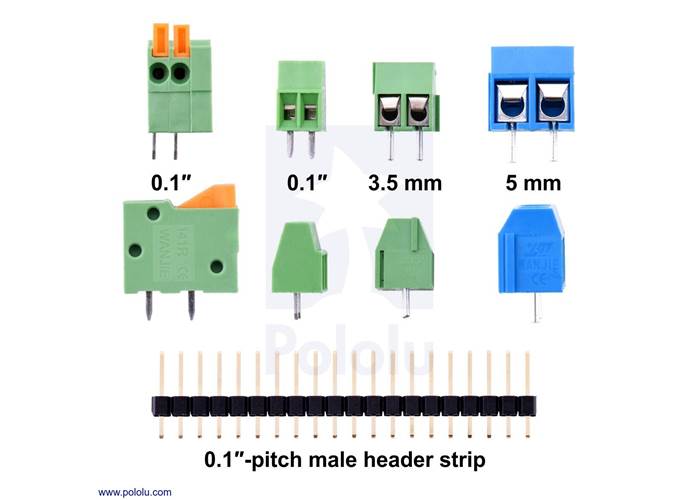

We carry several different sizes and styles of terminal blocks in addition to these stackable screw terminal blocks; the picture below shows a side-by-side comparison:
Side-by-side comparison of our different terminal blocks with a 0.1″ male header strip for size reference. From left to right: 0.1″ screwless, 0.1″ screw, 3.5 mm screw, and 5 mm screw
