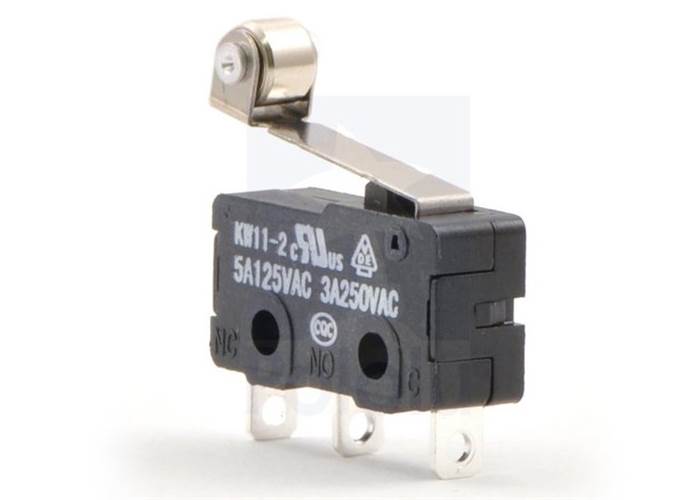

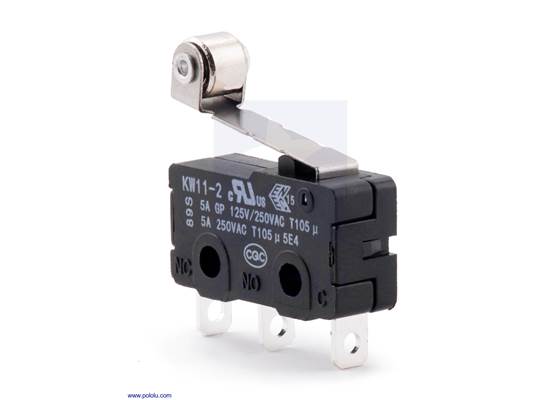

Switch SPDT Snap Action with 16.3mm Roller Lever Arm

This single-pole, double-throw (SPDT) switch can be used as a general-purpose micro switch or tactile bump sensor for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm, and the 16.3mm lever arm is has a roller at the tip.

AUD$ 2.95

In stock in Australia

Shipping from $2.90

+522 more from our supplier in 7-10 days

Our Code: SEN-10021

Supplier Link: [Pololu MPN:1404]


Overview

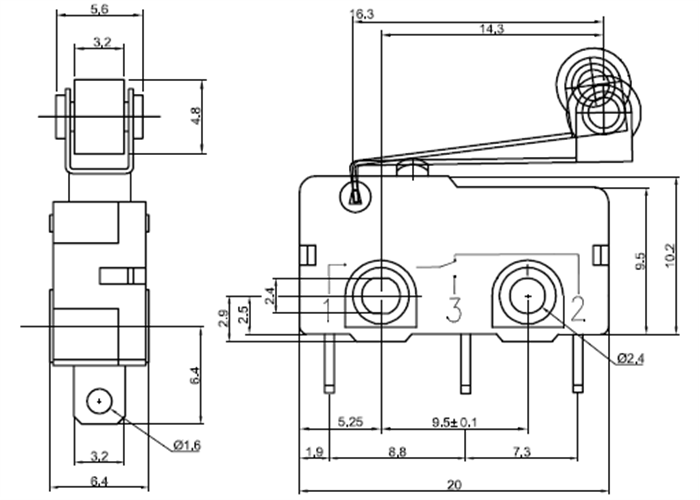

This single-pole, double-throw (SPDT) switch can be used as a general-purpose micro switch or tactile obstacle-detector for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm (0.79" x 0.25" x 0.40"), and the 16.3mm (0.64") lever arm has a roller at the tip. This three-pin switch can also be used as a two-pin single-pole, single-throw (SPST) switch that is open or closed by default, depending on which two pins are used.

Rated at 3A/250V AC , 5A 125V AC
