This ball castor uses a 1″ diameter plastic ball and has an overall height of 1.1″ (29 mm). The two-part housing snaps together to securely enclose the ball and three plastic rollers that reduce the friction between the ball and the ABS housing.
In stock in Australia
Shipping from $7.90
+295 more from our supplier in 7-10 days
Our Code: SKU-003360
Supplier Link: [Pololu MPN:2691]
This ball castor is an improved version of our original Pololu Ball Castor with 1″ Plastic Ball; we recommend this new version over the older version for all applications that are not somehow specifically tied to the previous design.

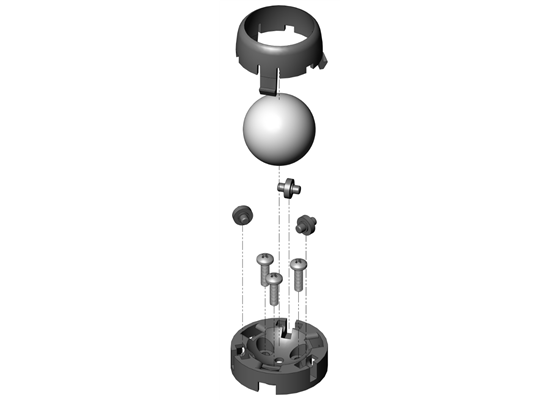

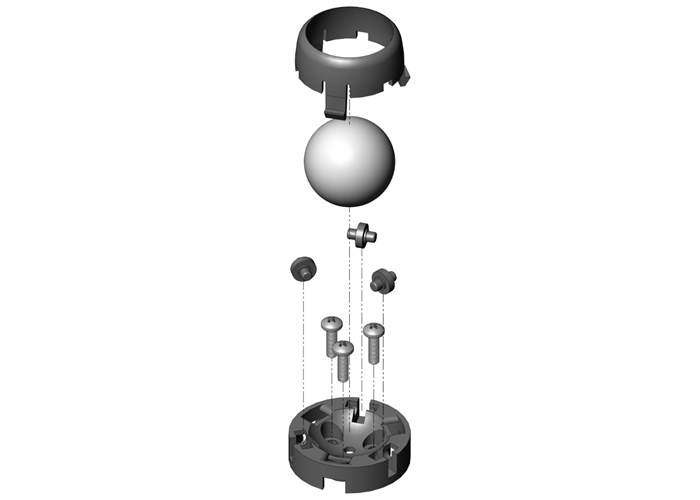

Assembling the Pololu Ball Caster with 1″ Plastic Ball and Plastic Rollers (screws not included)
This ball castor kit includes a two-part black ABS housing, a 1″ diameter POM (also know as acetal or by the brand name Delrin) plastic ball, and three ABS rollers. When assembled, the ball castor is capable of rolling in any direction with low friction, making it suitable for use as a third contact point for wheeled, differential-drive robots weighing up to around ten pounds.

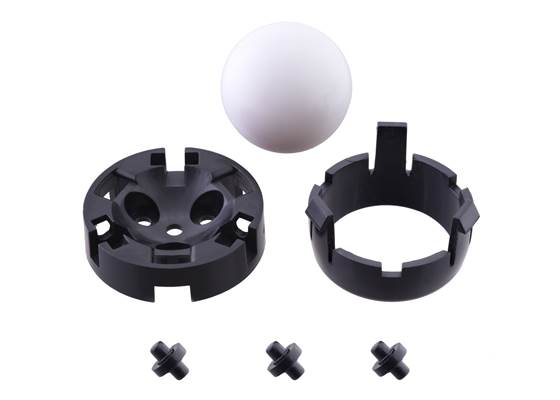

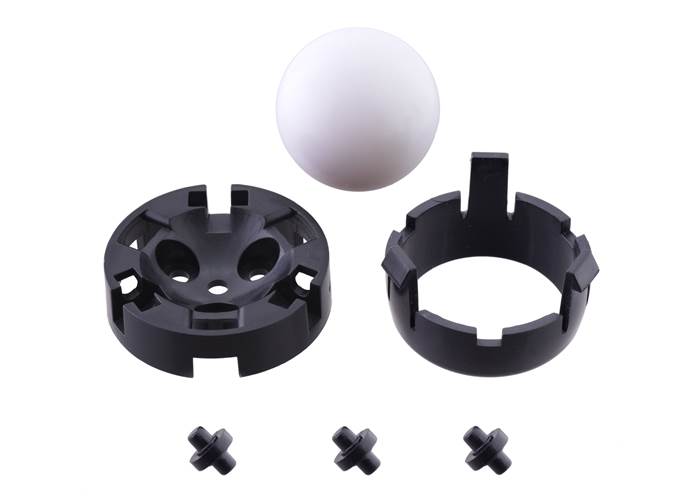

Components of the Pololu Ball Caster with 1″ Plastic Ball and Plastic Rollers: two-part housing, three plastic rollers, and a 1″ plastic ball
The base piece of the housing has holes for three #4 or M3 mounting screws (not included) and slots for the three rollers. The second part of the housing snaps into the base piece to secure the ball and rollers. The assembled ball castor has an overall height of 1.1″ (29 mm).

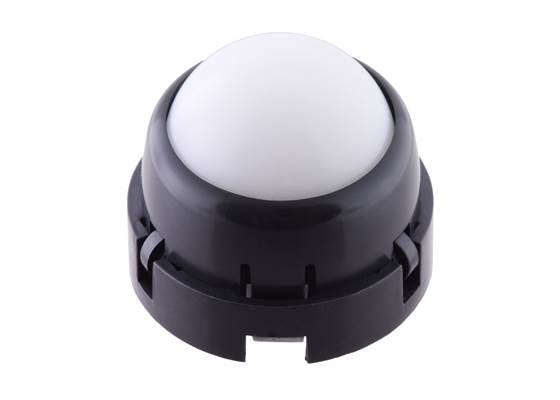

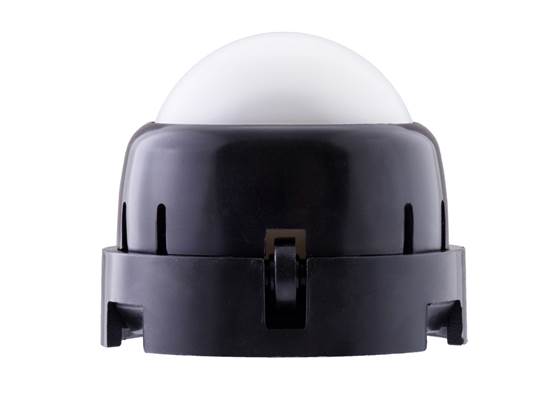

Pololu Ball Caster with 1″ Plastic Ball and Plastic Rollers (1) |

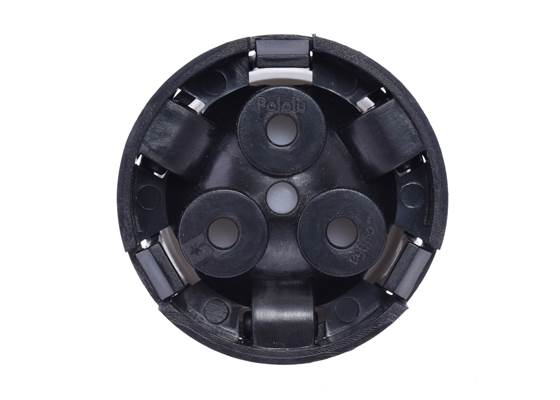

Pololu Ball Caster with 1″ Plastic Ball, mounting-side view |

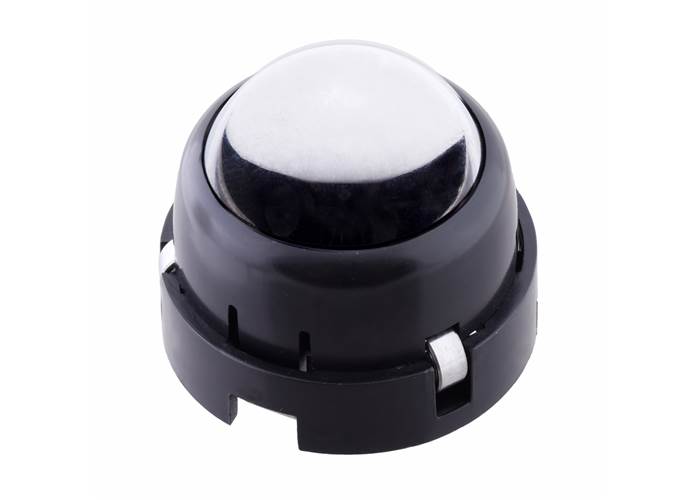

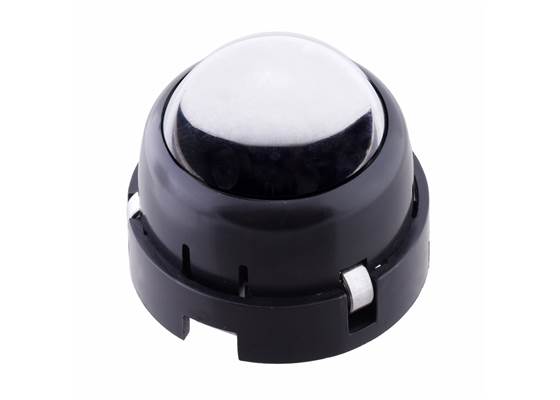

This ball castor is also available with ball bearings instead of plastic rollers for smoother performance.

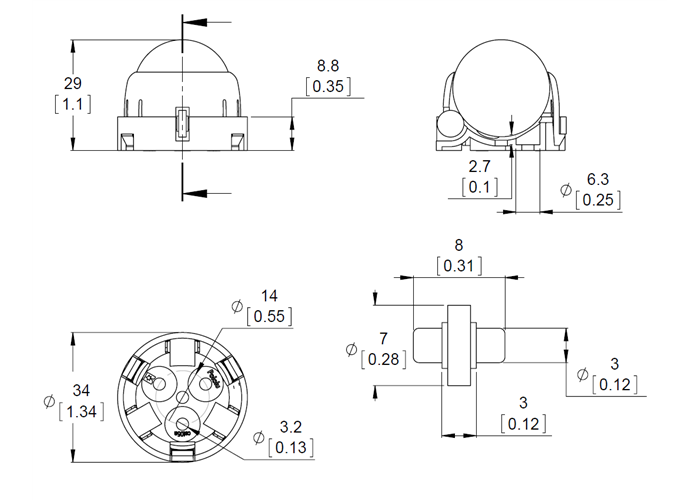

![Dimensions of the Pololu Ball Caster with 1″ Plastic Ball and Plastic Rollers. Units are mm over [inches]](/cache/files/productimageoriginals/20702_dimensions_of_the_pololu_ball_caster_with_1_plastic_ball_and_plastic_rollers_units_are_mm_over_inches_.png)
Dimensions of the Pololu Ball Caster with 1″ Plastic Ball and Plastic Rollers. Units are mm over [inches]
This dimension diagram is also available as a downloadable PDF (133k pdf).
Pololu ball casters with plastic and metal balls. Ball diameter from left to right: 1″, 3/4″, 1/2″, and 3/8″
Pololu ball castor ball diameter |
height with no spacers |
distance between screw holes |
weight with no spacers or screws |
| 0.40″ | 0.53″ | 0.03 oz | |
| 0.40″ | 0.53″ | 0.14 oz | |
| 0.53″ | 0.58″ | 0.07 oz | |
| 0.53″ | 0.58″ | 0.32 oz | |
| 0.91″ | 0.24″ | 0.25 oz | |
| 0.83″ | 0.61″ | 1.05 oz | |
| 1.10″ | 0.48″ | 0.65 oz | |
1″ plastic ball, plastic rollers |
1.10″ | 0.48″ | 0.58 oz |
| 1.10″ | 0.70″ | 0.36 oz |
| Ball diameter: | 1 in |
|---|---|
| Weight: | 16.5 g |
| Ball material: | plastic |
|---|
