Romi Chassis Kit - White

Overview

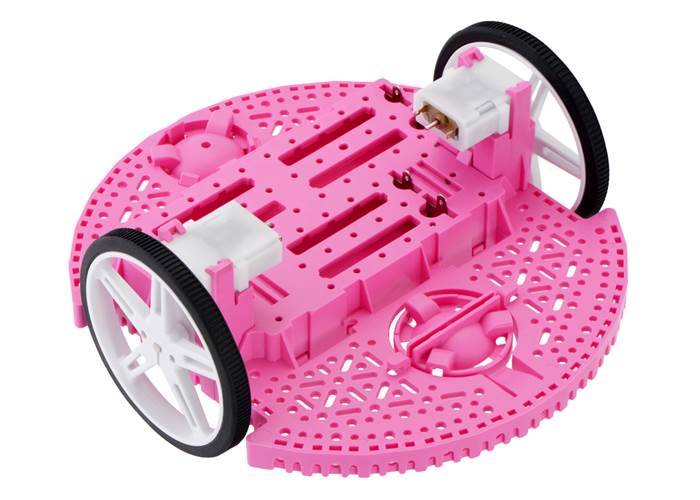

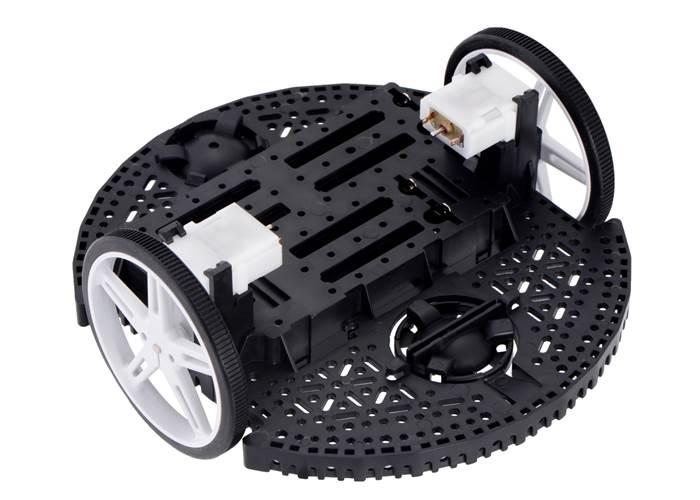

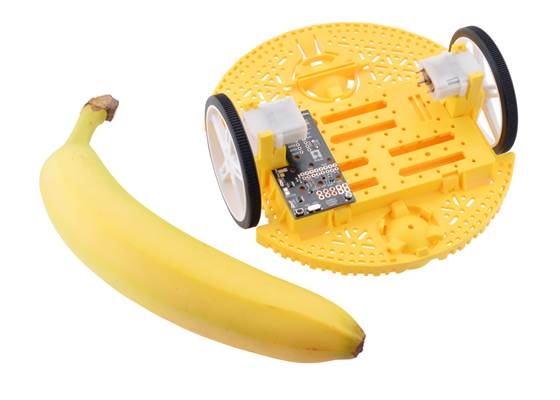

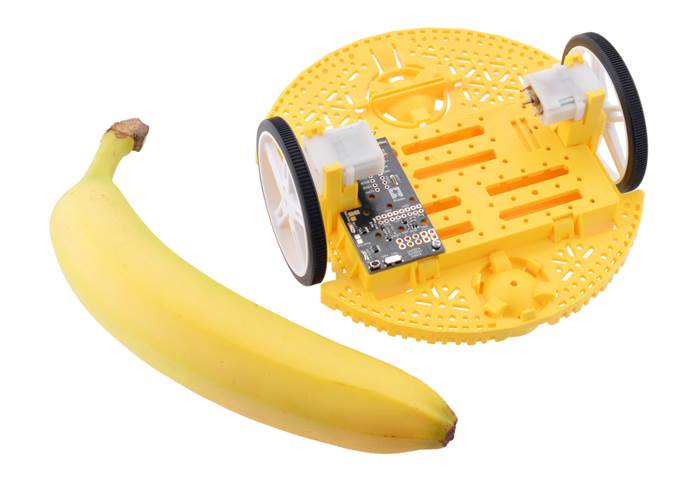

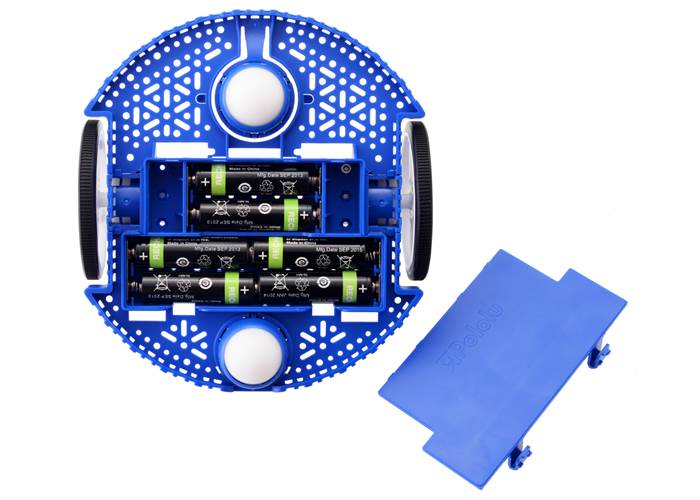

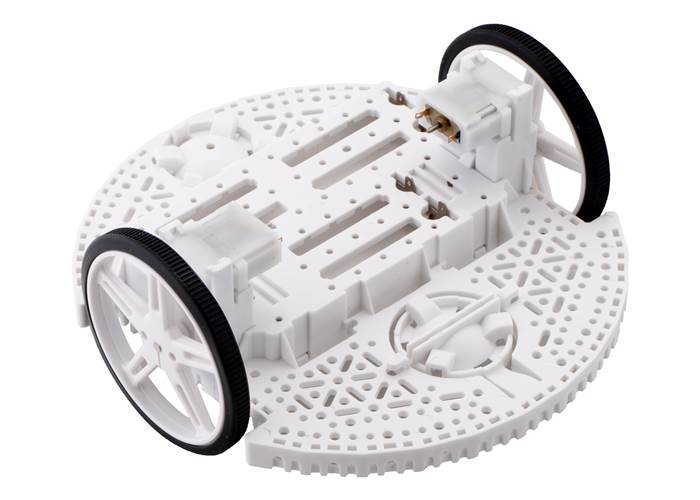

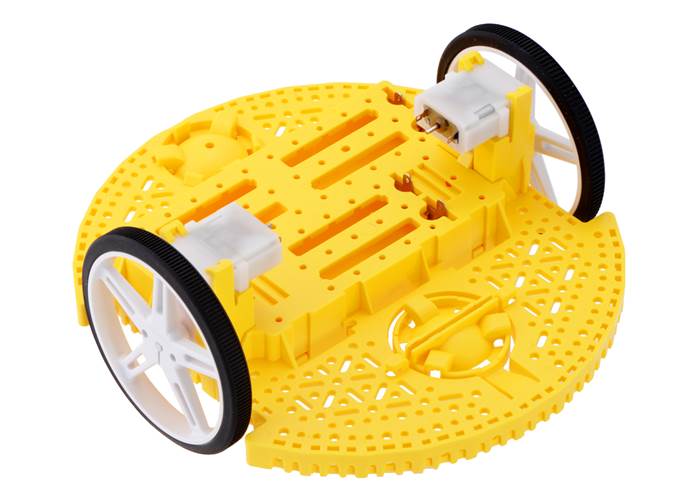

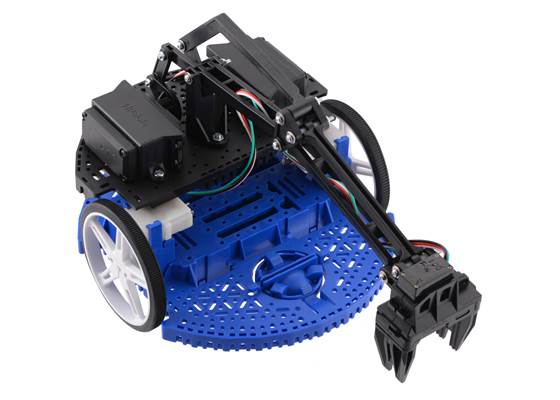

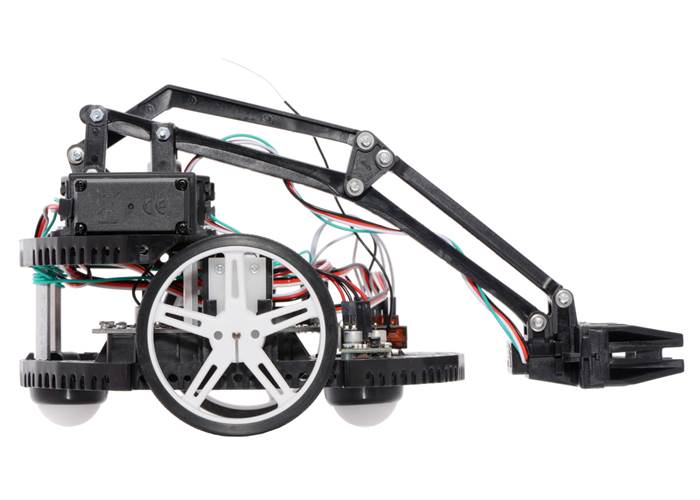

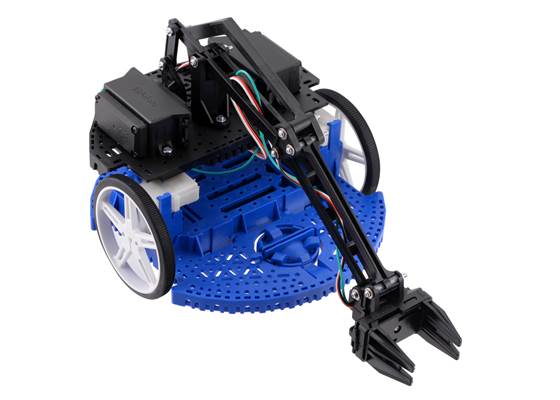

The Romi chassis is a differential-drive mobile robot platform with a diameter of 6.5″ (165 mm) and an integrated battery holder for six AA batteries (not included). The drive wheels are located on a diameter of the circular base plate, allowing for turns or spinning in place. A large, fixed ball castor in the rear provides a smooth third point of contact, and a second ball castor (not included) can optionally be added to the front. The chassis uses 70×8mm Pololu wheels and Mini Plastic Gearmotors with extended backshafts to enable quadrature encoders for position feedback.

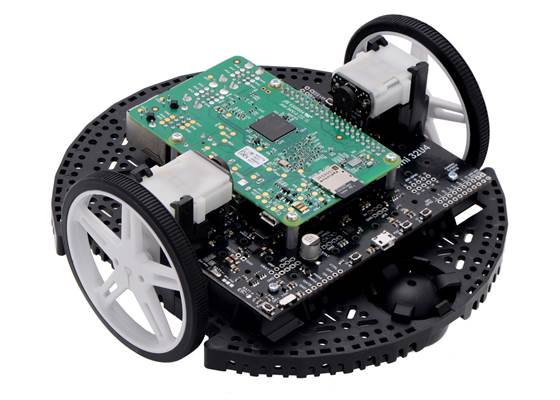

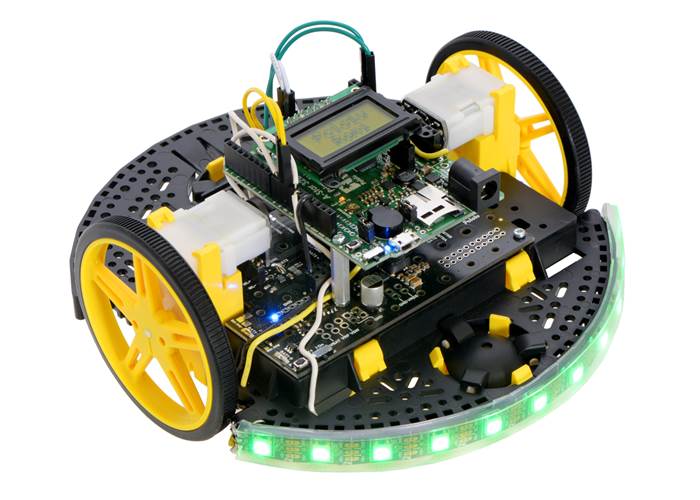

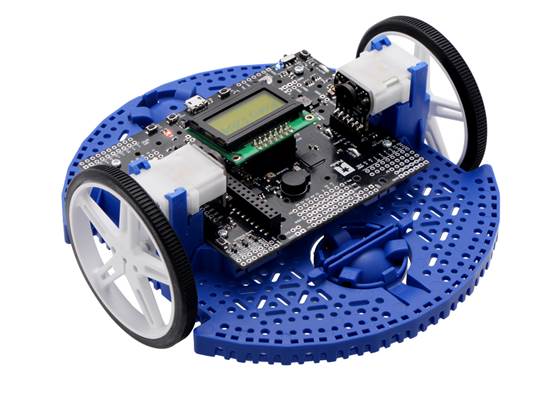

The Romi chassis has an abundance of general-purpose mounting holes and slots intended for various sizes of screws (not included) such as #2-56, #4-40, M2, and M3. These holes can be used for mounting your electronics, such as your microcontroller, motor drivers, and sensors.

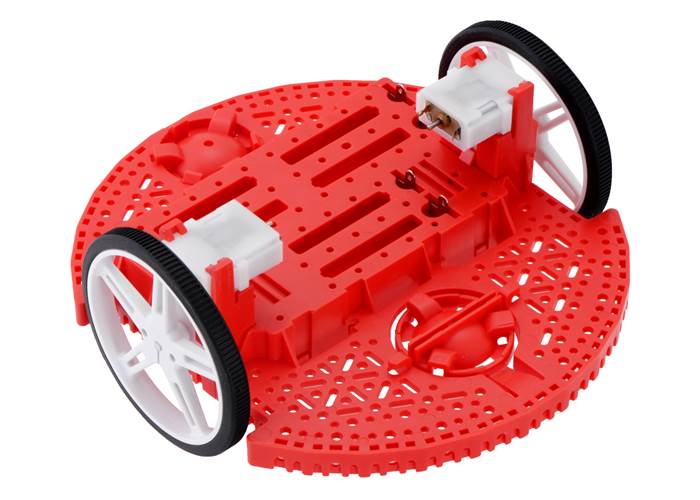

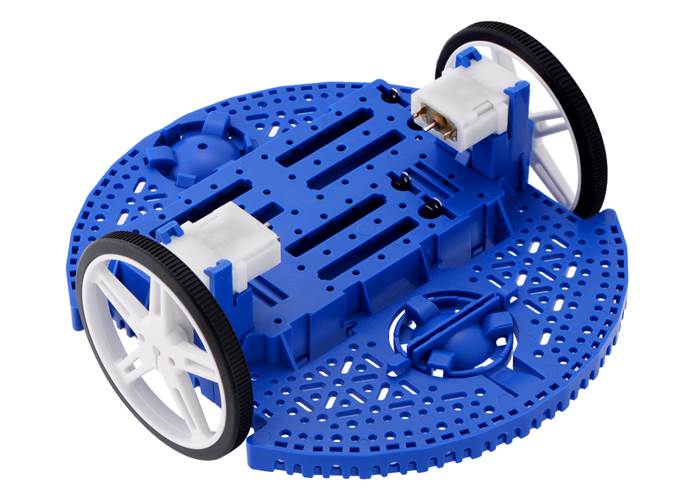

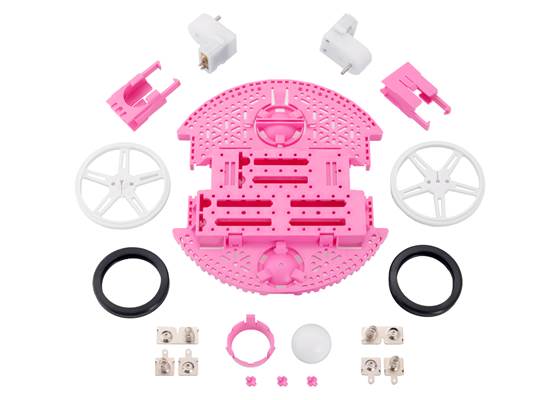

The plastic components making up the chassis are available in six colors, either individually (for use as replacement parts or to make custom colour combinations) or in kits that include motors and battery contacts.

This animation shows how the parts fit together:

See the user’s guide for more complete assembly instructions.

Details for item #3509

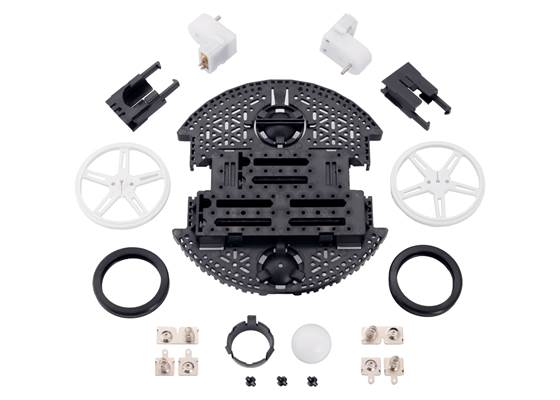

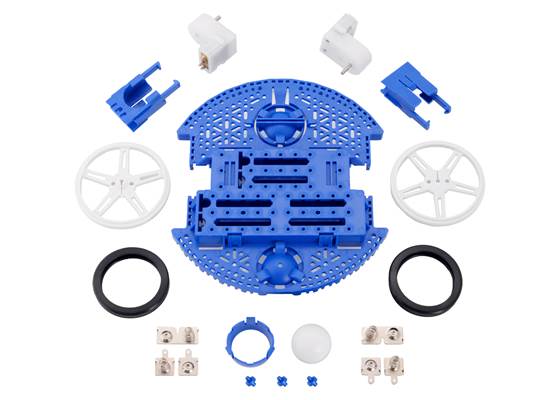

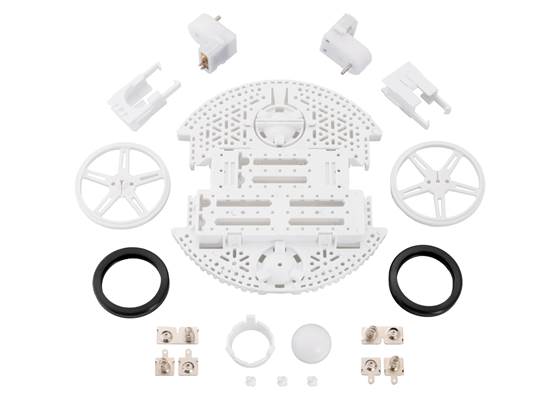

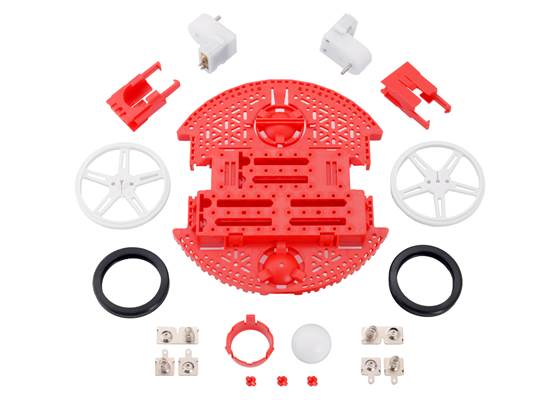

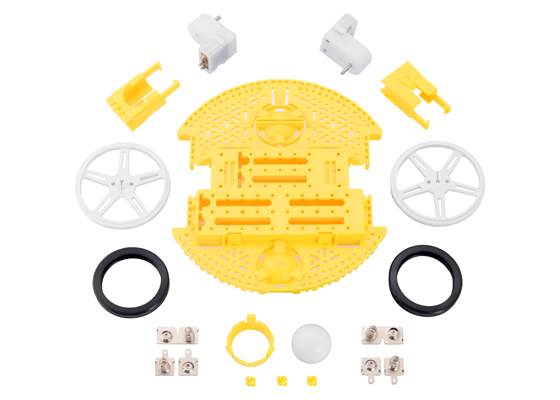

Kit contents

• One white Romi chasis base plate
• Two mini plastic gearmotors (120:1 HP with offset output and extended motor shaft)
• A pair of white Romi chassis motor clips
• A pair of white 70×8mm Pololu Wheels
• One white Romi chassis ball castor kit
• One Romi chassis battery contact set

Additional required components (not included with the kit)

In addition to what comes with the kit, you will need the following:

• Six AA batteries (we recommend rechargeable AA NiMH cells); see sec0J1041 for more details about power options.
• Electronics to control the motors (e.g. the Motor Driver and Power Distribution Board for Romi Chassis).

You will likely also need a soldering iron for connecting your motors and batteries to your electronics.

Optional accessories

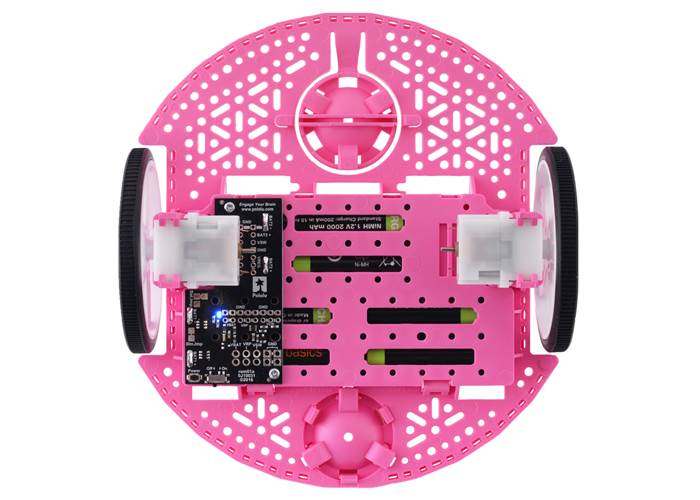

• Power Distribution Board for Romi Chassis – This board helps you get your Romi chassis running quickly. It solders to the chassis’s battery contacts and provides reverse battery protection, several power switching options, and convenient access to the various power busses.

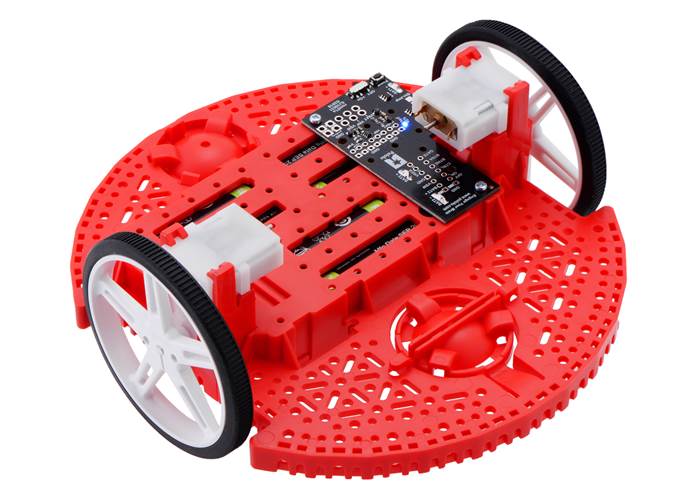

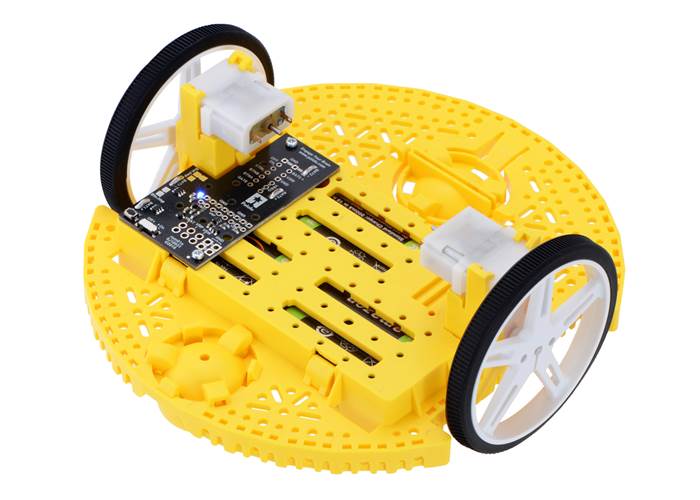

Power Distribution Board for Romi Chassis on a black chassis.

Power Distribution Board for Romi Chassis.

• Motor Driver and Power Distribution Board for Romi Chassis – This board is an alternative to the Power Distribution Board mentioned above. It offers the same features (reverse battery protection, multiple power switching options, and convenient access to various power busses) along with dual motor drivers and a powerful switching step-down voltage regulator that can deliver 2.5 A at 5 V or 3.3 V.

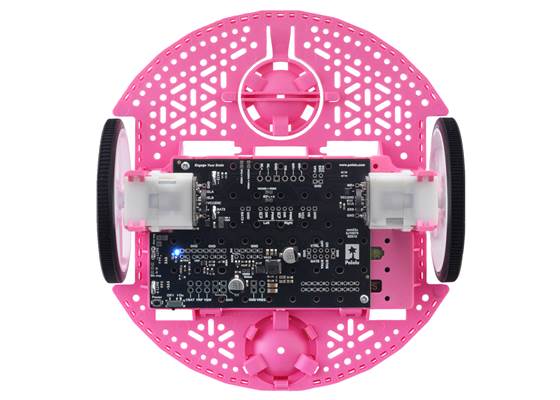

Motor Driver and Power Distribution Board for Romi Chassis.

Motor Driver and Power Distribution Board for Romi Chassis.

• Romi Encoder Pair Kit – Add quadrature encoders to the mini plastic gearmotors on your Romi chassis with this kit that uses a magnetic disc and Hall effect sensors to provide 12 counts per revolution of the motor shaft.

The included low-profile headers are still long enough to work with our pre-crimped jumper wires.

The Romi Encoder can plug directly into the Motor Driver and Power Distribution Board for Romi Chassis.

• Romi Chassis components – Chassis components are available individually for use as spare parts or for those who want to put together their own Romi chassis with the colour combinations of their choosing.

Romi Chassis Base Plate – White.	Romi Chassis Motor Clip Pair – Blue.
Romi Chassis Ball Castor Kit – Red.	Pololu wheel 70×8mm pair – yellow.

• Sensors.
• Hardware (such as stand-offs, spacers, and fasteners).

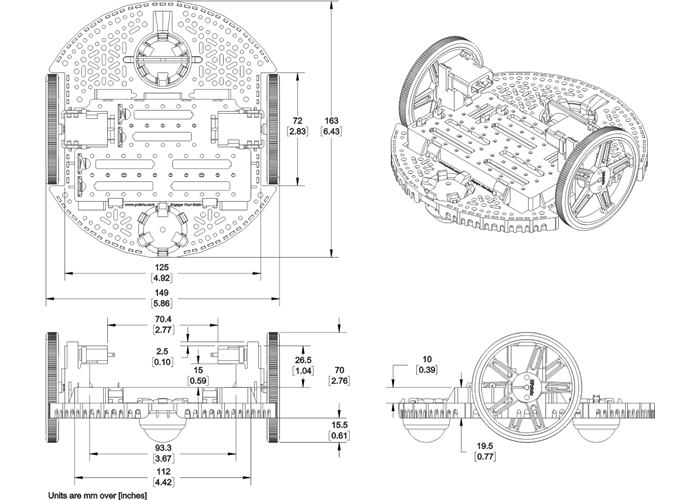

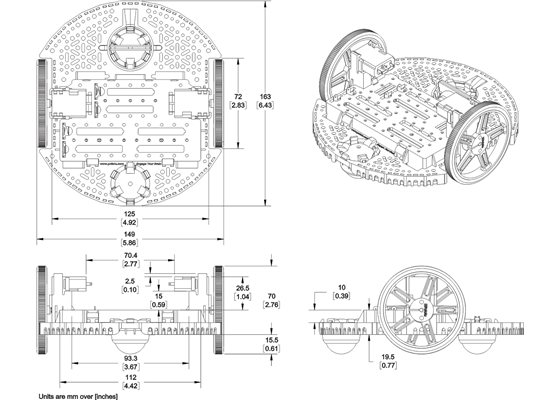

Dimensions
