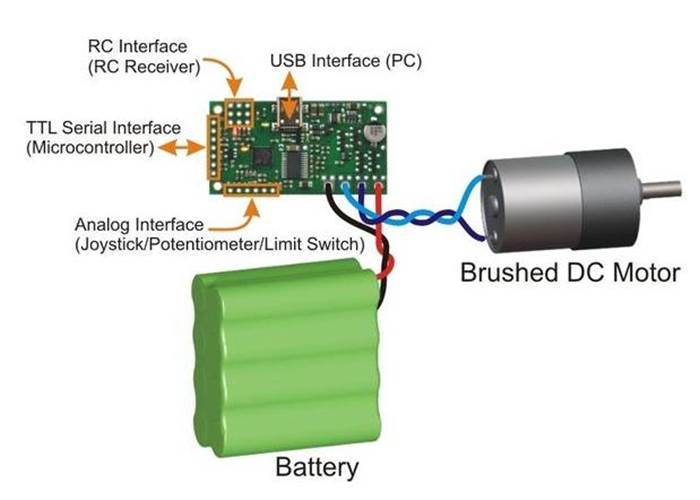

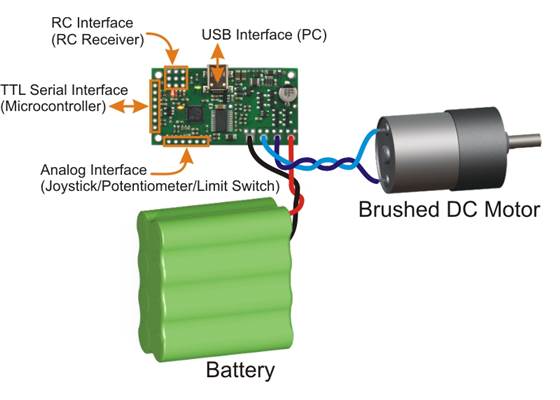

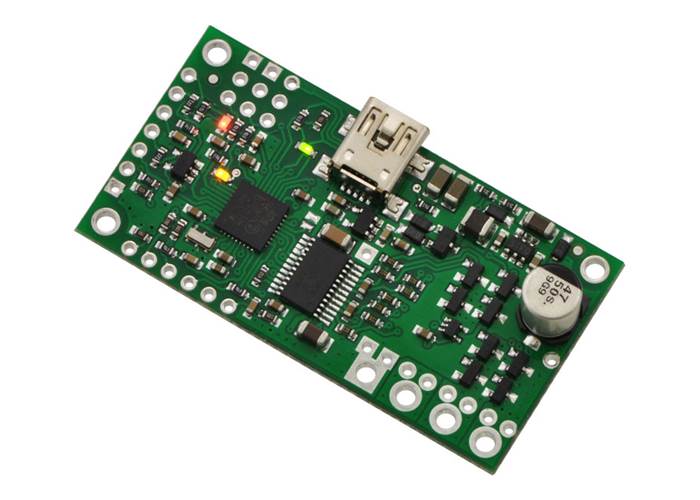

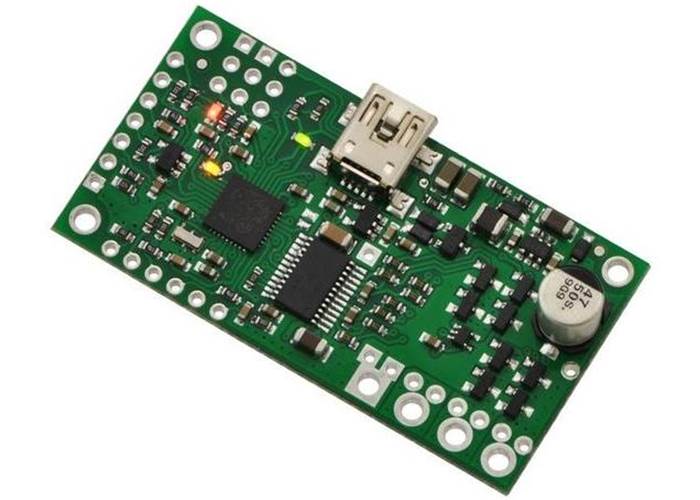

The Pololu Simple Motor Controller (7A / 30A peak) makes basic control of brushed DC motors easy, with our free Simple Motor Control Center software enabling quick configuration over USB. The controller supports four interface modes: USB, TTL serial, analog voltage, and hobby radio control (RC).
Shipping from $7.90
+9 more from our supplier in 7-10 days
Our Code: MCU-60051
Supplier Link: [Pololu MPN:1373]

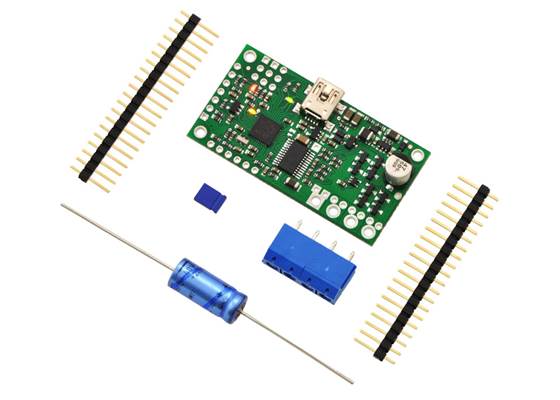

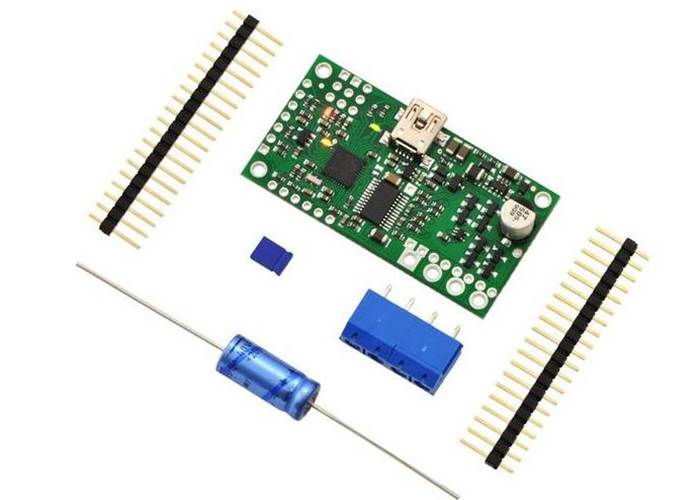

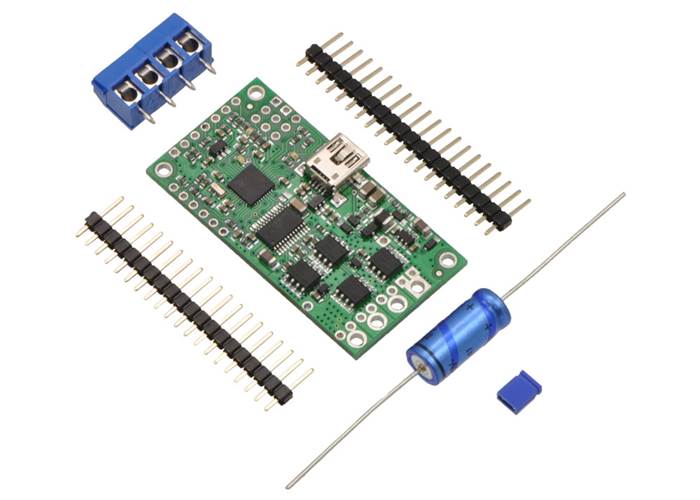

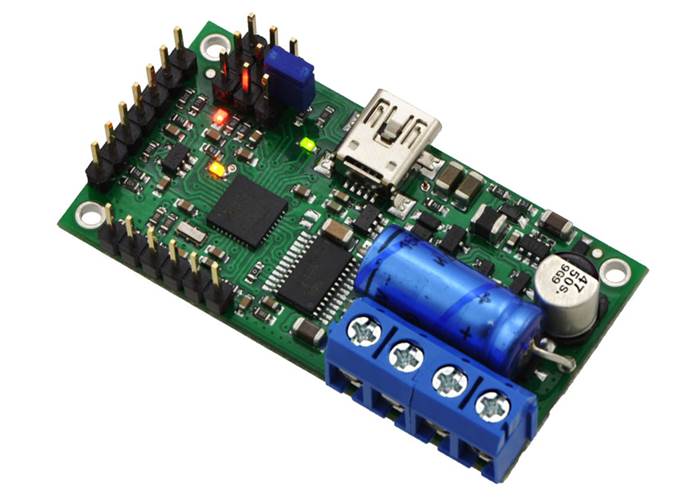

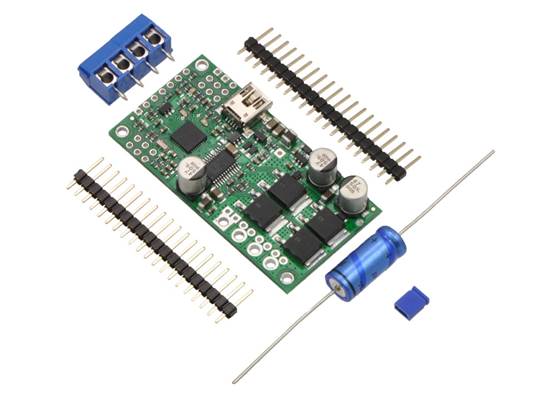

The controller supports four interface modes: USB, TTL serial, analog voltage, and hobby radio control (RC). This version operates from 5.5 to 30 V and is efficient enough to deliver a continuous 7 A (>30 A peak) without a heat sink. It ships with the power capacitor and connectors included but not soldered in, allowing for custom installations.

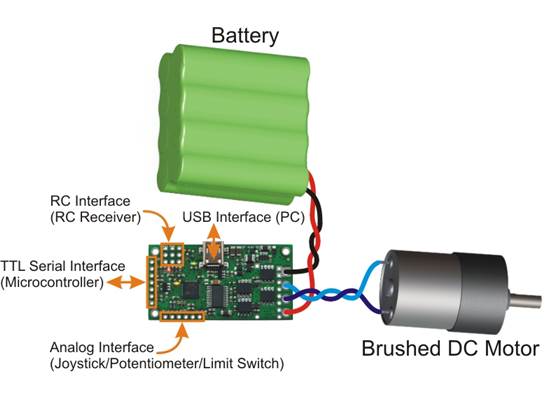

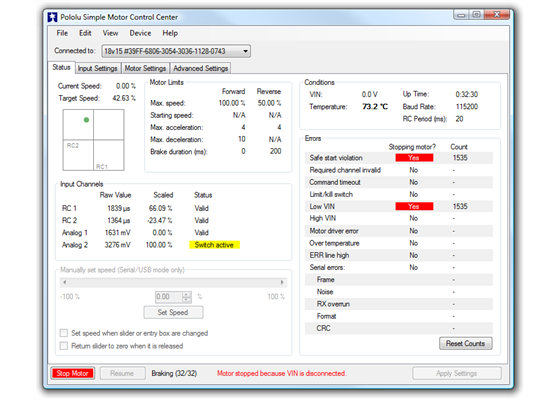

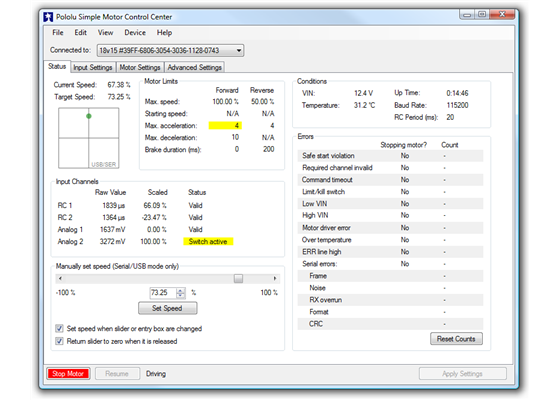

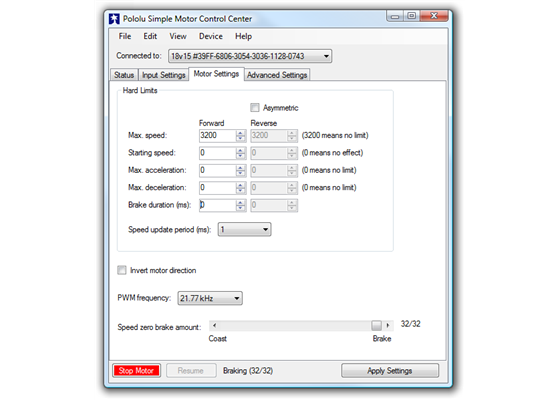

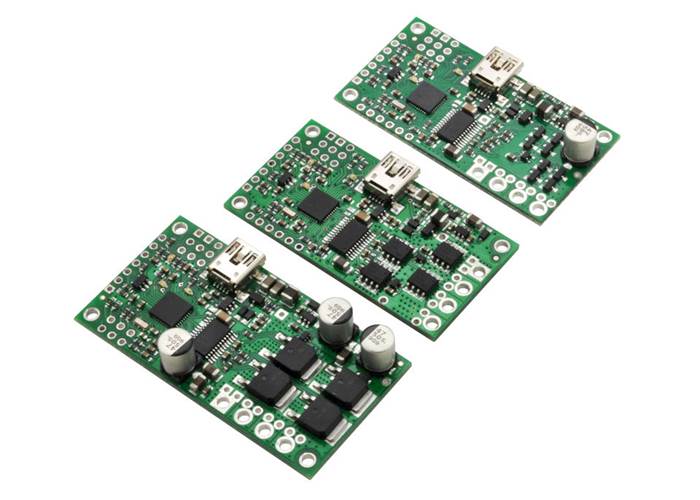

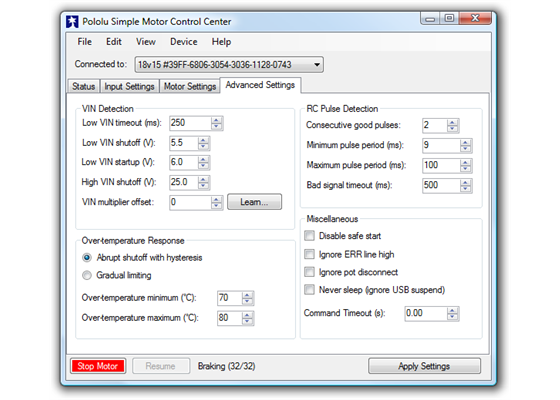

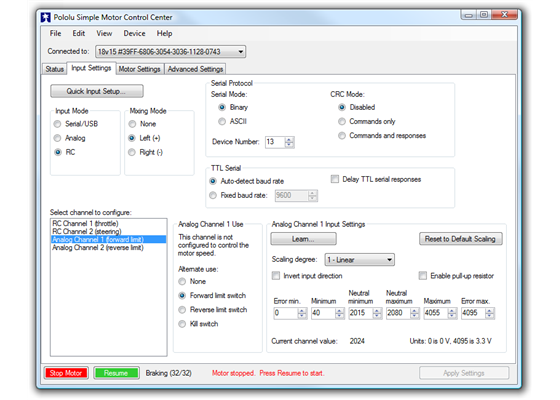

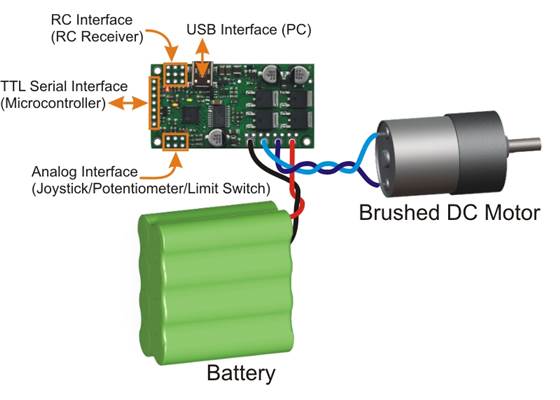

The Pololu Simple Motor Controllers are versatile, general-purpose motor controllers for brushed, DC motors. A wide operating range of up to 5.5–30V and the ability to deliver up to several hundred Watts in a small form factor make these controllers suitable for many motor control applications. With a variety of supported interfaces—USB for direct connection to a computer, TTL serial for use with embedded systems, RC hobby servo pulses for use as an RC-controlled electronic speed control (ESC), and analog voltages for use with a potentiometer or analog joystick—and a wide array of configurable settings, these motor controllers make it easy to add basic control of brushed DC motors to a variety of projects. Although this motor controller has many more features than competing products, a free configuration utility (for Windows 7, Vista, Windows XP, and Linux) simplifies initial setup of the device and allows for in-system testing and monitoring of the controller via USB.

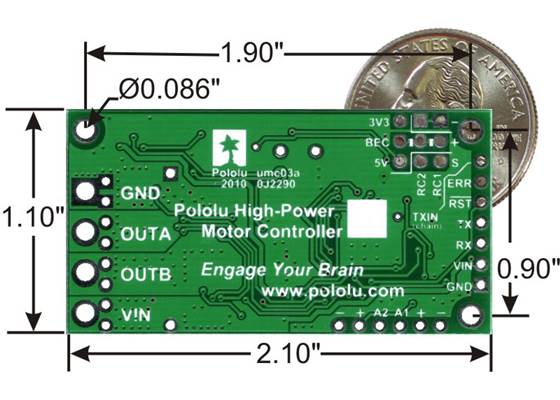

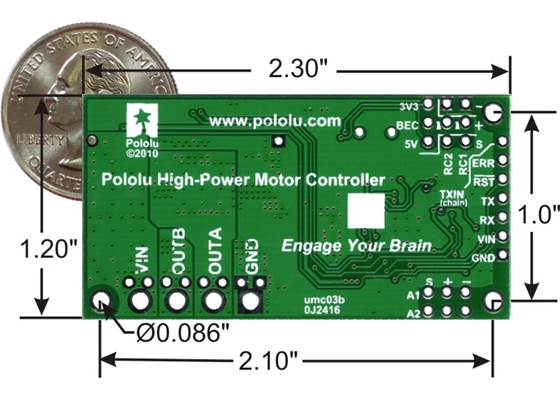

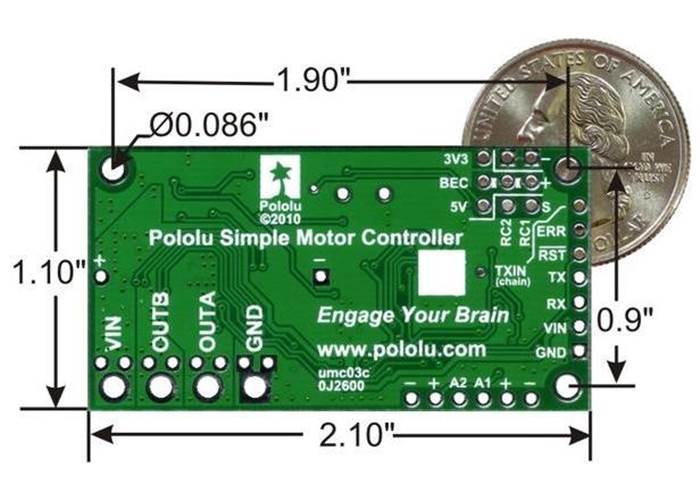

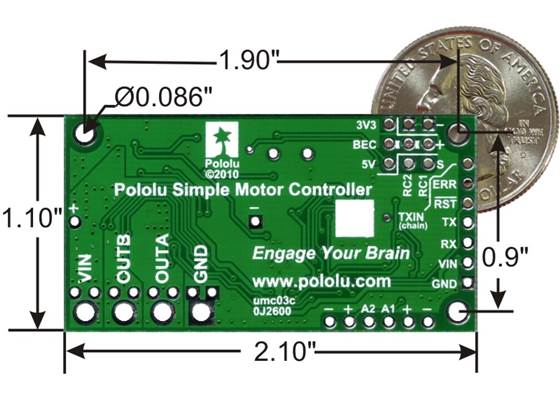

|Size:||2.1" x 1.1" x 0.4"|

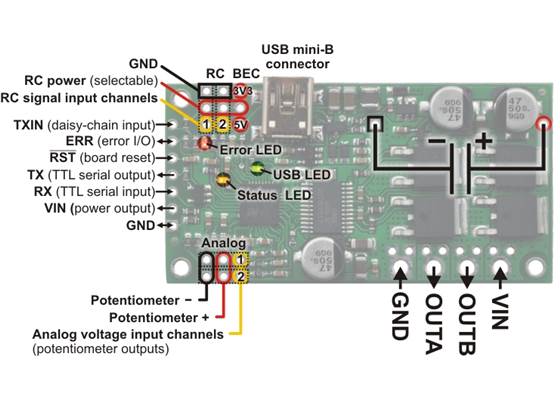

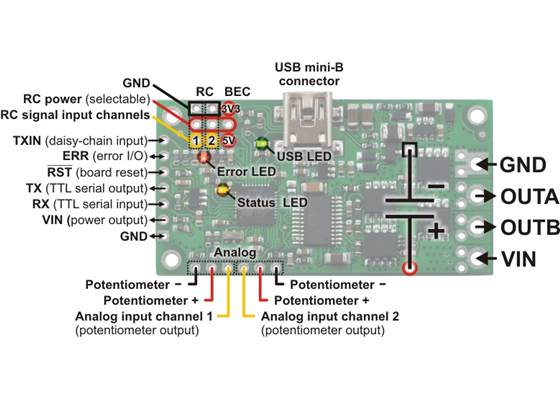

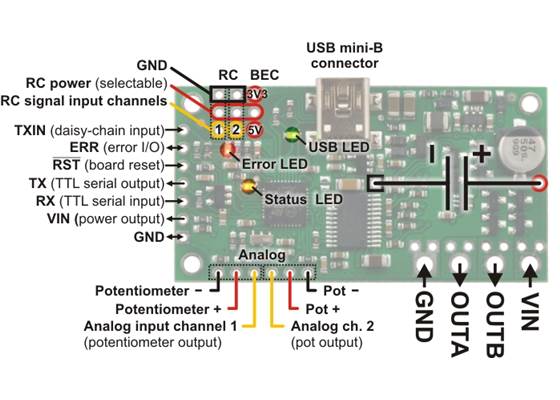

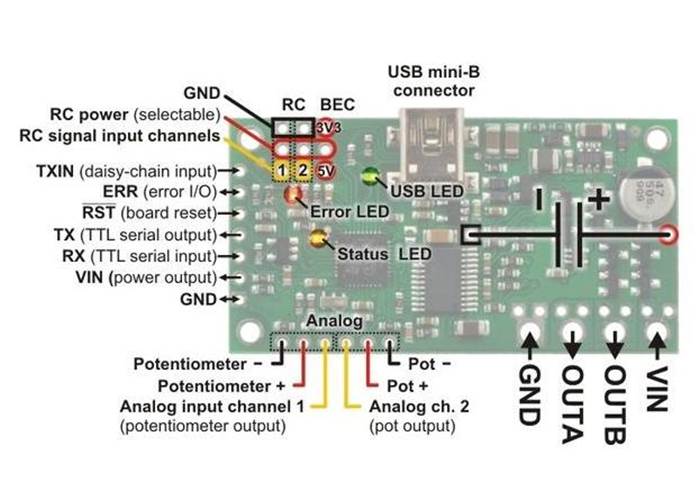

|Control interface:||USB; non-inverted TTL serial;
RC servo pulses; analog voltage2
|Minimum operating voltage:||5.5 V|
|Maximum operating voltage:||30 V|
|Continuous output current per channel:||7 A3|
|Maximum PWM frequency:||21.77 kHz|
|Maximum logic voltage:||3.3 V4|
|Reverse voltage protection?:||N|
See the manufacturers product page for up to date resources:
