These premium jumper wires are stranded 26 AWG wires with male terminations on both ends , for use with 0.1″ (2.54 mm) female headers, connectors, and solderless breadboards.
Special Order
Shipping from $7.90
+68 more from our supplier in 7-10 days
Our Code: SKU-004255
Supplier Link: [Pololu MPN:3865]

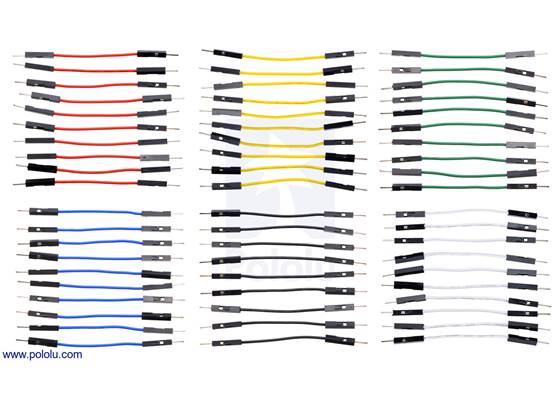

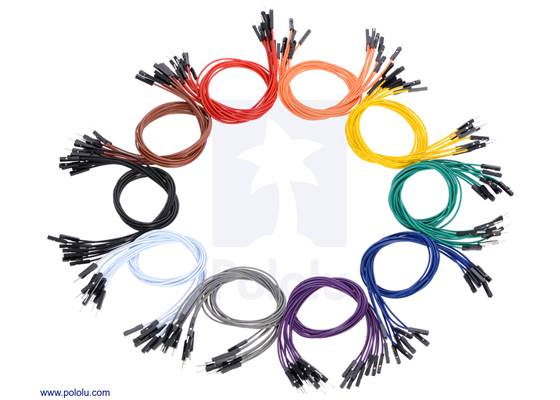

These premium 26 AWG stranded jumper wires are equivalent to our wires with pre-crimped terminals with 1×1 crimp connector housings already attached, and they are great for making quick and easy prototyping connections. They are available in five lengths—1″ (2.5 cm), 2″ (5 cm), 3″ (7.5 cm), 6″ (15 cm) and 12″ (30 cm)—and up to ten colors:
These are the same colors as those used on resistor colour codes and rainbow ribbon cable. The available colour options and pack sizes depend on the wire length:
length | single-colour pack quantity | multi-colour pack quantity |
---|---|---|
1″ (2.5 cm) | 10 (six colors available) | 60 (10 each of six colors) |
2″ (5 cm) | 10 (six colors available) | 60 (10 each of six colors) |
3″ (7.5 cm) | 10 (six colors available) | 50 (5 each of ten colors) |
6″ (15 cm) | 10 (ten colors available) | 50 (5 each of ten colors) |
12″ (30 cm) | 10 (ten colors available) | 50 (5 each of ten colors) |
Note that the single-colour packs of the 1″, 2″, and 3″ wires are only available in six colors (black, red, yellow, green, blue, and white), while the single-colour packs for the 6″ and 12″ wires are available in all ten colors. The multi-colour packs of the 1″ and 2″ wires have ten each of six colors (black, red, yellow, green, blue, and white); the multi-colour packs for all of the other wire lengths, including 3″, have five each of all ten colors.

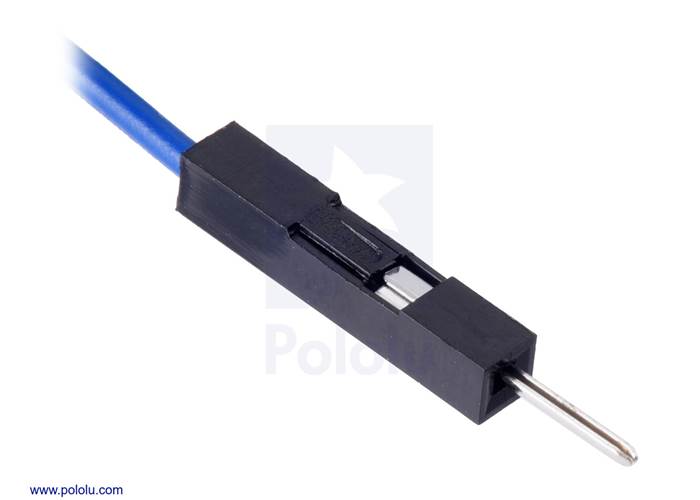

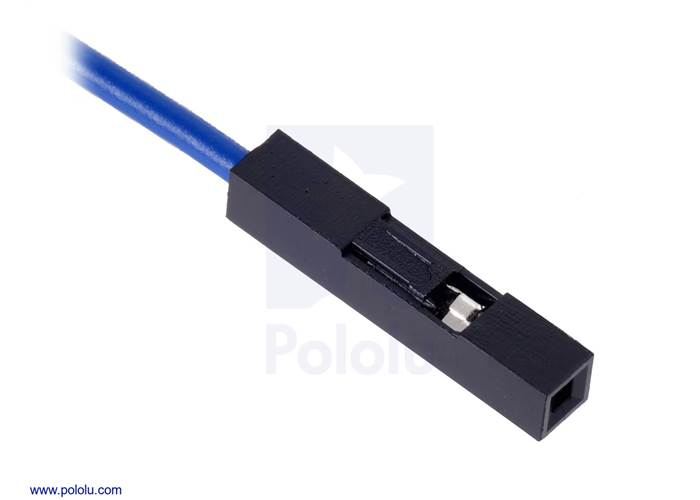

These wires can be purchased with male terminations on both ends, female terminations on both ends, or one male and one female termination. These terminations are designed for use with 0.1″ (2.54 mm) male headers and female headers, solderless breadboards, and prototyping PCBs. Close-up pictures of the male and female terminations are shown below:
You can use the following selection boxes to get to the specific wires you are looking for:
For versions of these wires without housings, see our wires with pre-crimped terminals, which can be used with our crimp connector housings to make custom multi-conductor cables or longer premium jumper wires. These versions are available in lengths of 1″, 2″, 3″, 6″, 12″, 24″, 36″, and 60″.
The following video talks about some of our various wire and cable options:
Length: | 2 in |
---|
Gender: | Male-Male |
---|---|
Colour: | assortment (mult-colour pack) |
