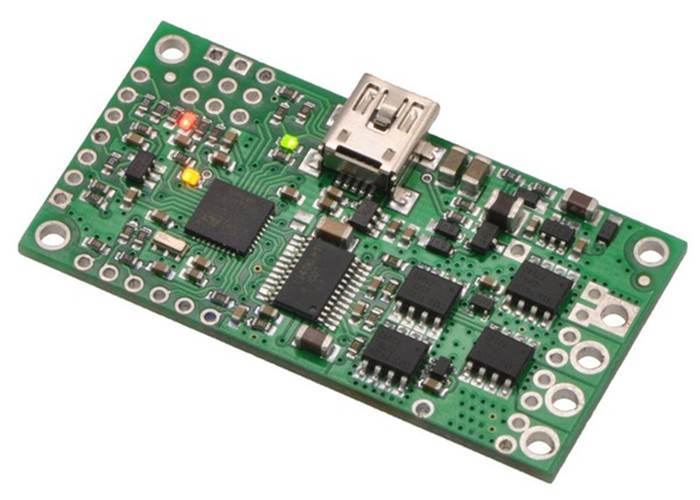

The Pololu Simple High-Power Motor Controller (12A continuous), makes basic control of brushed DC motors easy, with our free Simple Motor Control Center software enabling quick configuration over USB. The controller supports four interface modes: USB, TTL serial, analog voltage, and hobby radio control (RC).
Shipping from $7.90
+18 more from our supplier in 7-10 days
Our Code: MCU-60057
Supplier Link: [Pololu MPN:1378]

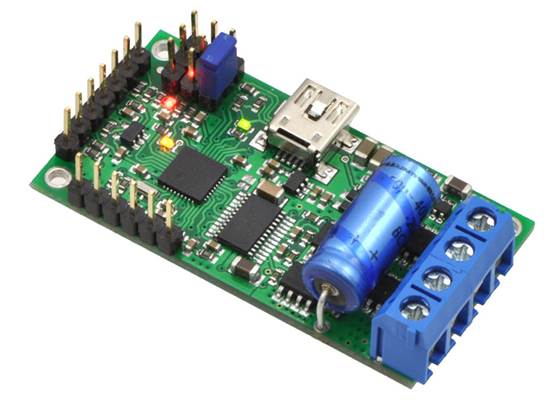

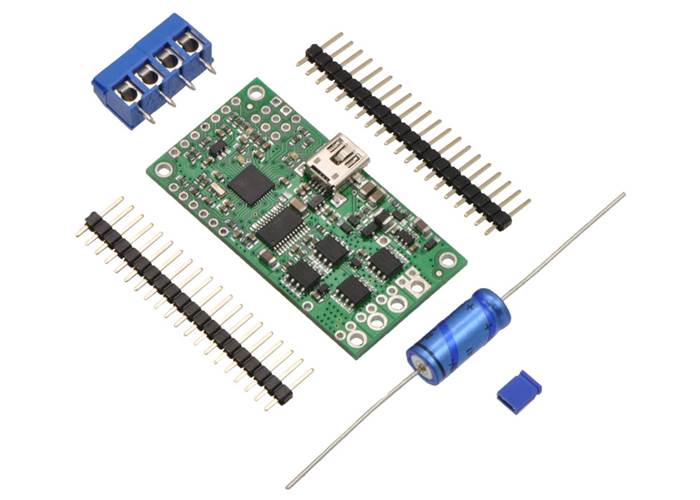

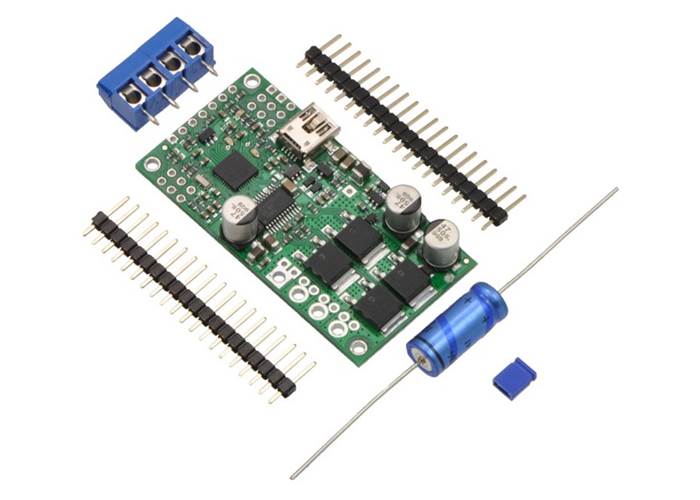

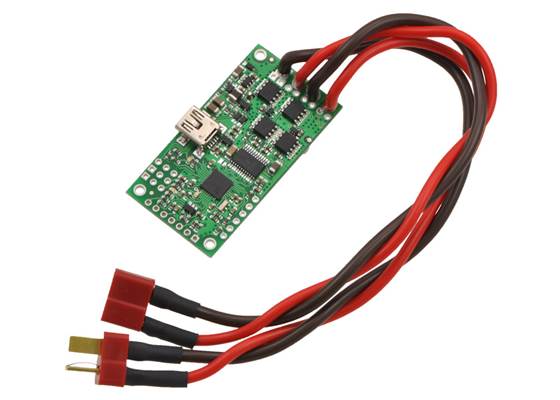

This version operates from 5.5 to 40 V and is efficient enough to deliver a continuous 12 A without a heat sink. It ships with the power capacitor and connectors included but not soldered in, allowing for custom installations.

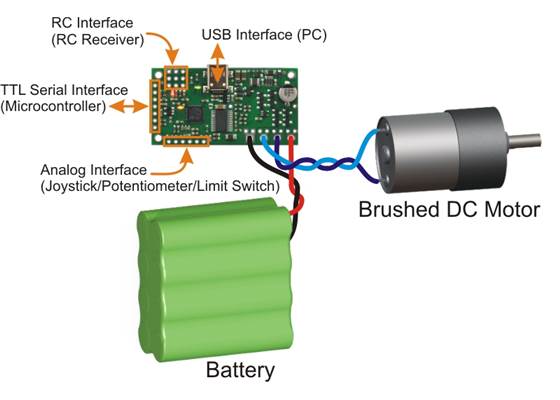

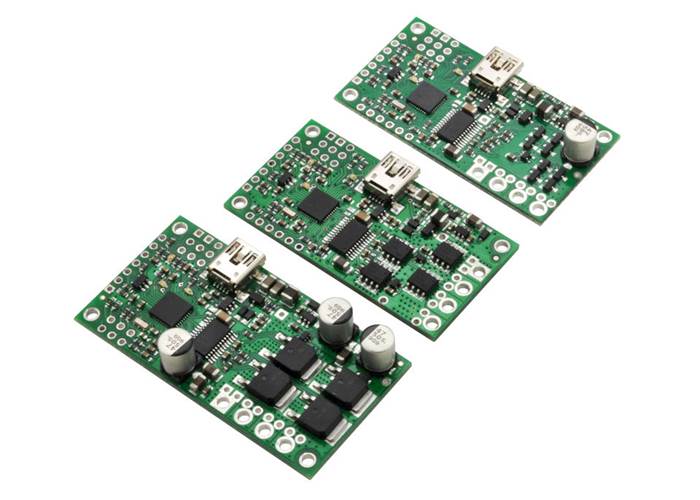

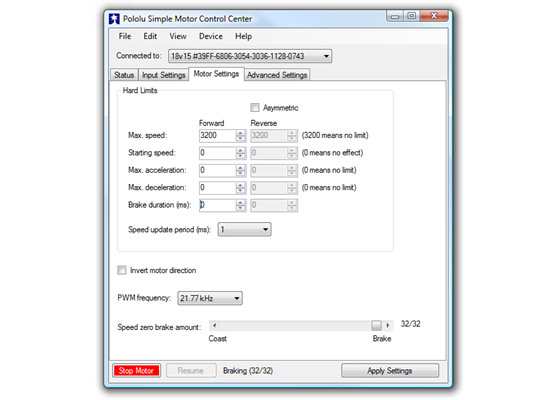

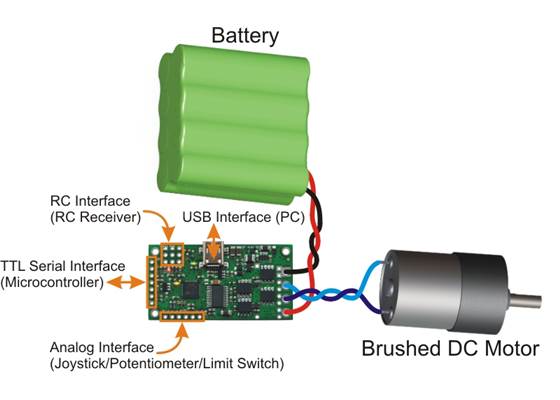

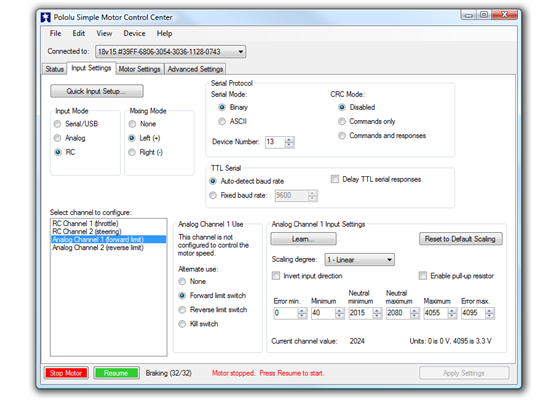

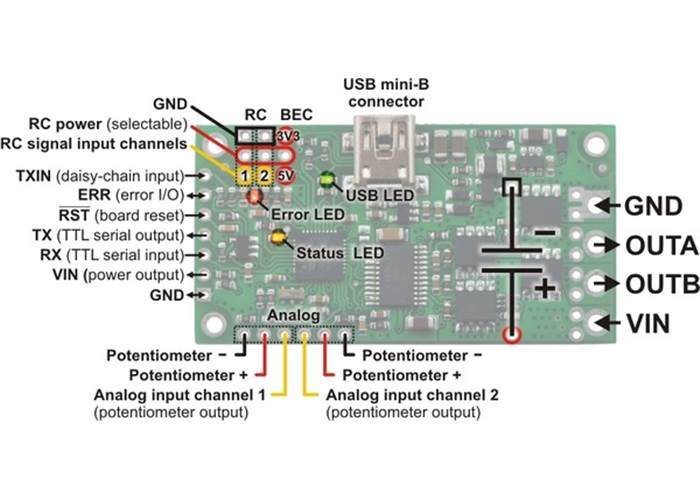

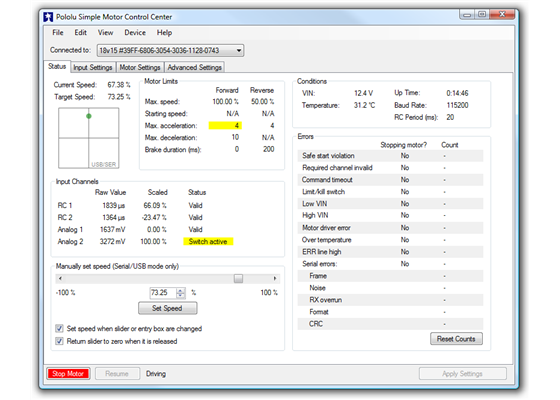

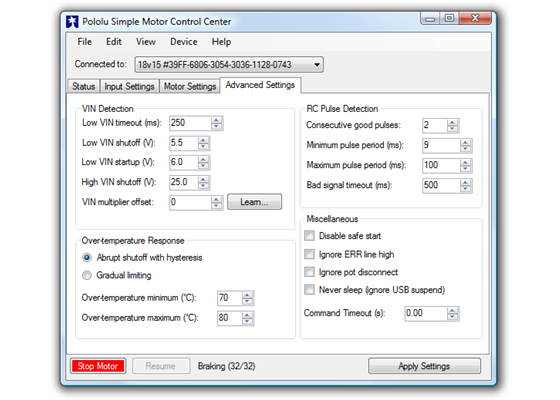

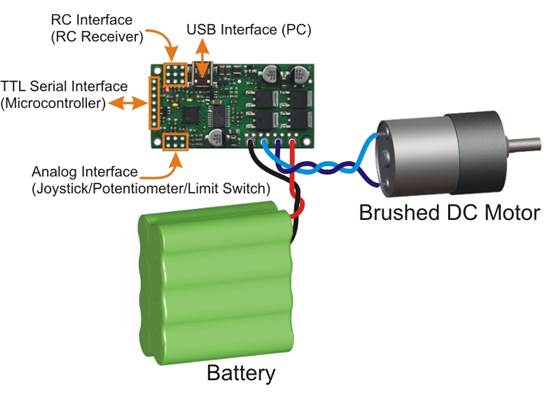

The Pololu Simple Motor Controllers are versatile, general-purpose motor controllers for brushed, DC motors. A wide operating range of up to 5.5–40V and the ability to deliver up to several hundred Watts in a small form factor make these controllers suitable for many motor control applications. With a variety of supported interfaces—USB for direct connection to a computer, TTL serial for use with embedded systems, RC hobby servo pulses for use as an RC-controlled electronic speed control (ESC), and analog voltages for use with a potentiometer or analog joystick—and a wide array of configurable settings, these motor controllers make it easy to add basic control of brushed DC motors to a variety of projects. Although this motor controller has many more features than competing products, a free configuration utility (for Windows 7, Vista, Windows XP, and Linux) simplifies initial setup of the device and allows for in-system testing and monitoring of the controller via USB.

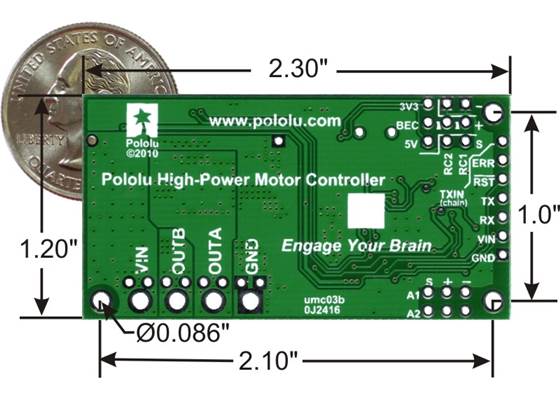

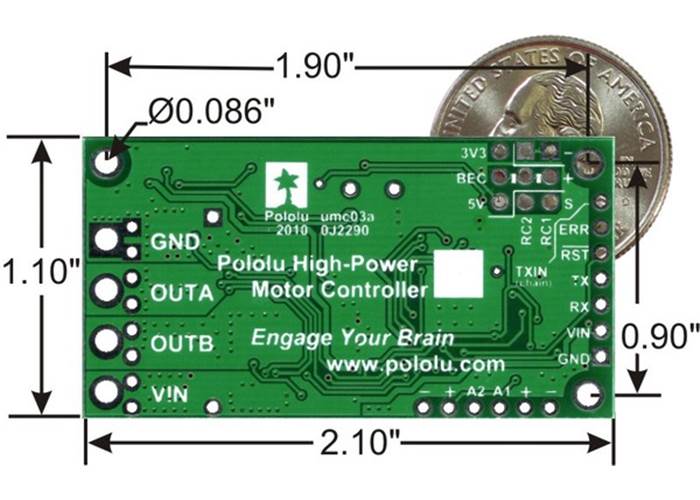

|Size:||2.1" x 1.1" x 0.5"|
|Control interface:||USB; non-inverted TTL serial;
RC servo pulses; analog voltage1
|Minimum operating voltage:||5.5 V|
|Maximum operating voltage:||40 V|
|Continuous output current per channel:||12 A2|
|Maximum PWM frequency:||21.77 kHz|
|Maximum logic voltage:||3.3 V3|
|Reverse voltage protection?:||N|
