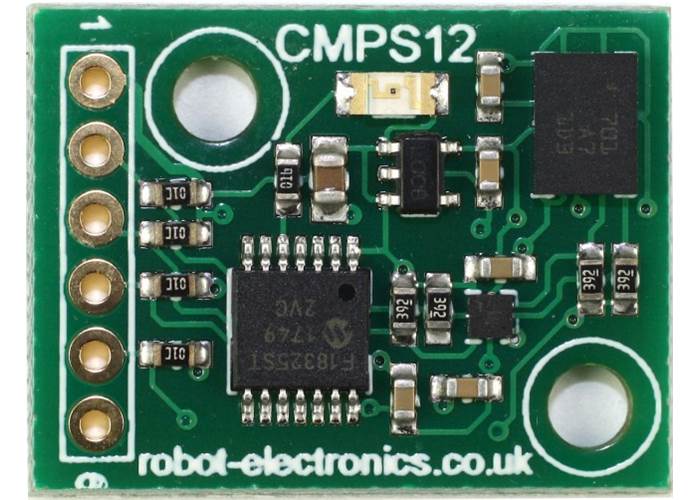

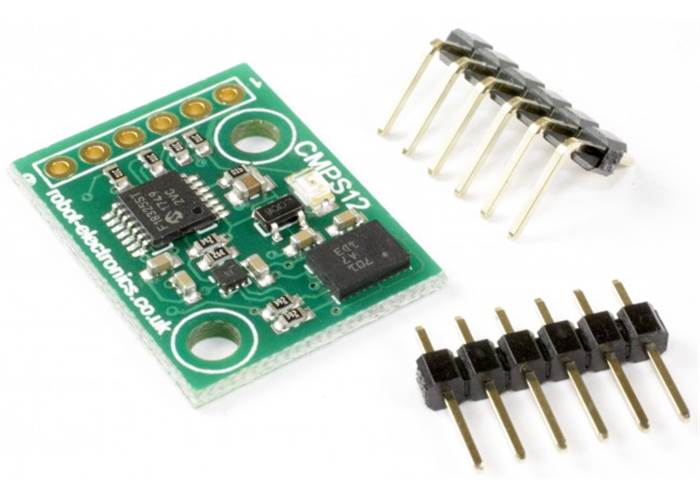

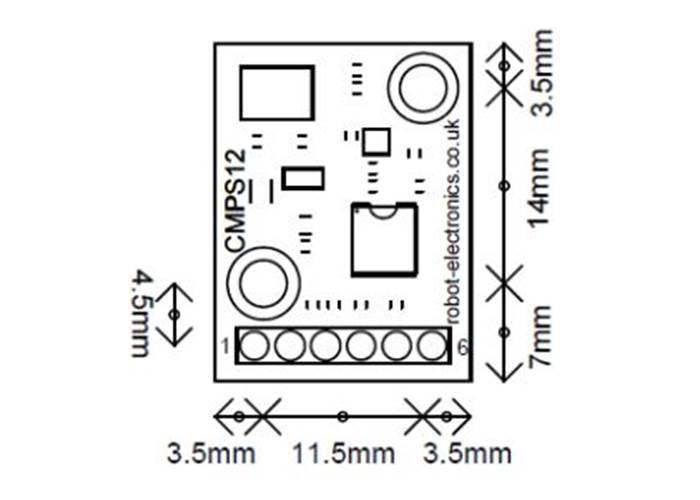

Devantech CMPS12 - Tilt Compensated Compass Module

The CMPS12 is our 4th generation tilt compensated compass. Employing a 3-axis magnetometer, a 3-axis gyro and a 3-axis accelerometer. At the core of the module is the superb BNO055 running algorithms to remove the errors caused by tilting of the PCB. Powered from 3.6-5V @18mA the compass outputs the bearing reading via serial or I2C interface.

Not currently available

Our Code: SEN-010087


The CMPS12 module is the 4th generation tilt compensated compass from Devantech. Employing a 3-axis magnetometer and a 3-axis accelerometer and a powerful Kalman filter, the CMPS12 has been designed to remove the errors caused by tilting of the PCB.

The CMPS12 produces a result of 0-3599 representing 0-359.9 or 0 to 255. The output of the three sensors measuring x, y and z components of the magnetic field, together with the pitch and roll are used to calculate the bearing, each of these components are also made available in there raw form.

Examples of using the CMPS12 module with a wide range of popular controllers. The CMPS12 module requires a power supply at  3.6 - 5v and draws a nominal 18mA of current. There are two ways of getting the bearing from the module. A serial interface or an I2C interface

Full Technical Data

We also have a free design for a 3d printed tower here


  • I2C bus tutor - general I2C guide
    Arduino - I2C interface or a serial interface and displaying data via the serial monitor
    ATMEGA32 - reading the result and displaying on a LCD03/LCD05
    PIC18F4410 - reading the result and displaying on a LCD03/LCD05
    PIC24FJ16GA002 - reading the result and displaying on a LCD03/LCD05
    Picaxe18x - I2C communication example
    Raspberry Pi - using I2C communication



Power - 3.3v-5v 18mA Typ.
Resolution - 0.1 Degree
Accuracy - Better than 1%. after calibration
Signal levels - 3.3v, 5v tolerant
I2C mode - up to 400khz
Serial mode - 9600, 19200, 38400 baud



Full Technical Data
