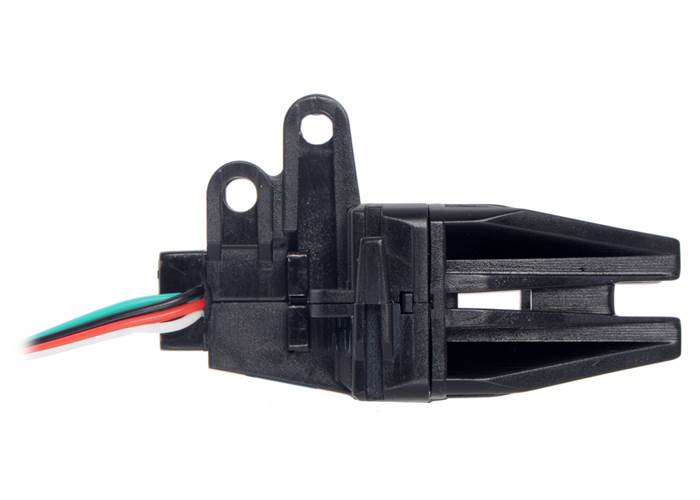

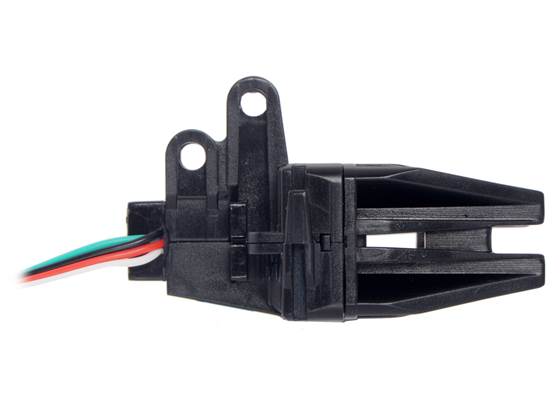

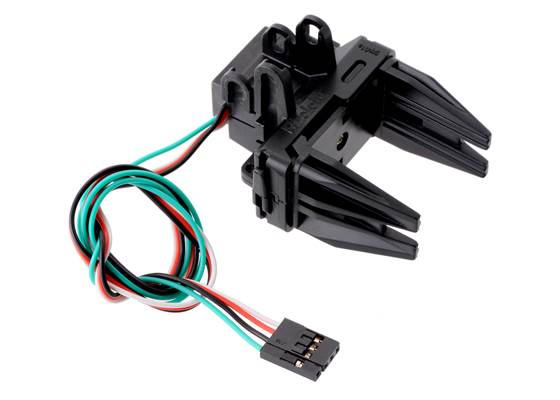

Micro Gripper Kit with Position Feedback Servo

This small gripper uses a rack and pinion design with a servo-driven pinion and opposing racks to keep the gripper paddles synchronised and parallel to each other throughout its 32 mm range of motion.

AUD$ 41.95

In stock in Australia

+100 more from our supplier in 7-10 days

Our Code: SKU-004922

Supplier Link: [Pololu MPN:3551]


Description

Overview

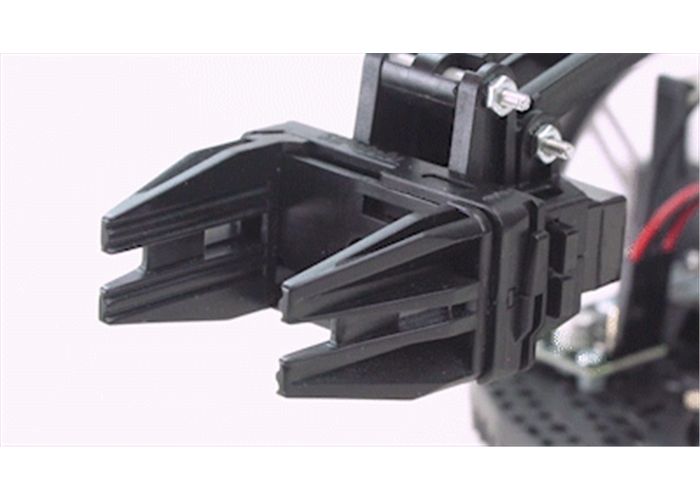

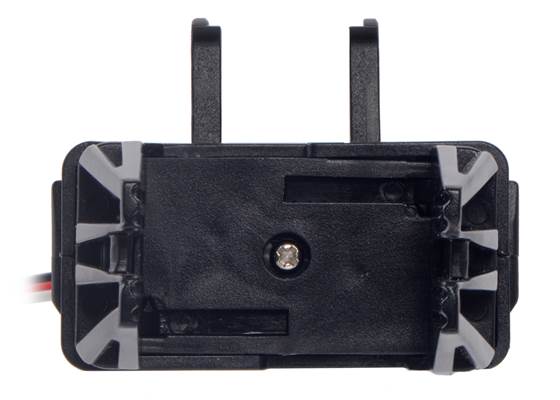

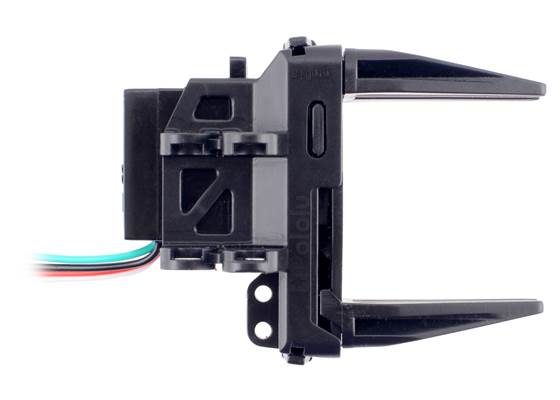

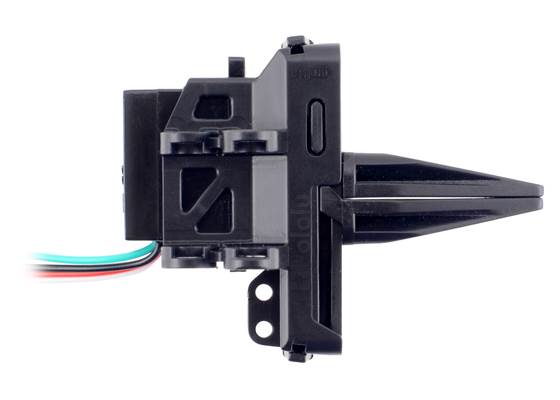

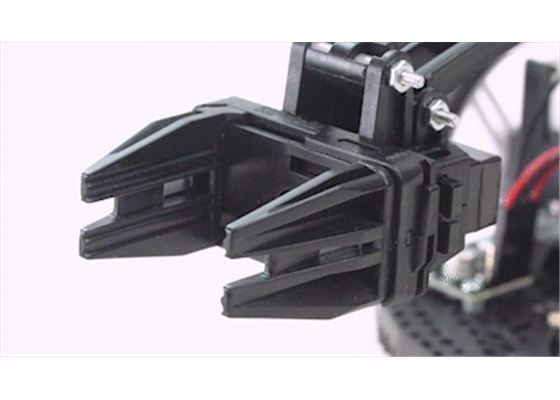

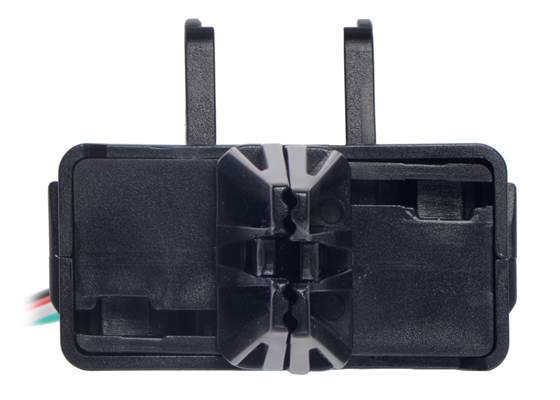

This small gripper uses a rack and pinion design with a servo-driven pinion and opposing racks to keep the gripper paddles synchronised and parallel to each other throughout its 32 mm range of motion. It includes a special micro servo with an additional wire that gives access to its feedback potentiometer, so you can track the actual position of the gripper paddles. This is the same gripper used in the Robot Arm Kit for Romi, and assembly instructions can be found in the Robot Arm Kit for Romi User’s Guide. Please note that the full range of the Micro Gripper requires servo control pulses between 0.5 ms (fully open) and 2.4 ms (fully closed), which is well beyond the standard hobby servo range 1 ms to 2 ms, so you should make sure your control electronics is capable of generating such signals if you care about getting the full range. Due to unit-to-unit variations in the servos, you might need to adjust these values for your particular gripper.

Dimensions of the Micro Gripper with Position Feedback Servo

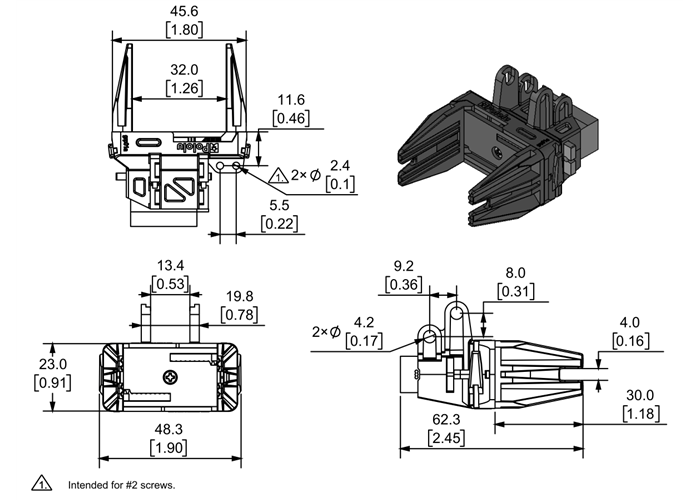

Dimension diagram of the Micro Gripper with Position Feedback Servo. Units are mm over [inches].

This diagram is also available as a downloadable PDF (144k pdf).

Kit contents

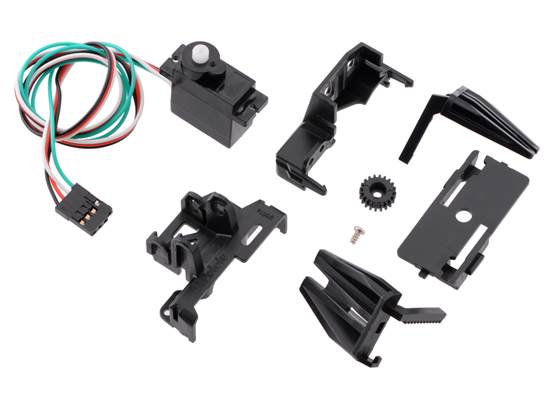

Contents of the Micro Gripper Kit with Position Feedback Servo.

  • One micro servo with position feedback
  • One top micro gripper case
  • One bottom micro gripper case
  • One micro gripper plate
  • One micro gripper pinion gear
  • Two micro gripper paddles with rack

Specifications

Dimensions

Weight: 30 g

General specifications

Colour: black
Lead length: 38 cm

Resources

Documentation and other information

User’s guide for the Robot Arm Kit for Romi

Assembly instructions and user’s manual for the Robot Arm Kit for Romi. (This also contains the assembly instructions for the Micro Gripper Kit, which is included as part of the Romi Arm Kit but is also a standalone product.)
