RPLIDAR A3M1 360° Laser Range Scanner

The RPLIDAR A3M1 is the next generation of 360 degree 2D LIDARs. Each RPLIDAR A3 can take up to 16000 samples of laser ranging per second thanks to its high rotation speed. The on-board system can perform 2D 360° scans within a range of 25 meters in enhanced mode and 20 meters in outdoor mode.

AUD$ 1434.95

In stock in Australia

Shipping from $23.60

Our Code: SKU-005238

Supplier Link: [SparkFun MPN:15045]


Description

The RPLIDAR A3M1 is the next generation of 360 degree 2D LIDARs. Each RPLIDAR A3 can take up to 16000 samples of laser ranging per second thanks to its high rotation speed. The on-board system can perform 2D 360° scans within a range of 25 meters in enhanced mode and 20 meters in outdoor mode. Additionally, the generated 2D point cloud data can be used in mapping, localisation, and object/environment modelling!

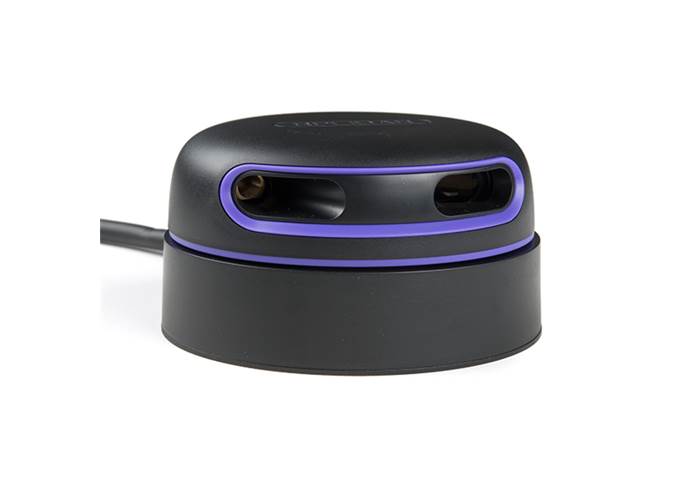

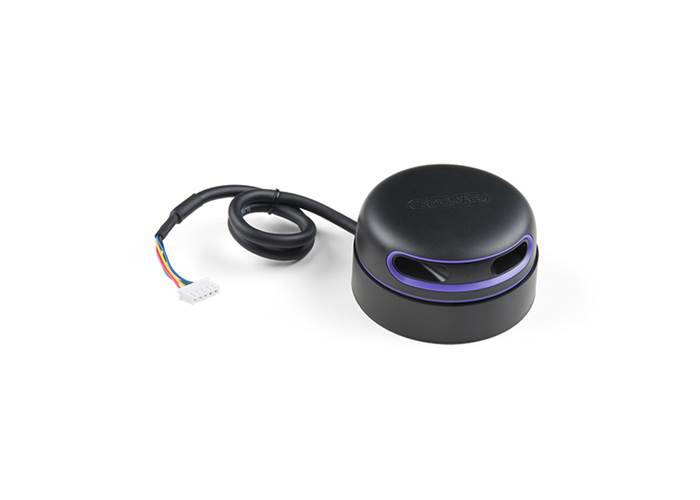

The RPLIDAR A3M1 consists of a long range scanner core and mechanical powering parts which makes the core rotate at a high speed. When it functions normally, the scanner will rotate and scan clockwise allowing you to be able to get the range scan data via the communication interface of the RPLIDAR and control the start, stop and rotating speed of the rotation motor via PWM. The typical scanning frequency of the RPLIDAR A3 360° Laser Scanner is 10hz (600rpm) with a scanning frequency that can be freely adjusted within the 5-20Hz range according to the requirements of what you need.

What makes the A3M1 special is its ability to switch between two different modes of operation (mentioned earlier): enhanced mode and outdoor mode. In enhanced mode, the RPLIDAR works within the maximum ranging radius and sampling rate to for optimum mapping performance in indoor environments. While in the outdoor mode, the RPLIDAR A3M1 works with a more reliable resistance to daylight interference, which prevents it from being “blinded” in outdoor environments.

Thanks to the improvements in SLAMTEC hardware operating performance and related algorithm, RPLIDAR A3M1 works well in all kinds of indoor environment and outdoor environment with direct sunlight. Also, before leaving the factory, every RPLIDAR A3 has passed strict testing to ensure the laser output power meet the eye safety standards of IEC-60825 Class I.

Includes:

  • 1x RPLIDAR A3M1
  • 1x USB Adaptor
  • 1x micro-USB Cable
  • 1x Power Adaptor

Specifications

  • Max Distance Range:
    • Enhanced Mode: 25m
    • Outdoor Mode: 20m
  • Angular Resolution:
    • Enhanced Mode: 0.3375°
    • Outdoor Mode: 0.54°
  • Sample Rate:
    • Enhanced Mode: 16000 per second
    • Outdoor Mode: 10000 per second
  • Scan Rate Typical Value: 15 Hz (adjustable between 5Hz-20Hz)
  • Communication Speed: 256000bps
  • Communication Interface: TTL UART
