DB15 Screw Terminal Adapter for MCP23X/26X Advanced Motor Controllers

This screw terminal breakout adaptor for a DB15 (sometimes also called DA-15) connector is designed to work with the MCP233 , MCP236 , MCP263 , and MCP266 Advanced Motor Controllers.

AUD$ 24.95

In stock in Australia

Shipping from $7.90

+lots more from our supplier in 21 Days

Our Code: SKU-005495

Supplier Link: [BasicMicro MPN:IMC601]


Description

This adaptor breaks out connections from a 15-pin D-subminiature connector (popularly called DB15, but more properly DA-15) to a set of screw terminals, making accessing those pins easier during prototyping. The adaptor is designed specifically to work with the MCP Advanced Motor Controllers that feature a DB15 connector: the MCP233, MCP236, MCP263, and MCP266. However, it could also be used as a generic breakout board for other hardware that uses the same connector, like old computer joysticks or MIDI devices (where it is called a game port).

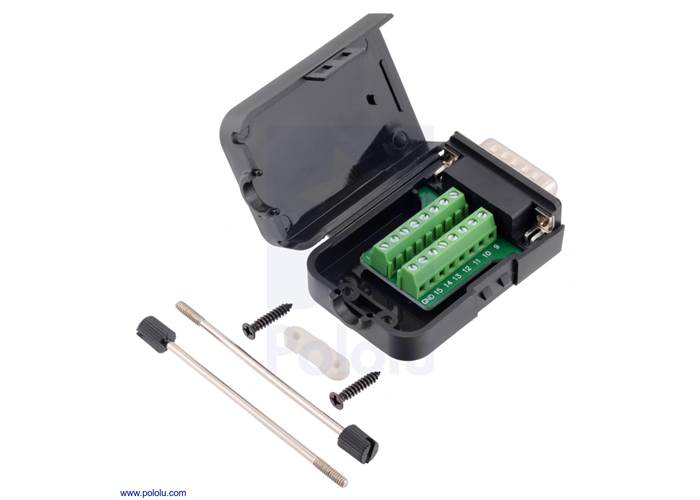

DB15 Screw Terminal Adapter for MCP23X/26X Advanced Motor Controllers with included hardware. (1)

DB15 Screw Terminal Adapter for MCP23X/26X Advanced Motor Controllers.

DB15 screw terminal adapter mated to an MCP266 Advanced Motor Controller. (1)

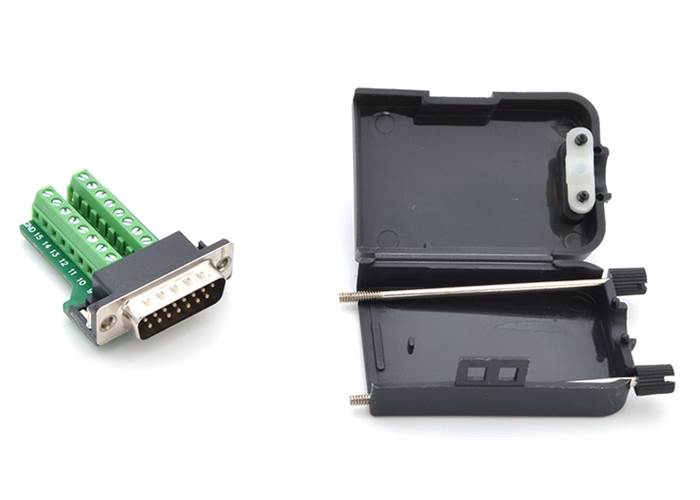

The adaptor includes a plastic housing, connector screws, and a small clip that can be screwed into the housing for wire strain relief.

DB15 Screw Terminal Adapter for MCP23X/26X Advanced Motor Controllers with included hardware.


Specifications

Dimensions

Size: 2.6″ × 1.7″ × 0.8″1
Weight: 40 g

Notes:

1
The adaptor length, 2.6″, excludes the screw knobs, which extend the length by about 0.3″ when installed and fully tightened.
