These magnetic discs can be used with our 20D mm metal gearmotors (extended motor shaft versions only) as part of a quadrature encoder system that offers 12 counts per revolution . They are 2 mm thick with an outer diameter of 9.7 mm and an inner diameter of 2.0 mm.
Special Order
Shipping from $2.90
+3655 more from our supplier in 7-10 days
Our Code: SKU-006172
Supplier Link: [Pololu MPN:3449]

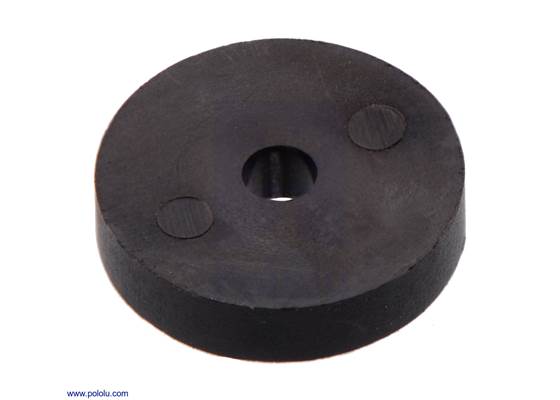

These magnetic discs are 2 mm thick with a 9.7 mm diameter, and the hole through the centre enables them to securely press-fit onto the 2mm-diameter motor shafts of our 20D mm metal gearmotors (extended motor shaft versions only). The disc consists of six evenly spaced magnetic poles (three north-south pairs), which allows for an encoder system that offers 12 counts per revolution. A 20 CPR version of this disc is also available.
This bulk-packaged product is primarily intended for those wanting to integrate these encoder discs into their own systems in higher volumes, but the minimum quantity is set to five for those who want to just get a few as replacements or samples. For order quantities beyond what we have in stock, please contact us for lead time estimates.
| Size: | 9.7 mm outer diameter × 2 mm thick (2.0 mm ID) |
|---|---|
| Weight: | 0.5 g |
| Poles: | 6 |
|---|---|
| Encoder resolution: | 12 CPR1 |
