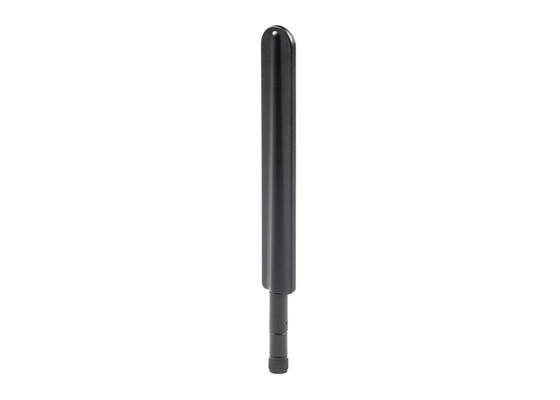

698MHz-2.7GHz LTE Hinged External Antenna, with SMA Male Connector

Molex LTE/5G Cellular External Antennae are designed for 2G/3G/4G/5G modules and devices. The hinged type antennae offer excellent coverage and reliability with high efficiency and peak gain. The series offers design flexibility with connectors in straight and folded modes with SMA-J and RP-SMA-J mounting options. LTE/5G Cellular Antennae are offered in both black/white and male/female and are ideal for various wireless and networking applications.

• Minimum Frequency: 698 MHz
• Maximum Frequency: 2.69 GHz
• Application: Cellular LTE
• Gain: 2.3 dBi
• Bandwidth: 698 MHz, 2.7 GHz
• Number of Bands: 2 Band

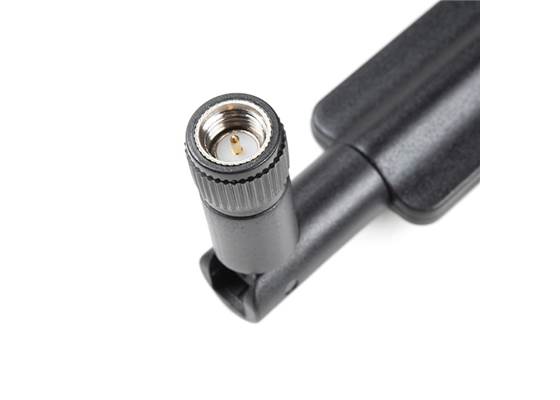

• Hinge joint allows 90º rotation on the vertical plane and SMA-J connector allows 180º rotation on the horizontal plane.

• Datasheet
• Product Specifictaion
• Application Specification
• Mechanical Drawing
