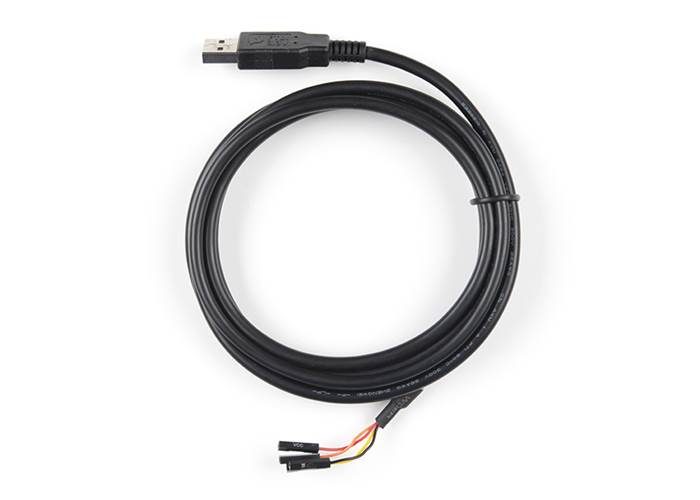

USB to TTL Serial Cable (5V VCC)

This is a USB to TTL Serial Cable which allows for a simple way to connect TTL interface devices to USB. The I/O pins of this cable are configured to operate at 3.3V specifically with a Raspberry Pi with each serial pin broken apart.

AUD$ 13.95

In stock in Australia

Shipping from $7.90

+2383 more from our supplier in 7-10 days

Our Code: SKU-007287

Supplier Link: [SparkFun MPN:17831]


Description

This is a USB to TTL Serial Cable which allows for a simple way to connect TTL interface devices to USB. The I/O pins of this cable are configured to operate at 3.3V specifically with a Raspberry Pi with each serial pin broken apart. Thanks to its separated pins, this cable is a perfect candidate for powering, connecting, and accessing the login and debug console on an older-version Raspberry Pi.

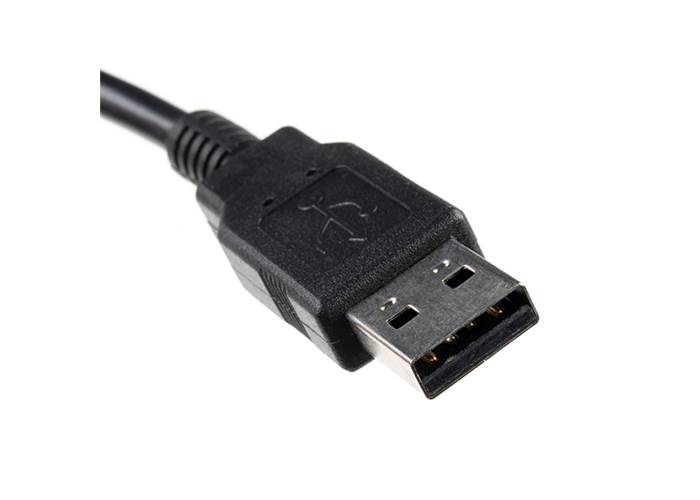

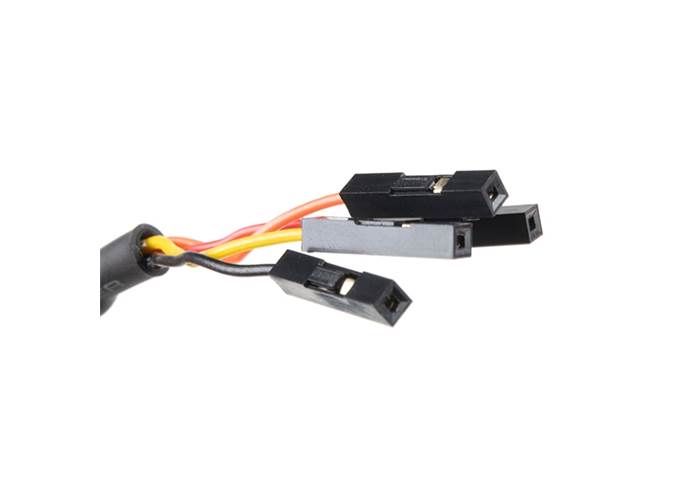

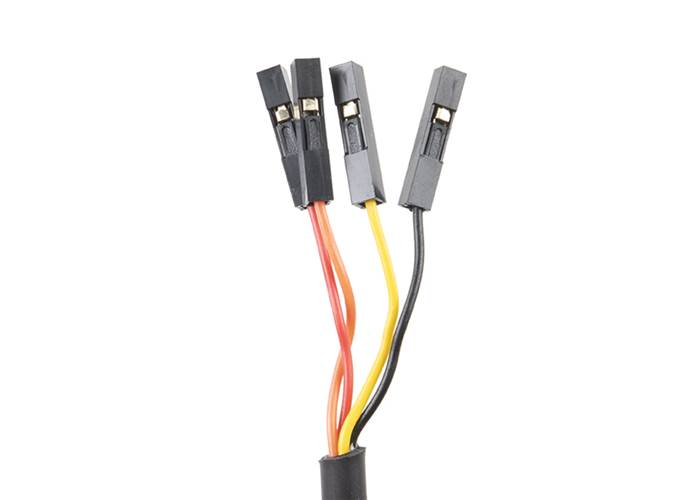

The FTDI cable is designed around an FT232, which is housed in a USB-A connector. The other side of the cable is terminated with a separated 4-pin connector with the following pinout: RX (Yellow), TX (Orange), VCC (5V) (Red), and GND (Black). A link to the FTDI drivers can be found in the Documents section above.

Note: Please be aware that while the I/O pins in this cable operate at 3.3V, the VCC pin is 5V. The VCC pin is NOT 3.3V like the I/O pins. The USB end of this cable is incorrectly labelled as 3.3V but it is 5V.
