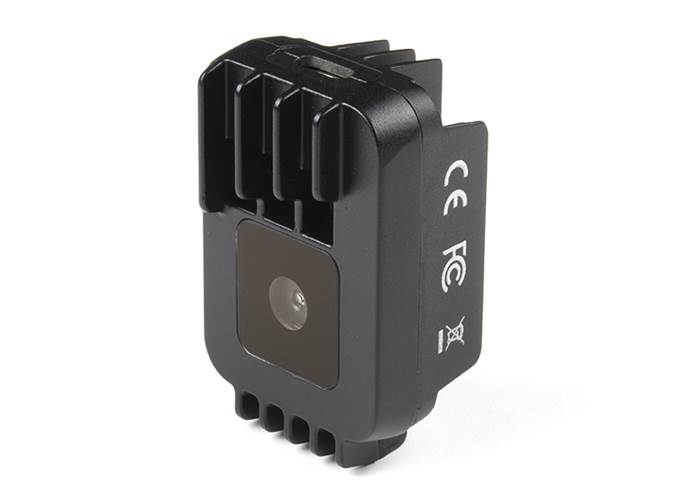

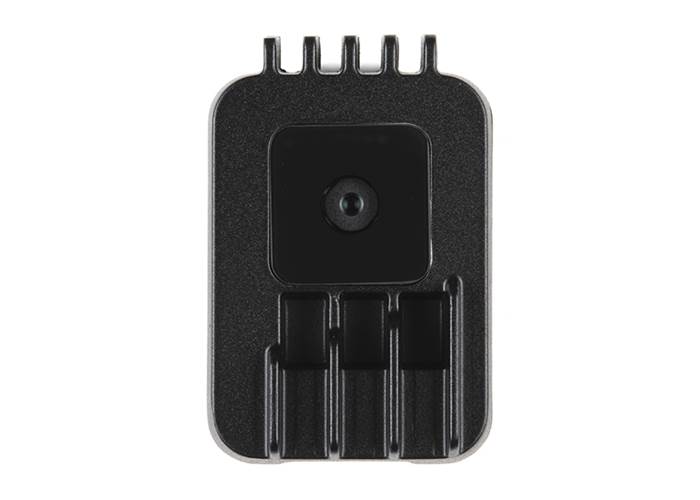

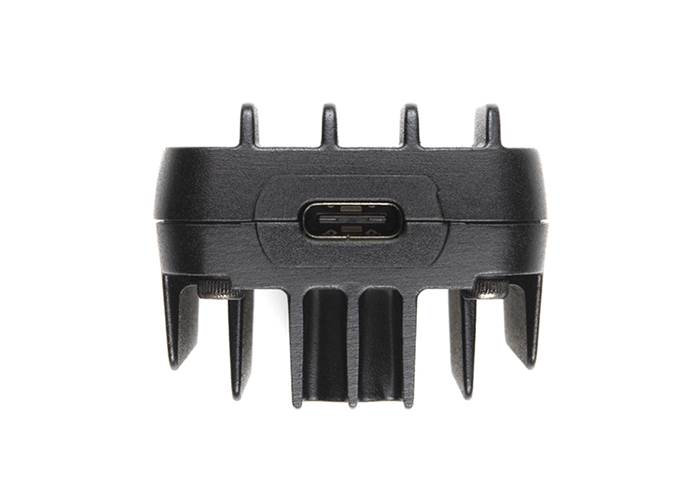

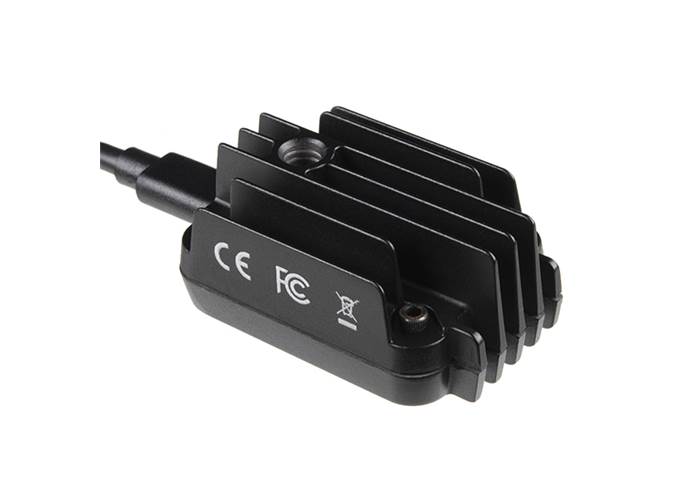

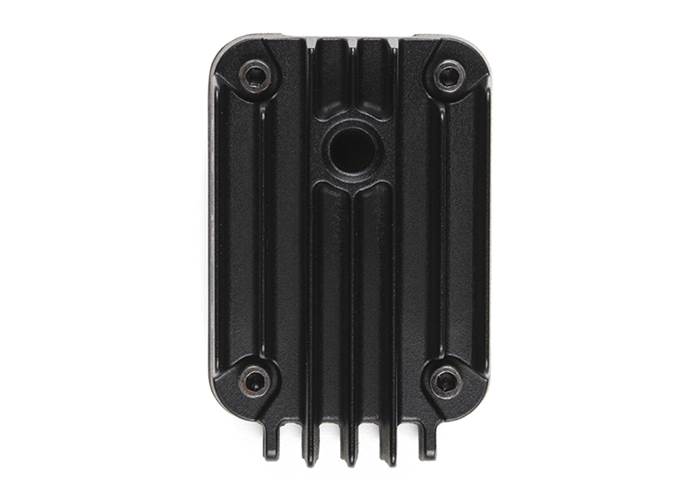

The Oak-1 is an all-in-one machine vision solution. It’s a 4-trillion-operations-per-second AI powerhouse that performs your AI models on-board, so that your host is free to do whatever you need it to do.
Special Order
Shipping from $7.90
+31 more from our supplier in 7-10 days
Our Code: SKU-007599
Supplier Link: [SparkFun MPN:17769]
The Oak-1 is an all-in-one machine vision solution. It’s a 4-trillion-operations-per-second AI powerhouse that performs your AI models on-board, so that your host is free to do whatever you need it to do.
Its integrated 12 MegaPixel camera module communicates over an on-board 2.1 Gbps MIPI interface directly to the Myriad X, which ingests this data and performs neural inference on it, returning the results over USB.
Such a data path offloads the host processor from all of this work. In the common use case of object detection from a 12MP image, this means your host is now dealing with a 24 Kbps stream of what the objects are and where they are in the image, instead of a 2.1 Gbps stream of video. So an 87,500 reduction in data your host has to deal with.
And such a reduction means that even on relatively-slow hosts, one can use dozens of Luxonis OAK-1 without burdening the host CPU.
As an example, below is an example of running MobileNet-SSD:
OAK-1 + Raspberry Pi: 50+FPS, 0% RPi CPU Utilisation
NCS2 + Raspberry Pi: 8FPS, 225% CPU Utilisation
