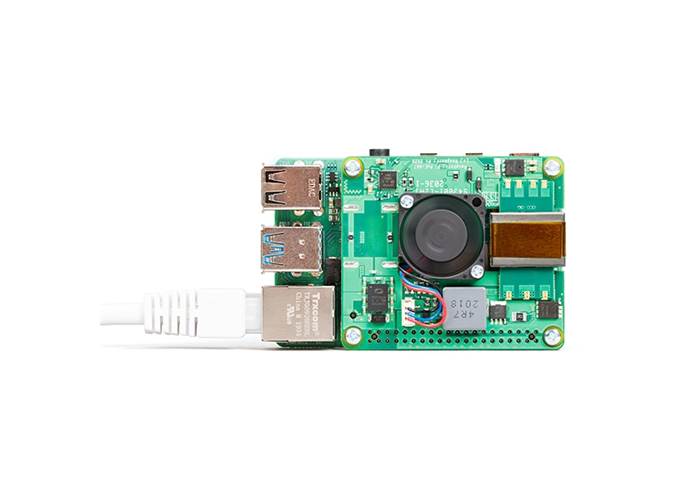

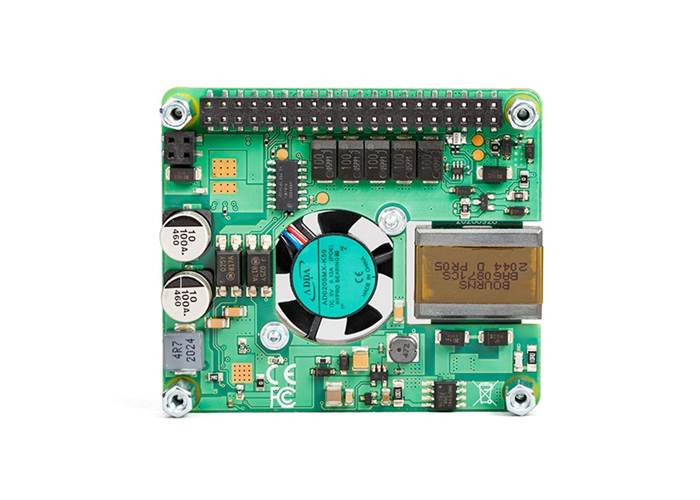

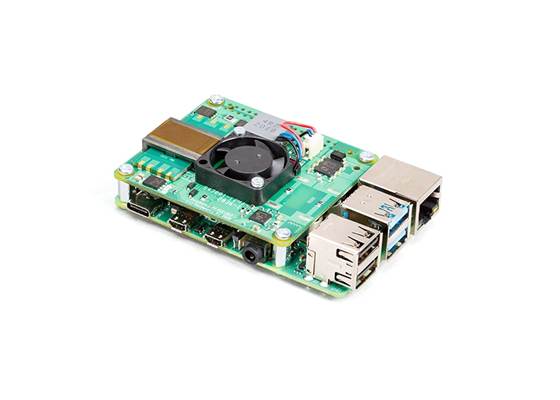

Raspberry Pi PoE+ HAT

The Raspberry Pi PoE+ HAT is designed to replace the existing Raspberry Pi PoE HAT in all new and existing designs. Like the original, the PoE+ HAT allows you to power your Raspberry Pi using Power over Ethernet networks.

AUD$ 46.95

Special Order

Shipping from $7.90

+149 more from our supplier in 7-10 days

Our Code: SKU-007626

Supplier Link: [SparkFun MPN:18346]


Description

The Raspberry Pi PoE+ HAT is designed to replace the existing Raspberry Pi PoE HAT in all new and existing designs. Like the original, the PoE+ HAT allows you to power your Raspberry Pi using Power over Ethernet networks. The PoE+ HAT meets all the requirements of the IEEE 802.3af (802.3at Type 1, PoE+) specifications. This ups the power the network can supply from 15.4 watts (PoE) to 25.5 Watts (PoE+) over CAT5 cable.

No modification to the main Raspberry Pi board is needed for the PoE+ HAT to work but you will need to ensure that your Pi’s software is up to date for all functionality to be available. The Raspberry Pi PoE+ HAT is fitted with a small fan that is controlled by the Raspberry Pi via I2C and will turn on and off automatically depending on the temperature of the main processor on your Pi.

Note: There is no Raspberry Pi included with this product. Your desired Pi will need to be purchased separately.

Important: The Raspberry Pi PoE+ HAT is available for pre-order. Orders are expected to be fulfilled by late June and in the order they are received. If you are ordering this product alongside "Live/in-stock" products and want to receive these products ASAP, be sure to designate your order for split shipments in checkout.

Specifications

  • Input voltage: 37-57V DC, Class 2 device
  • Output power: 5V DC/3.0A
  • Cooling: 25mm x 25mm brushless fan delivering 2.2CFM for processor cooling
  • Fully isolated switch-mode power supply
  • Fan control
  • Mechanically compatible with the existing Raspberry Pi PoE HAT
