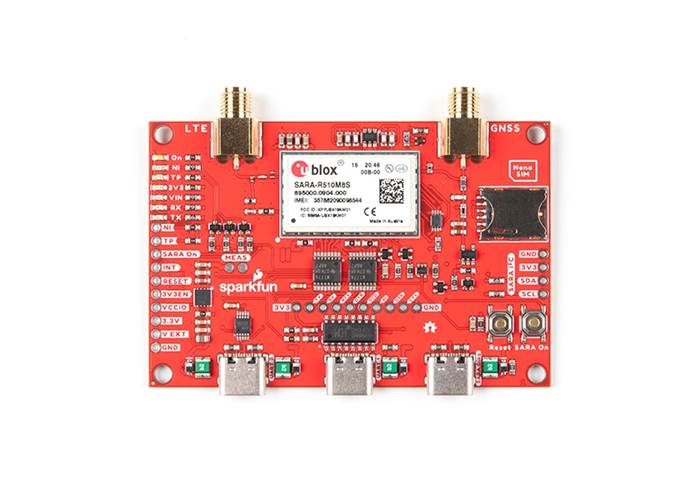

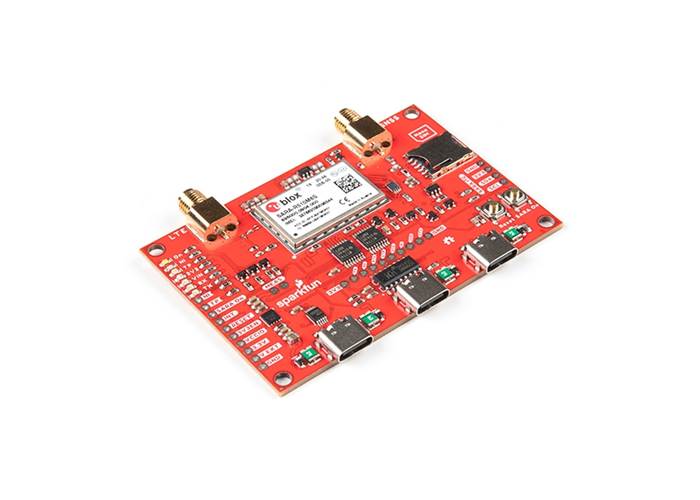

SparkFun LTE GNSS Breakout - SARA-R5

The SparkFun SARA-R5 LTE GNSS Breakout is a robust development tool for u-blox's impressive SARA-R510M8S LTE-M / NB-IoT module. The SARA-R510M8S LET-M / NB-IoT module combines u-blox's UBX-R5 cellular chipset with their M8 GNSS receiver chipset to provide a 5G-Ready wireless IoT device complete with positioning data all on a single chip.

The UBX-R5 chipset supports many different forms of data communication from full TCP/IP sockets and packet switched data, through HTTP Get/Put/Post, FTP (the SARA has a built-in file system), Ping, to good old SMS text messaging! The built-in u‑blox M8 GNSS receiver provides accurate and reliable positioning with a separate GNSS antenna interface for an external antenna. Both the GNSS antenna and LTE connections are made via a pair of SMA connectors.

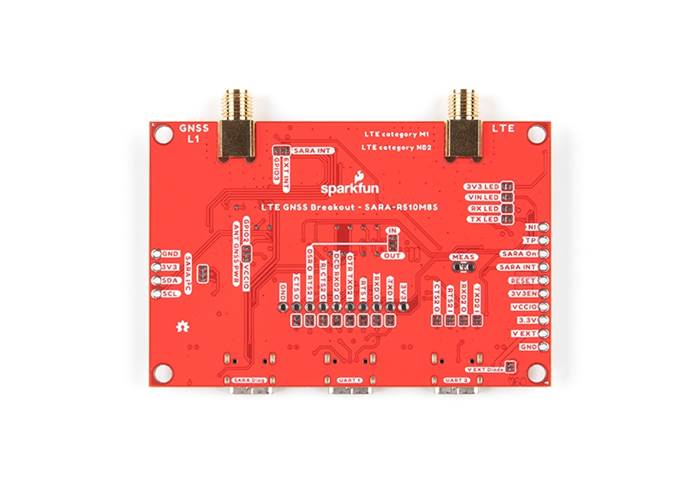

This breakout routes nearly all of the functional pins on the SARA-R510M8S module to user interfaces (USB or plated-through hole) so you can take full advantage of all of the features available on this impressive LTE/GNSS module. The SARA-R5's UART interface can be configured into one of five variants, providing connectivity over one or two UARTs. A separate USB port provides access to the SARA's trace log for diagnostic purposes. This breakout provides access to all three interfaces (UART1, UART2 and SARA Diag) via three separate USB-C connections. All eight 3.3V serial signals are available on a 0.1"-pitch breakout header. Separate 0.1"-pitch headers break out the SARA's I²C bus, power pins as well as GPIO pins for various functionalities.

Includes:

• 1x SparkFun LTE GNSS Breakout - SARA-R5
• 1x Hologram eUICC SIM Card

• u-blox SARA-R510M8S module providing Secure Cloud LTE-M and NB-IoT data communication for multi-regional use
  • Please check that your service provider offers LTE-M / NB-IoT coverage for your area before purchasing
• Integrated u-blox M8 GNSS receiver for accurate positioning information
• Nano SIM socket
• Separate, robust SMA connections for LTE and GNSS antennae
• Switchable 3.3V power for an active GNSS antenna
• USB-C connectivity
• LED indicators for:
  • Power (VIN and 3.3V)
  • SARA-R5 on
  • Network indicator
  • GNSS timing pulse (1PPS)
• 3.3V plated through-hole (PTH) pins for:
  • SARA on
  • Network indicator
  • UART1
  • GNSS timing pulse (1PPS)
  • I²C bus

LTE GNSS Breakout - SARA-R5 Documentation

• Schematic
• Eagle Files

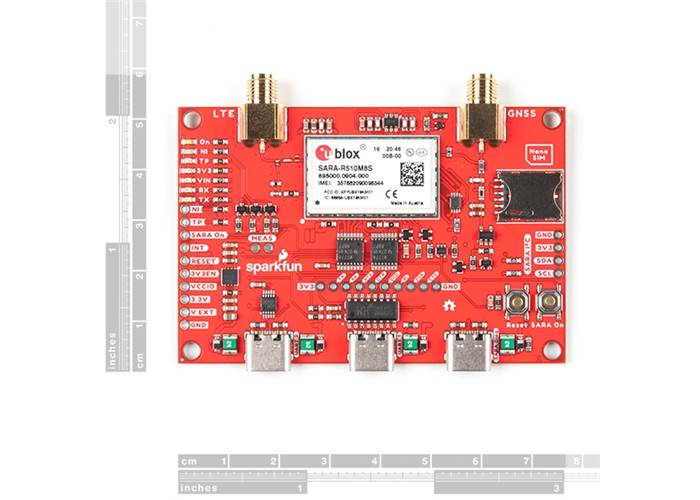

• Board Dimensions
• Hookup Guide
• SparkFun u-blox SARA-R5 Arduino Library
• GitHub Hardware Repository

u-blox SARA-R5 LTE-M / NB-IoT Module Documentation

• Datasheet
• AT Command Set
• System Integration Manual
• Application Development Guide
• Internet Applications Development Guide
• GNSS Integration App Note
• Firmware Update App Note
