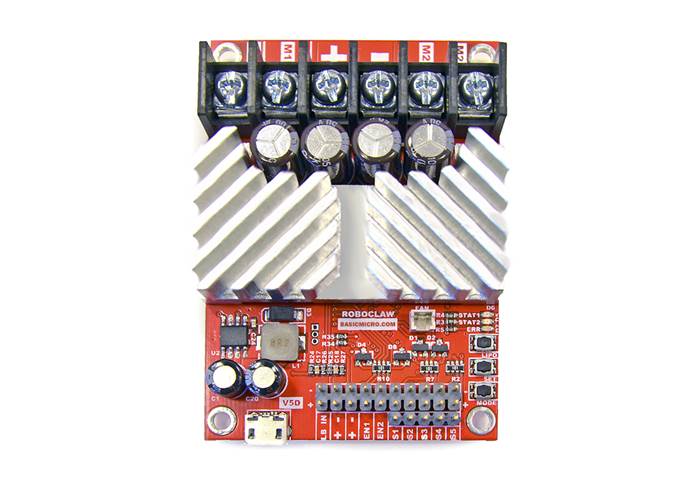

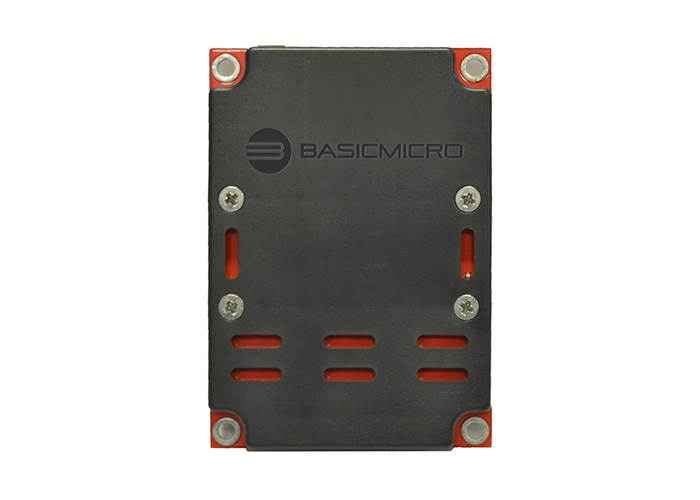

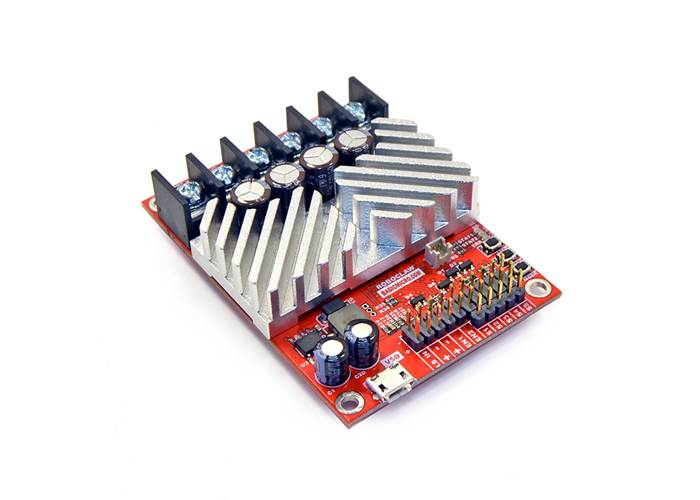

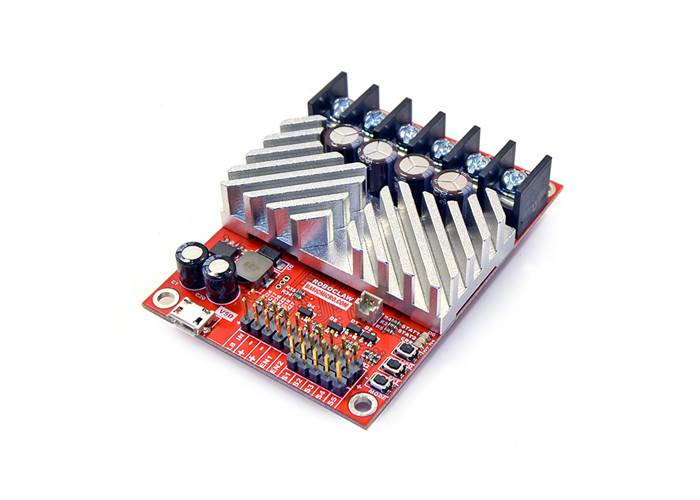

RoboClaw 2x30A Motor Controller

The RoboClaw 2x30A is an intelligent motor controller designed to control two brushed DC motors at 30 Amps continuous with up to 60 Amps peak per channel. It can be controlled from USB, RC radio, PWM, TTL serial, analog and microcontrollers such as an Arduino or Raspberry Pi.

AUD$ 269.95

Special Order

Shipping from $7.90

+lots more from our supplier in 21 Days

Our Code: SKU-007833

Supplier Link: [BasicMicro MPN:IMC413]

Description

The RoboClaw 2x30A is an intelligent motor controller designed to control two brushed DC motors at 30 Amps continuous with up to 60 Amps peak per channel. It can be controlled from USB, RC radio, PWM, TTL serial, analog and microcontrollers such as an Arduino or Raspberry Pi.

Key Features:

  • 30 Amps Continuous Per Channel
  • 60 Amps Peak Per Channel
  • Dual Encoders Supported
  • Position Control
  • Autotuning PID
  • Multimode Control Interface
  • USB, Serial, R/C, Analog Inputs
  • Limit, Home and E-Stops
  • Up to 34VDC Operation

RoboClaw automatically supports 3.3V or 5V logic levels, travel limit switches, home switches, emergency stop switches, power supplies, braking systems and contactors. Power supplies can be used by enabling the built in voltage clamping control feature. A built-in switching mode BEC supplies 5VDC at up to 3 Amps for powering user devices.

Brushed DC motors can be controlled in open or closed loop using position or velocity control modes. RoboClaw features several built-in commands for controlling acceleration, deceleration, distance, speed, current sense, voltage limits and more. RC and analog control modes also include several user defined settings such as acceleration and decelerate speeds.

Dual quadrature encoders with up to 19.6 million pulses per second are supported and can be auto tuned using Motion Studio which is a free downloadable application. In addition, a wide range of sensor inputs including potentiometers and absolute encoders are supported. RoboClaw's closed loop functionality creates absolute control over speed, velocity and direction regardless of load changes.

RoboClaw incorporates several protection features including temperature, current, over voltage and under voltage limits. The protection features are self monitoring and protect RoboClaw from damage in any operating condition. Several user definable settings such as maximum current limit, maximum and minimum battery voltages are provided for more refined control.

RoboClaw's regenerative capabilities will charge a supply battery during slow down or breaking. It's advance circuitry can change direction during full throttle without damage! RoboClaw also incorporates a LiPo cutoff mode to prevent battery damage.

Downloads

Specifications

Features


Motor Channels 2
Bridge Channels Yes
Peak Current per Channel 60A
Continuous Current per Channel 30A
Bridged Channels Peak Current 120A
Bridged Channels Continuous Current 60A
Max Voltage 34 VDC
BEC 5 VDC @ 3Amps
3.3V Safe Outputs Yes
5V Tolerant Inputs Yes
Quadrature Encoders Yes
Absolute Encoders Yes
Encoder Auto Tune Yes
Thermal Protection Yes
Current Sense Yes
User Selectable Peak Current Yes
Battery Protection Yes
Regenerative Braking Yes
Over Voltage Protection Yes
Under Voltage Protection Yes
Self Diagnostics Yes

Control


USB Yes
Analog Yes
RS232 Yes
RC Pulse Yes
Position Control Mode Yes
Velocity Control Mode Yes
Motor Type Brushed DC

Mechanical


Dimensions L: 74mm x W: 52mm x H: 17mm
Weight 61 grams
Enclosed No
Heat Sink Top Mounted Fins
Cooling Convection

Application Notes

The application notes listed below pertain to this product. Additional application notes can be found at the resources section of the BasicMicro website.
