The Motoron M3S256 Triple Motor Controller Shield for Arduino makes it easy to control DC motors from an Arduino or Arduino-compatible board through an I²C interface.
In stock in Australia
Shipping from $7.90
+96 more from our supplier in 7-10 days
Our Code: SKU-008640
Supplier Link: [Pololu MPN:5030]

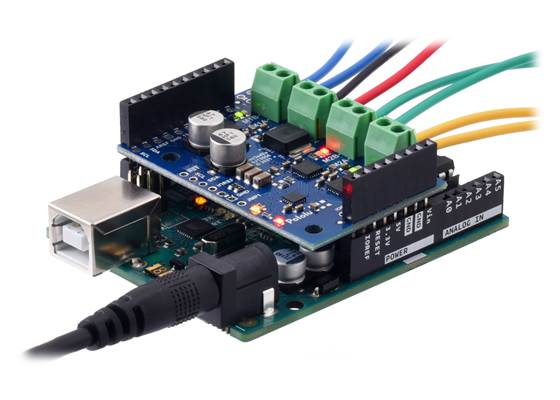

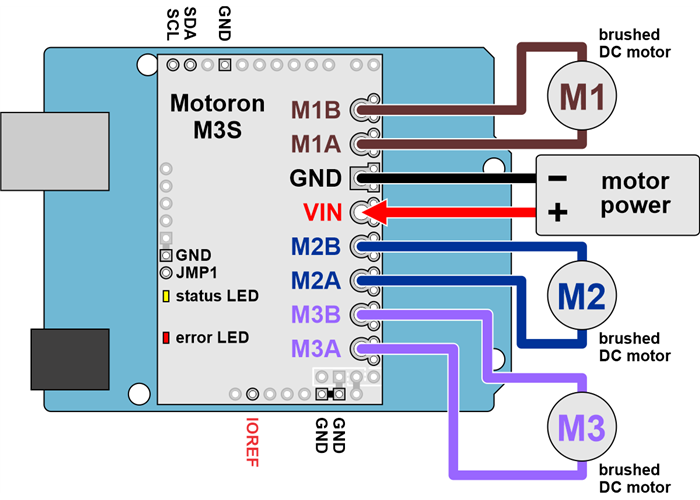

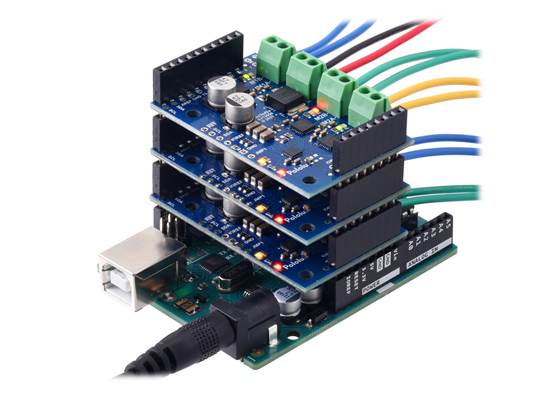

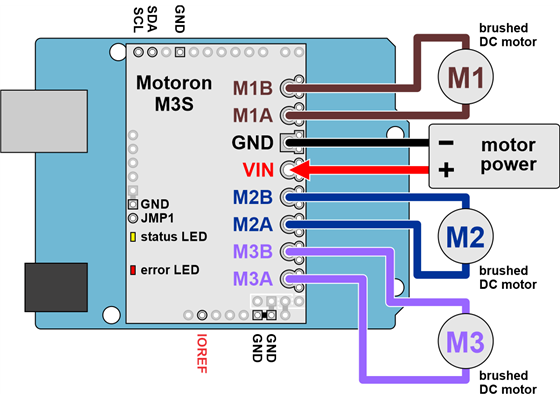

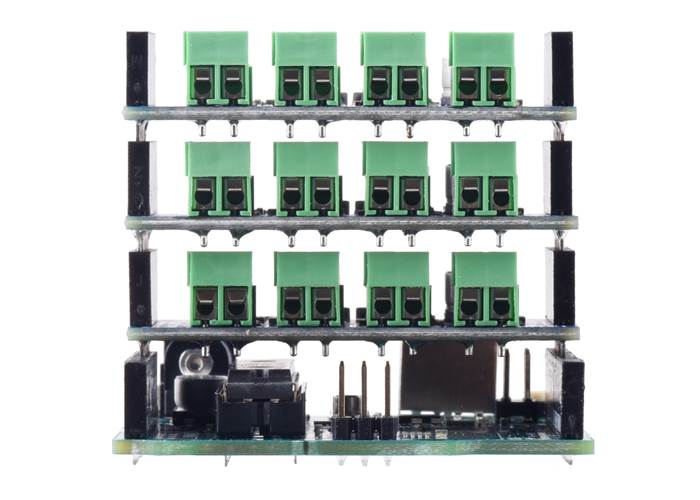

The Motoron M3S256 shield makes it easy to control up to three bidirectional, brushed DC motors with an Arduino or compatible board, such as the A-Star 32U4 Prime. It operates from 4.5 V to 48 V and can deliver continuous output currents up to 2 A per motor. Multiple Motoron controllers can be stacked on top of each other, allowing independent control of many motors. Unlike most of our motor drivers and motor driver shields, the Motoron does not require any PWM outputs or timers on your Arduino. Instead, the Arduino communicates with the Motoron using I²C, so only two I/O lines are needed regardless of how many Motorons you connect.
Three M3S256 versions are available to provide different options for the through-hole connectors:

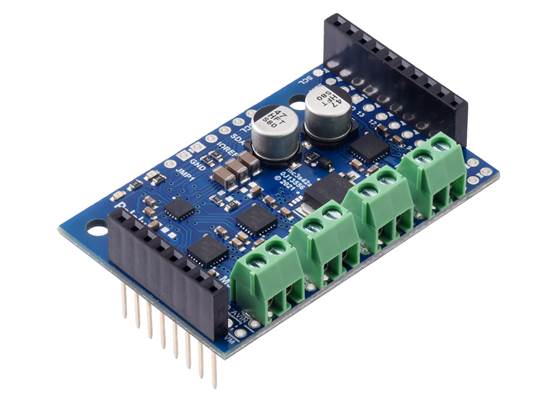

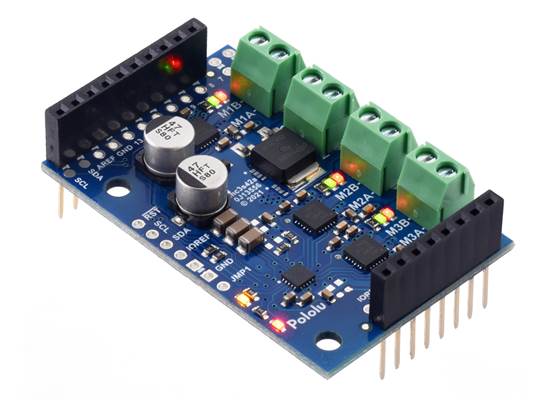

This version of the Motoron M3S256 ships with soldered stackable headers and terminal blocks.

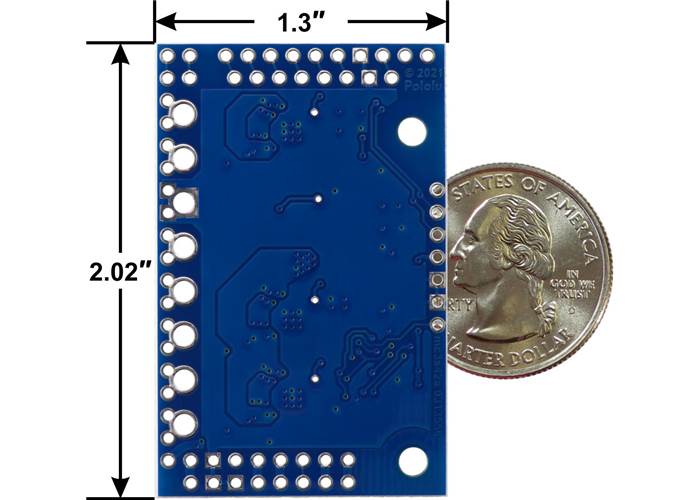

|1.3″ × 2.02″
|Minimum operating voltage:
|Maximum operating voltage:
|Continuous output current per channel:
|Peak output current per channel:
|Reverse voltage protection?:
|PCB dev codes:
|Other PCB markings:
User’s manual for the Pololu Motoron Motor Controllers.
This DXF drawing shows the locations of all of the board’s holes.
