These premium jumper wires are stranded 26 AWG wires with female terminations on both ends , for use with 0.1″ (2.54 mm) male headers and connectors. The assortment of 3″ (7.5 cm) wires includes five each of ten different colors.
These premium jumper wires, which are equivalent to our wires with pre-crimped terminals with 1×1 crimp connector housings already attached, are great for making quick and easy prototyping connections. They are available in three lengths—3″ (7.5 cm), 6″ (15 cm) and 12″ (30 cm)—and in ten colors:
These are the same colors as those used on resistor colour codes and rainbow ribbon cable. The 3″ cables are available as monochromatic 10-packs in six colors (black, red, yellow, green, blue, and white) and rainbow-assortment 50-packs (five pieces each of all ten colors). We offer the 6″ and 12″ cables as monochromatic 10-packs in all ten colors and rainbow-assortment 50-packs. For longer cables, see our wires with pre-crimped terminals, which are available in lengths of 3″, 6″, 12″, 24″, 36″, and 60″.

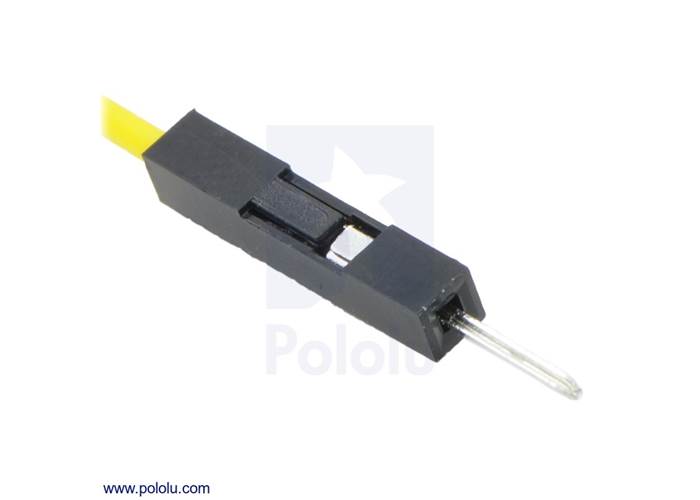

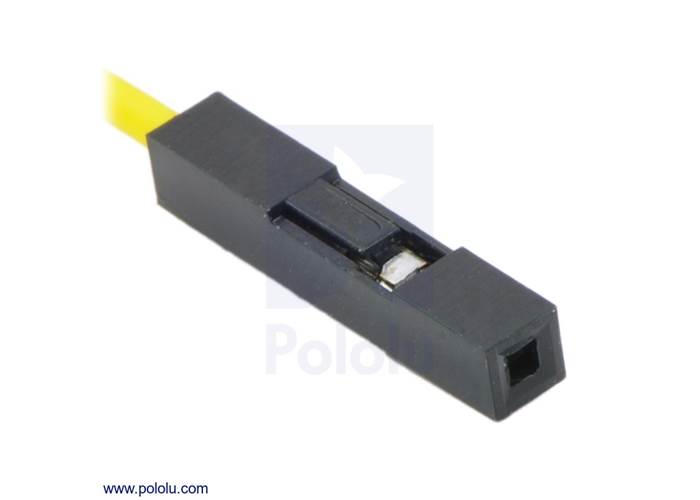

These wires can be purchased with male terminations on both ends, female terminations on both ends, or one male and one female termination. These terminations are designed for use with 0.1″ (2.54 mm) male headers and female headers, solderless breadboards, and prototyping PCBs. Close-up pictures of the male and female terminations are shown below.
The following video talks about some of our various wire and cable options:
Length: | 3 in |
---|
Gender: | Female-Female |
---|---|
Colour: | rainbow pack |
