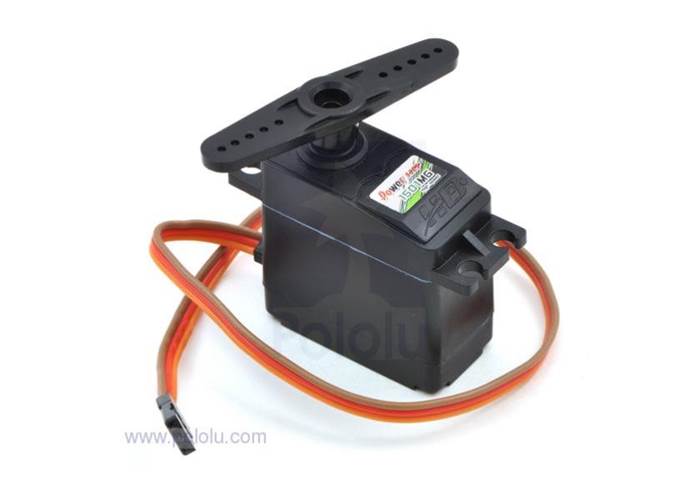

Power HD Analog Standard Size Extra High-Torque Servo 1501MG

The 1501MG is a metal-geared analog servo from Power HD that delivers extra-high torque normally associated with much more expensive or larger servos. Servo horns and associated hardware are included. Key specs at 6 V: 0.14 sec/60°, 240 oz-in (17 kg-cm), 60 g.

Not currently available

Our Code: MEC-30043

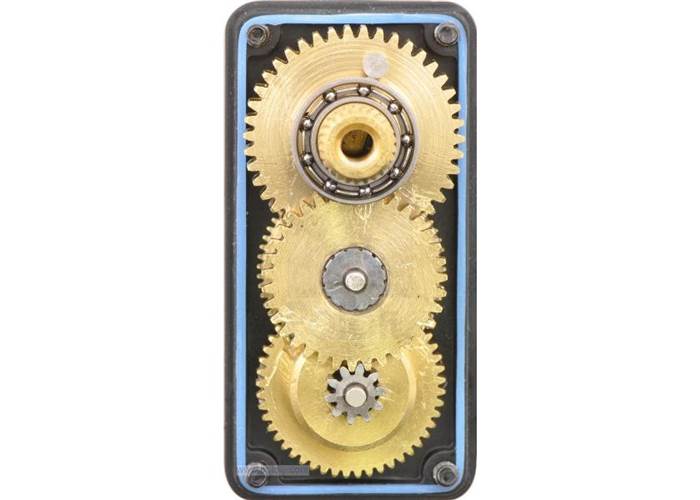

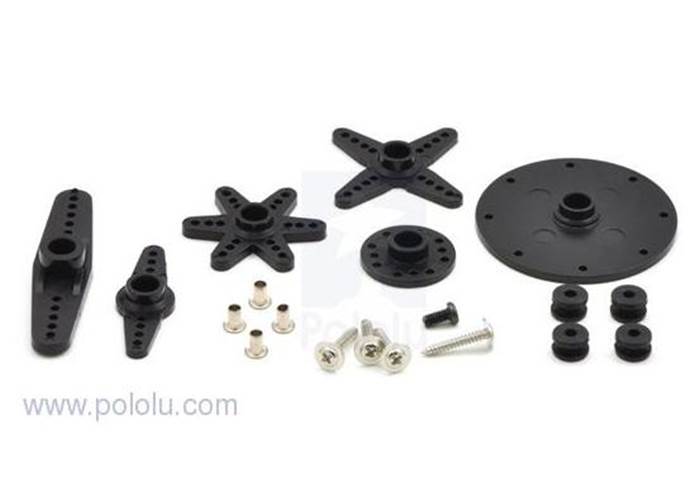

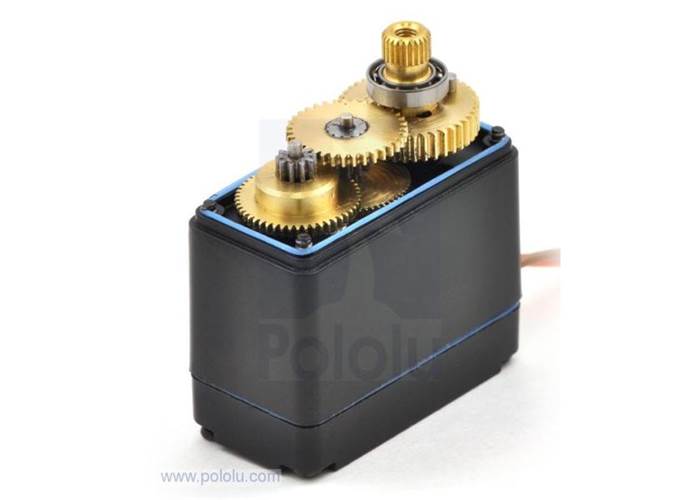

The HD-1501MG is a great high-quality, standard-size servo that features metal gears and two ball bearings and can deliver a tremendous amount of torque for a servo this fast. A replacement for the Power HD HD-2550A, it represents a significant performance upgrade for an even lower price. The picture below shows the hardware included with this servo. You can find more information about this servo under the specifications tab.




Size: 40.7 x 20.5 x 39.5 mm
Weight: 60 g

General specifications

Digital?: N
Speed @ 6V: 0.14 sec/60°
Stall torque @ 6V: 17 kg·cm
Speed @ 4.8V: 0.16 sec/60°
Stall torque @ 4.8V: 15.5 kg·cm
Lead length: 11 in
Hardware included?: Y
