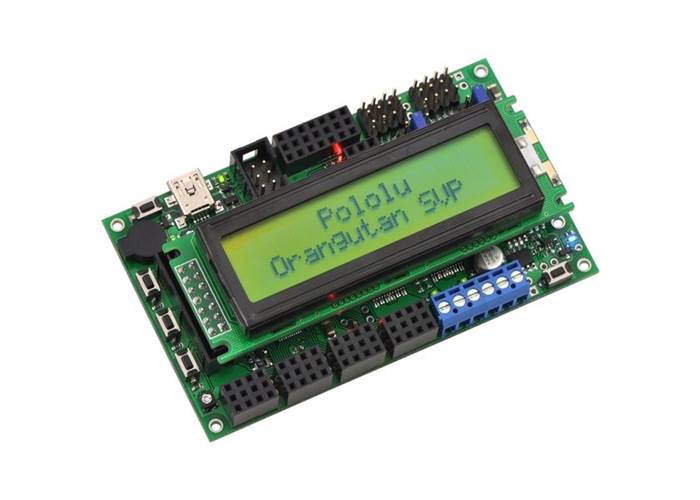

The Orangutan SVP-1284 robot controller is a super-sized version of the popular Orangutan SV, with a built-in AVR ISP programmer, more I/O lines, and more regulated power, and more memory. Based on the new ATmega1284 AVR microcontroller (128 KB flash, 16 KB RAM, 4 KB EEPROM) and featuring higher-power dual 2A motor drivers and a bigger 16×2 LCD
Not currently available
Our Code: MCU-60033
Supplier Link: [Pololu MPN:1327]

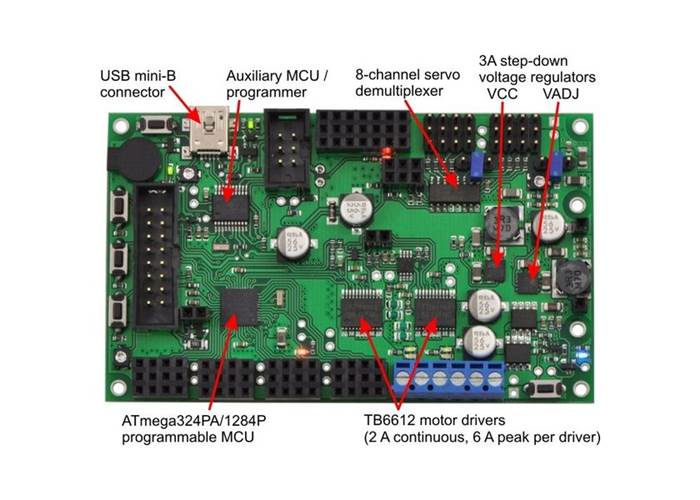

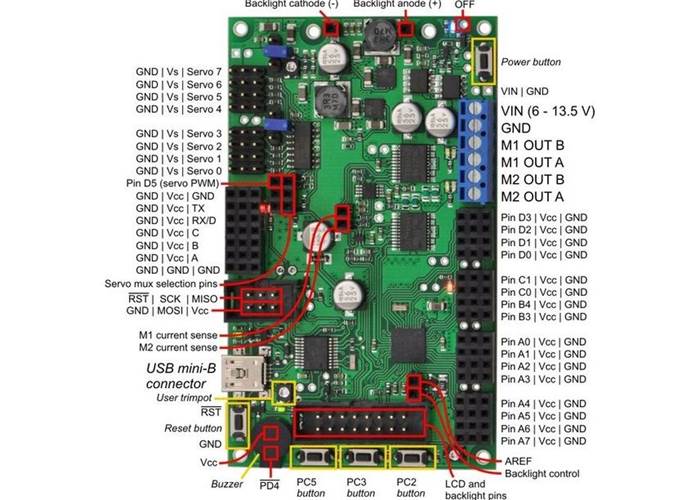

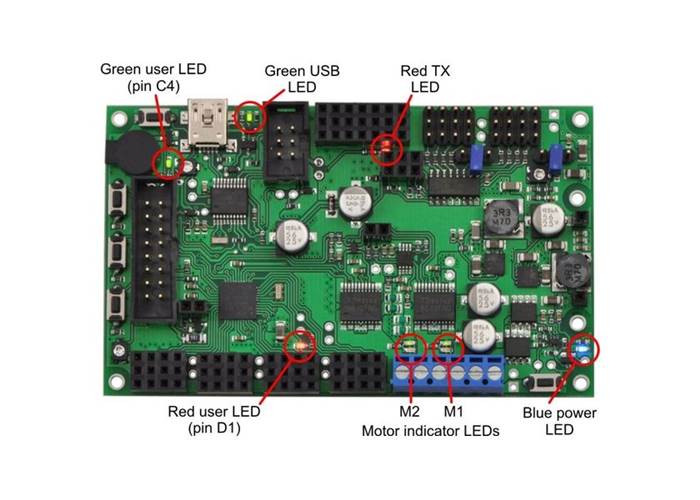

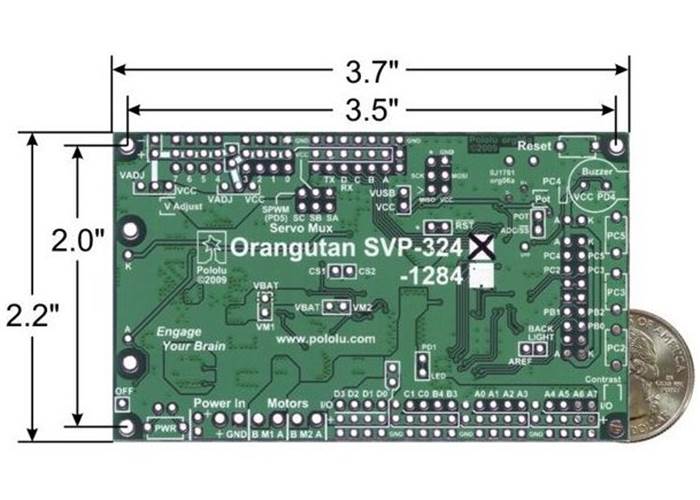

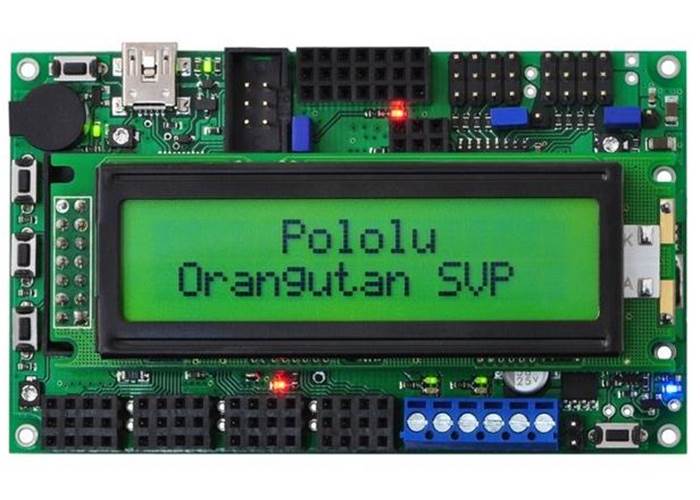

The Orangutan SVP robot controller is a complete control solution for small and medium-sized robots running at 6 – 13.5 V. The module is designed around the powerful Atmel ATmega1284P (128 KB flash, 16 KB RAM, and 4 KB EEPROM) running at 20 MHz and features a full complement of peripheral hardware to support robotics applications: dual motor drivers capable of delivering 2 A continuous (6 peak) per channel, a demultiplexer for easy control of up to eight servos with a single hardware PWM, a removable 16×2 character LCD with backlight, a user trimmer potentiometer, a buzzer for simple sounds and music, three user pushbuttons, and two user LEDs. The board also provides 21 free I/O lines, of which 12 can be used as analog inputs, and two switching buck (step-down) voltage regulators—one for the 5V bus and one adjustable from 2.5 V to 85% of VIN—each capable of supplying 3 A, which means there’s plenty of room and power for adding sensors, servos, and other peripherals.
In addition to the user-programmable ATmega1284 microcontroller, the Orangutan SVP features an auxiliary PIC18F14K50 MCU that supports the main processor and serves as an integrated AVR ISP programmer, which means that . This auxiliary processor provides a USB connection that allows direct communication with a PC, and its firmware lets it perform several useful tasks in parallel with the main microcontroller. For example, the auxiliary processor can read two quadrature encoders, such as encoders for Pololu wheel 42x19mm, without burdening the main MCU, or those same four inputs could be used as additional analog inputs. The user AVR can read data from the auxiliary MCU over SPI. A USB A to mini-B cable is included with the Orangutan SVP.
Because the Orangutan SVP gives the user direct access to the ATmega1284 microcontroller, it is compatible with all development software for Atmel’s AVR microcontrollers, including Atmel’s free AVR Studio and the WinAVR GCC C/C++ compiler. Pololu provide an extensive set of software libraries that make it easy to interface with all of the integrated hardware, including the auxiliary microcontroller. Using these libraries, it takes just a few simple lines of code to write to the LCD, read button presses, drive motors, and control servos. These libraries come with a number of sample programs that demonstrate how to use the various components on the Orangutan SVP.
Please check Pololu's resources page for the Orangutan SVP1284 for the most up to date documentation and samples. There is a heap of info available.
