Made from strong 3mm sheet aluminium the 6 degree of freedom robotic arm from Dagu comes complete with a 32 channel servo controller, gripper and PC control software.
Not currently available
Our Code: MEC-30092

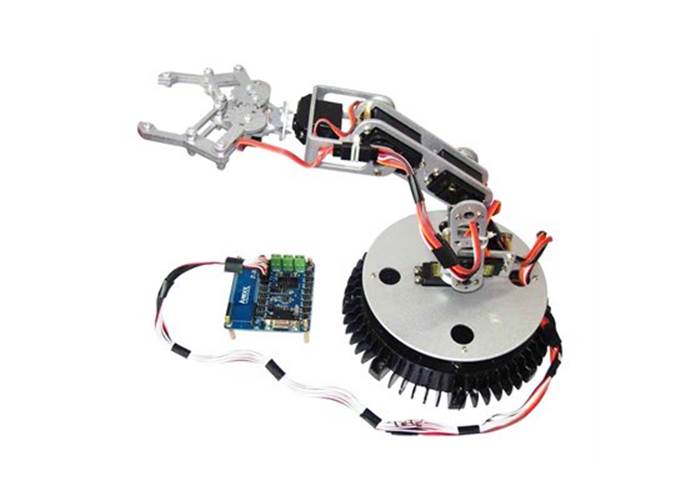

This Dagu 6 Degrees of Freedom Robotic Arm is made from 3mm thick aluminum sheet and uses 4x DGServo S06NF STD servos for the base and the arm. The 2x DGServo S05NF STD micro servos operate the wrist and gripper. The arm can be used to model the complex movement of human arms with its many joints.

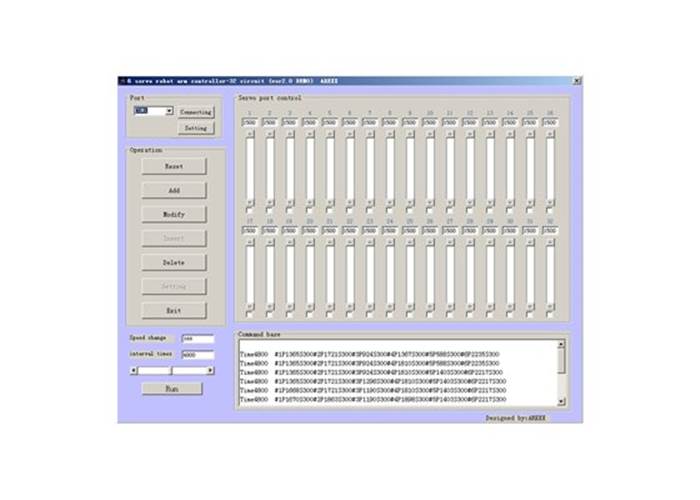

A serial interface and PC software is included.

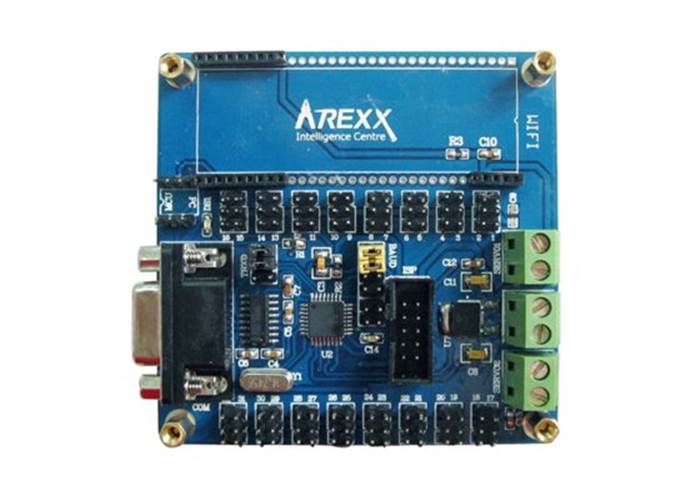

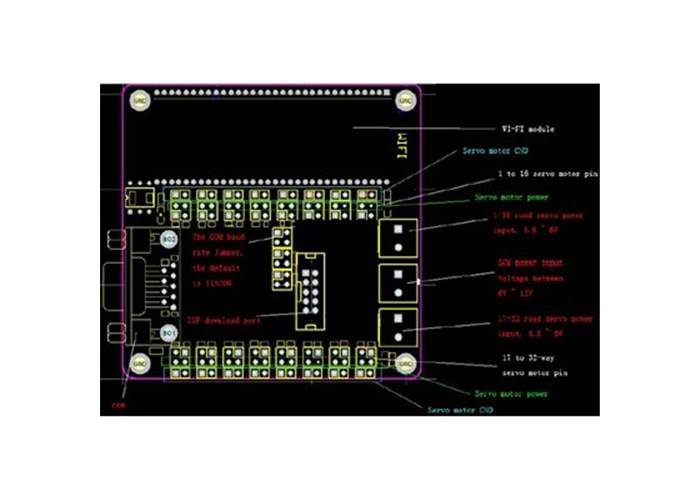

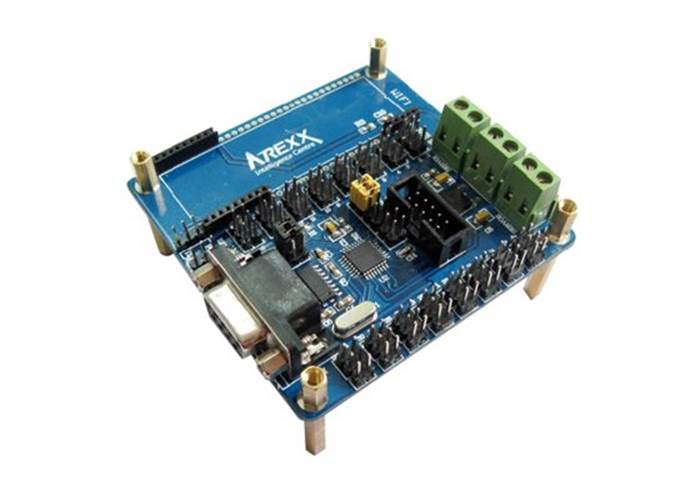

The arm includes a 32 channel servo controller sporting an Atmega168 MCU with seperate power supplies for servos and logic circuits.
Download the Dagu 6 DOF Robotic Arm Manual for more information.
Dagu Product Support for code samples
• 6 Degrees of freedom robotic arm

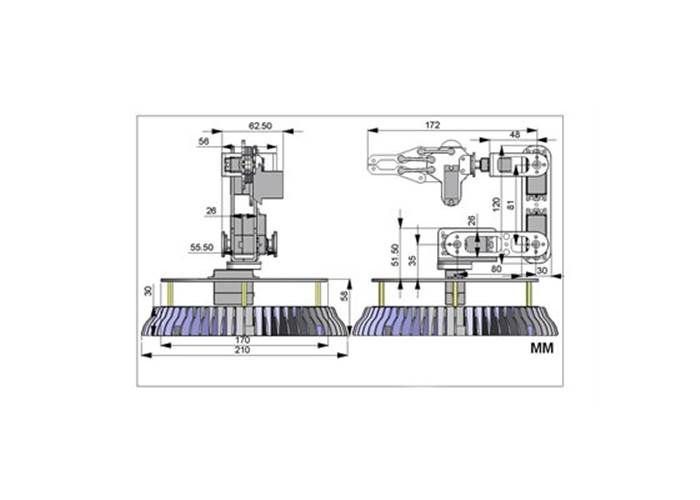

• Length: 390mm
• Made from 3mm thick aluminum sheet
• Wonderful mechanical structure, and control system
• A serial interface and PC software included
• Suitable for individual development and school competition
• Requires an external 4.5V to 6V power supply for the servomotors
