48:1 Gear Motor with two 90 deg outputs

This 48:1 gearmotor (gearbox with motor) has a low-current motor and provides power and speed that is comparable to an RC servo at a fraction of the cost. Designed to work with our plastic wheels.

Not currently available

Our Code: MEC-30191

Overview

This motor is a low cost drive system for robots and other robotics applications. The hobby DC motor has a wide operating voltage and the two output shafts allow for wheel and encoder mounting.

These gearboxes fit nicely with our plastic & rubber wheels and we also stock plastic gearmotor brackets to fit.

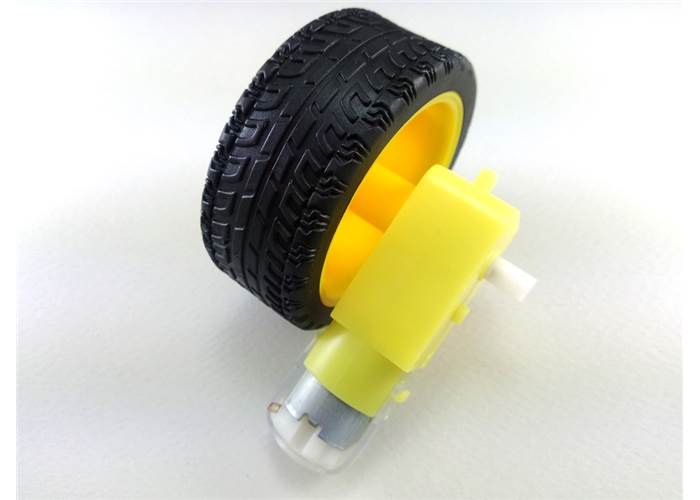

Plastic Gearmotor with 90 output - wheel mounted



Note: these motor shafts are not compatible with Solarbotics wheels and mounts (GMW).

Specifications

These are approximate specifications:

  • Suggested Voltage:4.5V DC , work fine from 3-6V
  • No load Speed:90±10rpm
  • No Load Current:190mA(max.250mA)
  • Torque:800gf.cm min

Dimensions

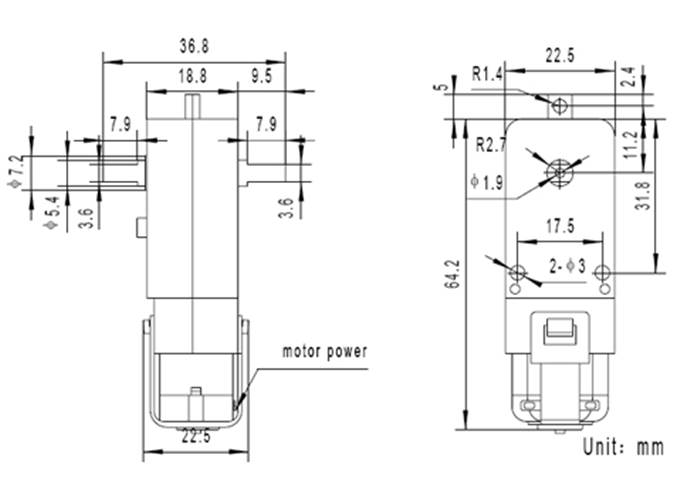

Gearmotor Dimensions
