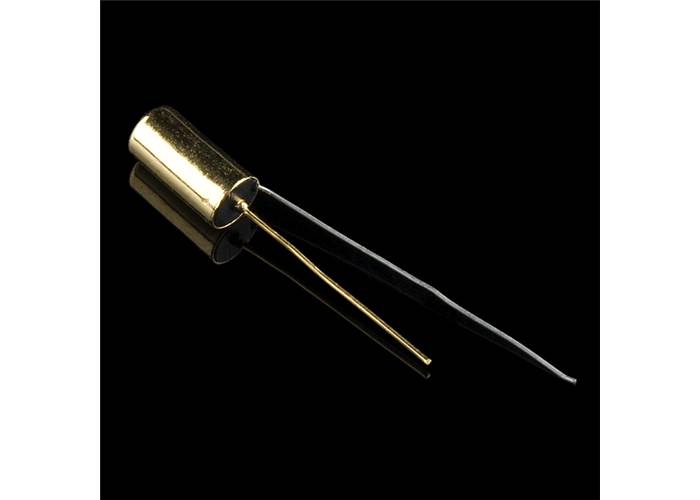

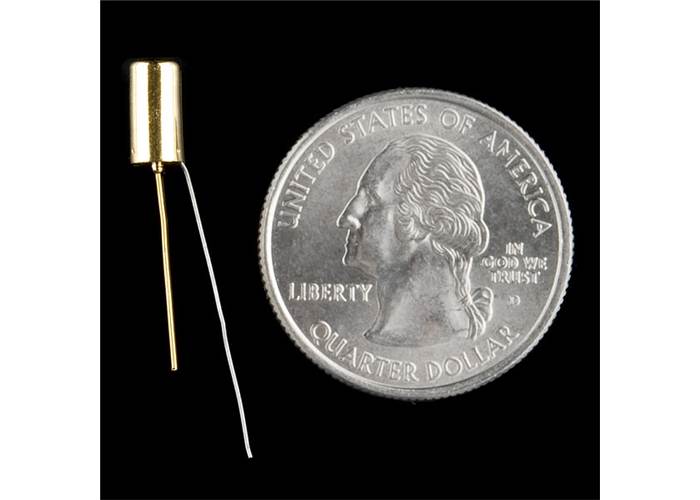

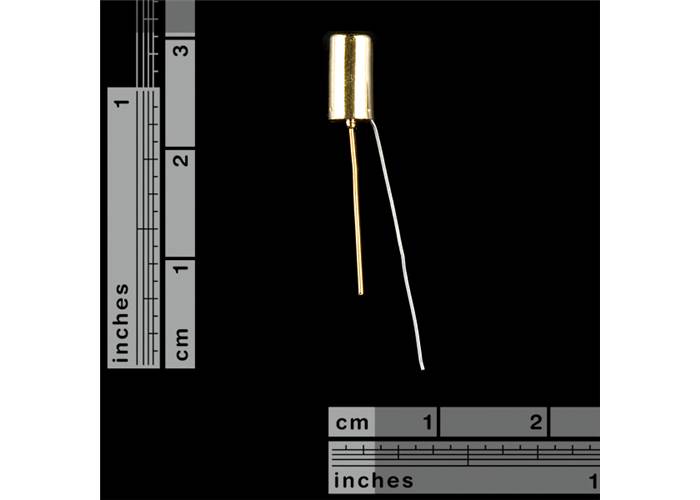

Tilt Sensor - AT407 Rolling Ball 6mA, Gold Plating

AT407 Tilt sensor with a small rolling metal ball inside that will hit contacts when the sensor is turned over. Simple, reliable orientation switch

AUD$ 2.60

In stock in Australia

Shipping from $2.90

+49 more from our supplier in 7-10 days

Our Code: SEN-10083

Supplier Link: [SparkFun MPN:10289]


Description

The AT407 is a simple device with a little rolling ball inside. When the sensor is turned over the ball will touch two pins causing a circuit to be formed. With a 50000+ cycle rating it will reliably detect when a device has been turned over. Much simpler to use than a gyroscope when all you need to know is if something has been turned or not.

Specifications

  • Electrical Rating : <6mA 24VDC
  • Electrical Life: >50,000 Cycles
  • Contact Resistance: 1Ω
  • Solder Temperature: 250℃ 3 Seconds
  • Ambient Temperature: 0℃~100℃
