Ultrasonic Distance Sensor - HC-SR04

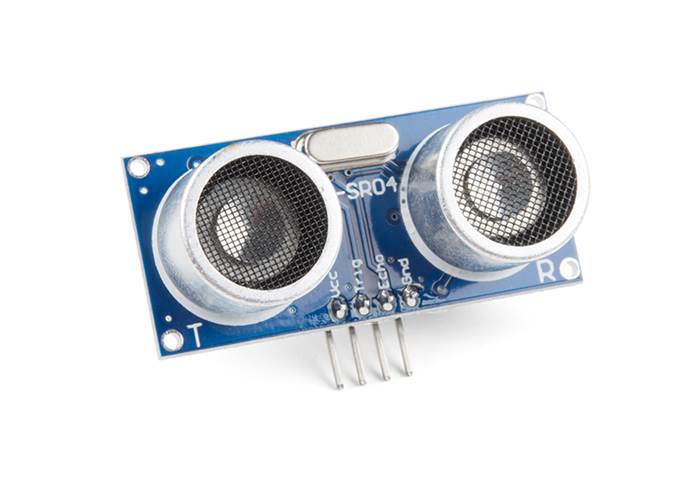

This is the HC-SR04 ultrasonic distance sensor. This economical sensor provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit.

AUD$ 6.95

In stock in Australia

Shipping from $7.90

+10817 more from our supplier in 7-10 days

Our Code: SKU-005852

Supplier Link: [SparkFun MPN:15569]


Description

This is the HC-SR04 ultrasonic distance sensor. This economical sensor provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit.

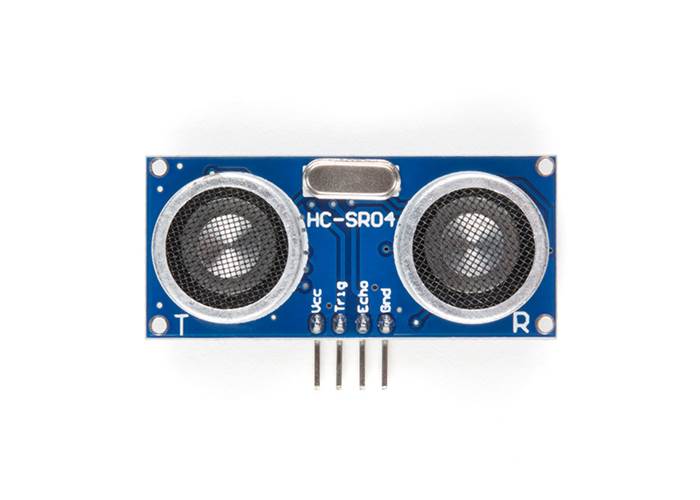

There are only four pins that you need to worry about on the HC-SR04: VCC (Power), Trig (Trigger), Echo (Receive), and GND (Ground). You will find this sensor very easy to set up and use for your next range-finding project!

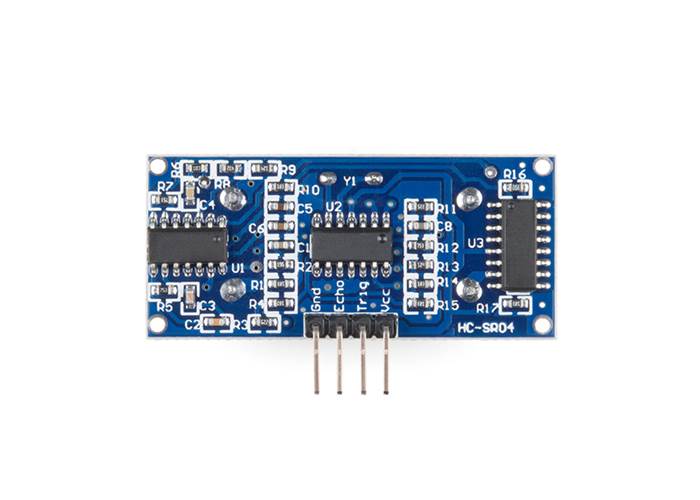

This sensor has additional control circuitry that can prevent inconsistent "bouncy" data depending on the application.


Specifications

  • Operating Voltage: 5V DC
  • Operating Current: 15mA
  • Measure Angle: 15°
  • Ranging Distance: 2cm - 4m
