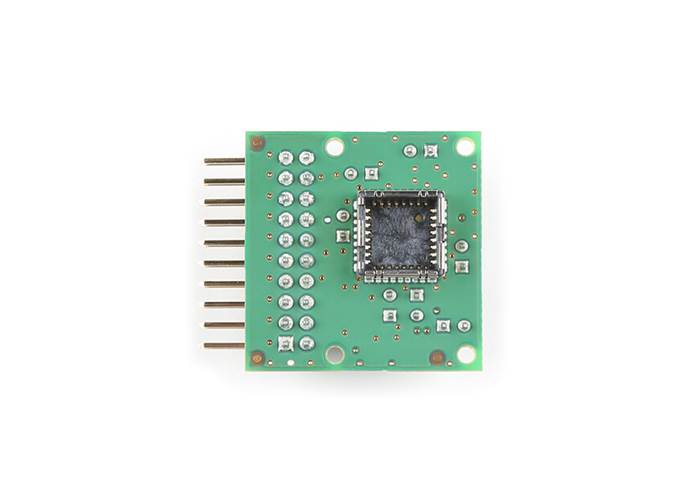

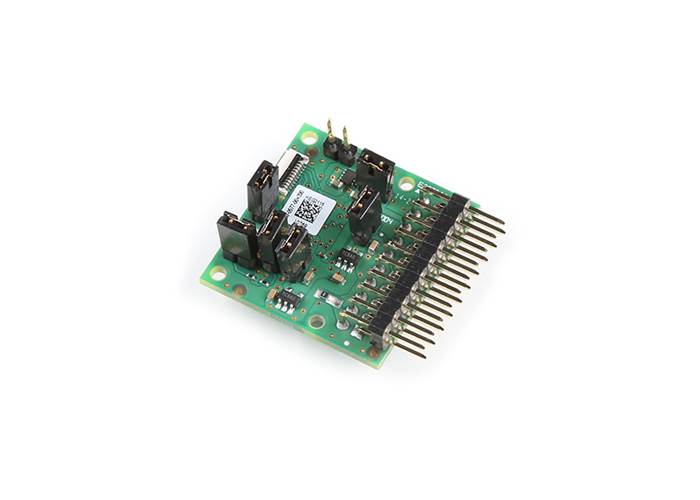

FLiR Lepton Breakout Board V2

The FLIR Lepton® Thermal Camera Breakout Board is an easy-to-interface evaluation board to quickly connect the FLIR Lepton camera module to common platforms like Raspberry Pi or custom hardware. It provides onboard power supplies, generated from 3 – 5.5V, and a master clock. Local power supplies, the master clock, and the power-up sequence components can all be bypassed using a jumper.

This breakout works with all FLIR Lepton modules.

Note: The FLIR Lepton Breakout Board V2 does not include a FLIR Lepton Module. You pick one up today by following this link or by clicking the product in the Hookup Accessories below.

• Operating temperature 0°C to 55°C
• Input voltage: 3 V to 5.5 V
• Space-saving: (29.5 mm × 29.0 mm)
• Works with all FLIR Lepton modules

• Datasheet
• Schematic
• Breakout Drawing
