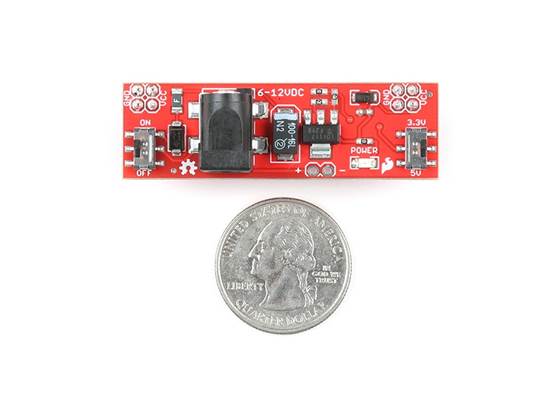

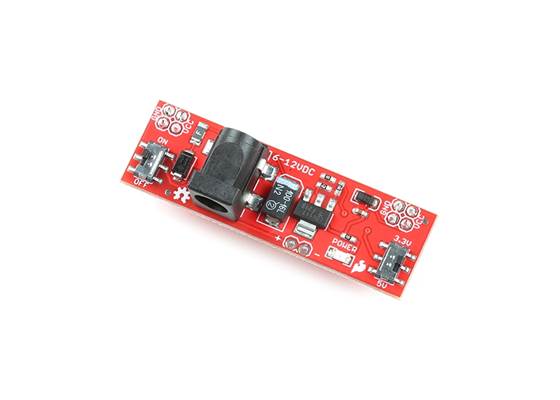

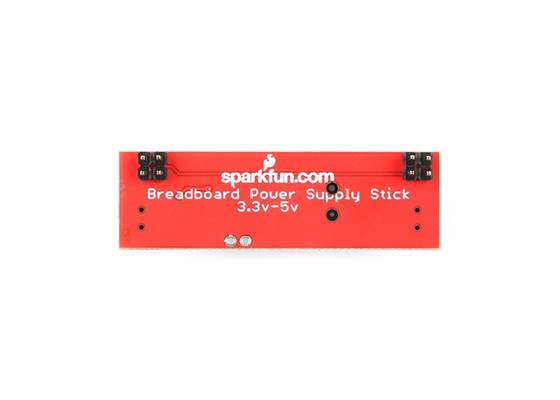

SparkFun Breadboard Power Supply Stick - 5V/3.3V (with Headers)

This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage. All headers are 0.1" pitch for simple insertion into a breadboard. Input power can be supplied to either the DC barrel jack or the two pin header labelled + and -.

24.95

Not currently available

Our Code: SKU-009655

Supplier Link: [SparkFun MPN:21297]


Description

This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage. All headers are 0.1" pitch for simple insertion into a breadboard.

Input power can be supplied to either the DC barrel jack or the two pin header labelled + and -. Output power is supplied to the pins labelled GND and VCC. Board has both an On/Off switch and a voltage select switch (3.3V/5V).

The two sets of four GND and VCC holes are spaced such that when connected to our Basic Breadboard both power busses will be powered.


Specifications

  • 6-12V input voltage via barrel jack or 2-pin header
  • 3.3V or 5V regulated output voltage
  • 800mA Operating Current
  • ON/OFF switch
  • Output voltage select switch
  • Power status LED
  • PTC fuse protected power
  • 5.5x2.1mm centre positive barrel jack
  • 2.15x0.65"
