The Pololu 3pi+ 2040 robot is a palm-sized, high-performance mobile platform based on the Raspberry Pi RP2040 MCU, and this kit contains all the parts you need to build the Hyper Edition version , including a pair of 15:1 HPCB 6V Micro Metal Gearmotors.
Special Order
Shipping from $7.90
+23 more from our supplier in 7-10 days
Our Code: SKU-010090
Supplier Link: [Pololu MPN:5003]

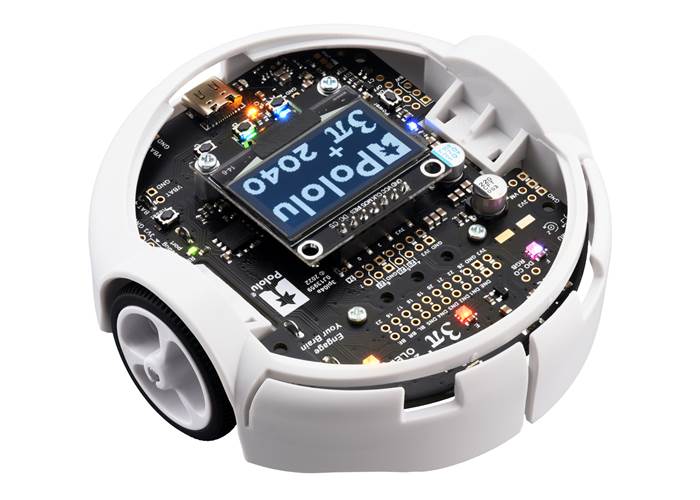

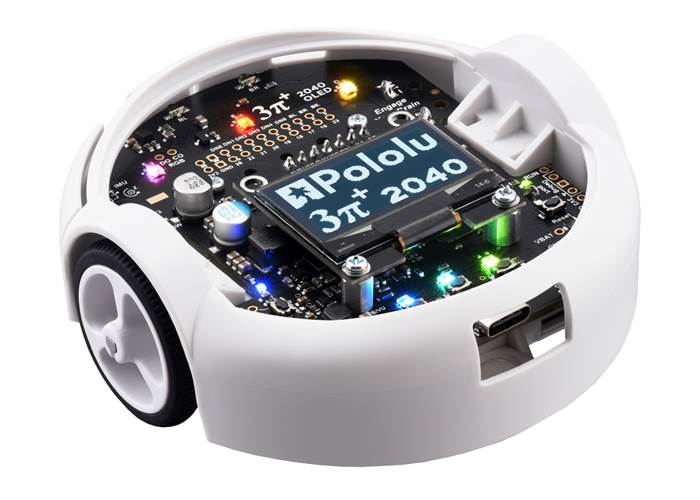

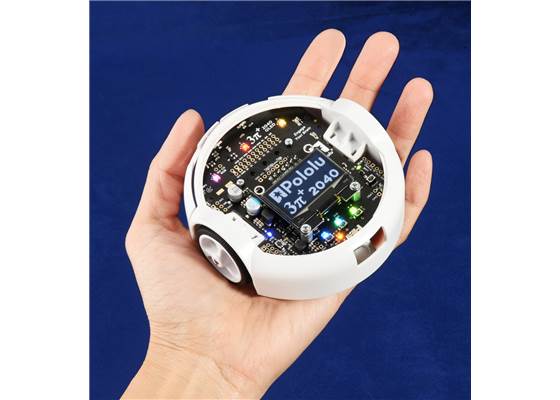

The 3pi+ 2040 is a versatile, high-performance, user-programmable robot that measures just 9.7 cm (3.8″) in diameter. At its heart is a Raspberry Pi RP2040 microcontroller (like the one on the Raspberry Pi Pico), a 32-bit dual-core Arm Cortex-M0+ processor running at 125 MHz, which can be programmed with C, C++, Arduino, or Python. The 3pi+ 2040 has 16 MB (128 Mbit) of flash memory that ships preloaded with a MicroPython interpreter, so you can get started right away by plugging into its USB C port and editing the included example Python programs. For advanced users who want to customise or enhance their robots with additional peripherals, the robot’s power rails, power system controls, and microcontroller’s I/O lines can be accessed via several 0.1″-pitch expansion ports.

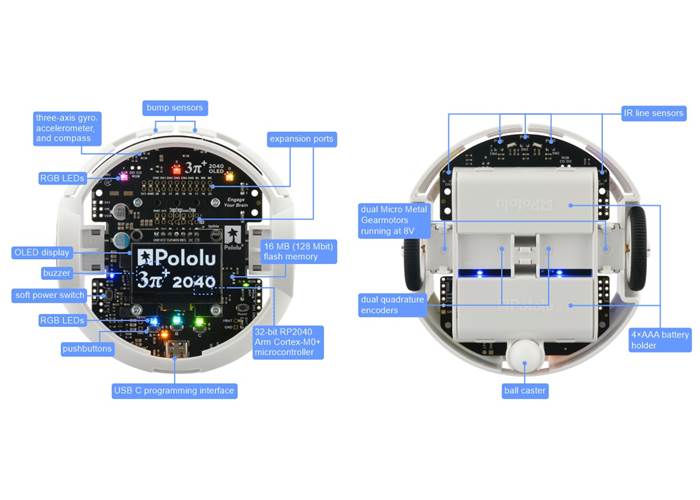

The 3pi+ (or 3𝜋+) 2040 features two H-bridge motor drivers and a variety of integrated sensors, including a pair of quadrature encoders for closed-loop motor control, a complete inertial measurement unit (3-axis accelerometer, gyro, and magnetometer), five downwards-facing reflectance sensors for line-following or edge-detection, and left and right bump sensors along the front face of the robot. Three on-board pushbuttons offer a convenient interface for user input, and a 128×64 graphical OLED display, buzzer, and six RGB LEDs allow the robot to provide feedback.
The robot also features a unique power system that runs the motors at a constant 8 V independent of the battery charge level, so the speed of the motors does not vary with the battery voltage.
The 3pi+ 2040 robot is available as a kit or fully assembled:
3pi+ 2040 Version | Products | Micro Metal Gearmotor | Top Speed | Comments |
---|---|---|---|---|
Standard Edition | assembled or kit | 30:1 MP 6V | 1.5 m/s | good combination of speed and controllability |
Turtle Edition | assembled or kit | 75:1 LP 6V | 0.4 m/s | longest battery life, easiest to control, good for swarm robots or introductory robotics courses |
Hyper Edition | assembled or kit | 15:1 HPCB 6V | ~4 m/s | very fast and difficult to control, easy to damage; only recommended for advanced users |
For those who would prefer to use different motors than these versions above, the 3pi+ chassis and 3pi+ 2040 control board are available separately and can be combined with a pair of motors to make a custom kit.
The following video shows the steps to assemble a different version of the 3pi+ robot (the 3pi+ 32U4 OLED robot), but these steps generally remain the same for the 3pi+ 2040:

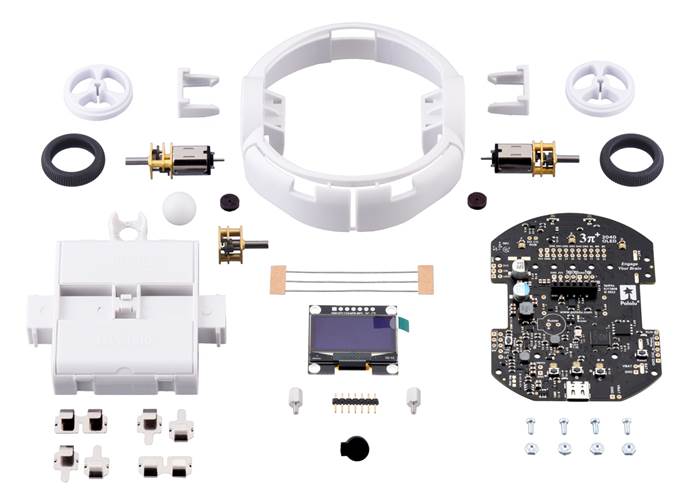

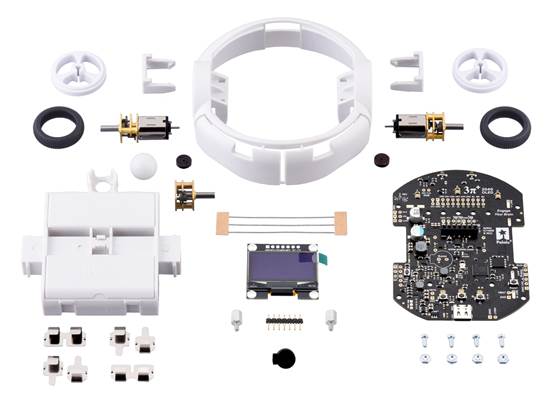

This product is the kit version of the Hyper Edition of the 3pi+ 2040 Robot. Assembly (including soldering) is required. This edition is very difficult to control and fast enough to damage itself from impacts, so it is only recommended for advanced users. We strongly recommend keeping motor speeds below 50% on this version. A spare gearbox is included with this edition and instructions for installing it can be found here (note that this video was made for an older version of the 3pi+ robot, but the mechanical instructions for replacing the gearbox still apply to this newer 2040 version).
This kit includes:
A pre-assembled version of this kit is also available.
Size: | 97L × 96W × 36H mm |
---|---|
Weight: | 100 g1 |
Processor: | RP2040 @ 125 MHz |
---|---|
RAM size: | 264 Kbytes |
Program memory size: | 16 Mbytes |
Assembled: | N |
Version: | Hyper Edition (15:1 HPCB Motors) |
PCB dev codes: | 3pi04a |
---|---|
Other PCB markings: | 0J13959 |
User’s manual for the Pololu 3pi+ 2040 robot.
This file contains 3D models (in the STEP file format) of the 3pi+ 2040 Robot. These models use a simplified model of the control electronics to reduce the file size. A more detailed model of the 3pi+ 2040 Control Board (27MB step) is available separately.
This file contains 3D models (in the STEP file format) of the 3pi+ Chassis Kit. Note that the models include micro metal gearmotors that are sold separately from the chassis.
These DXF drawings make it possible to get various dimension measurements of the 3pi+ 2040 Robot.
This DXF drawing shows the locations of all of the board’s holes.
This repository contains libraries and example code for the Pololu 3pi+ 2040 Robot in MicroPython and C.
