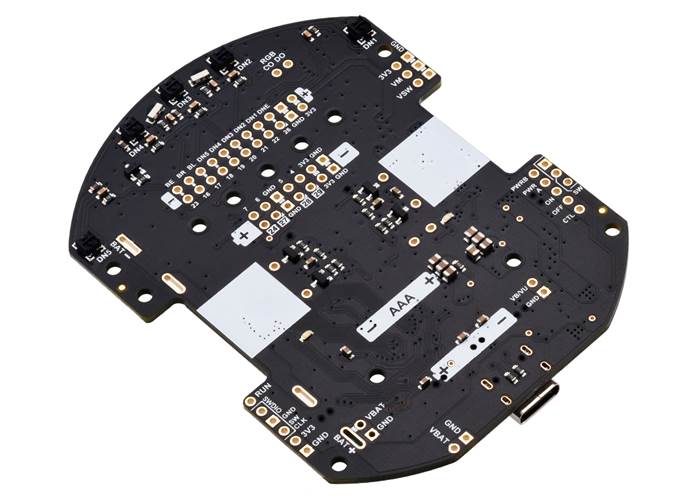

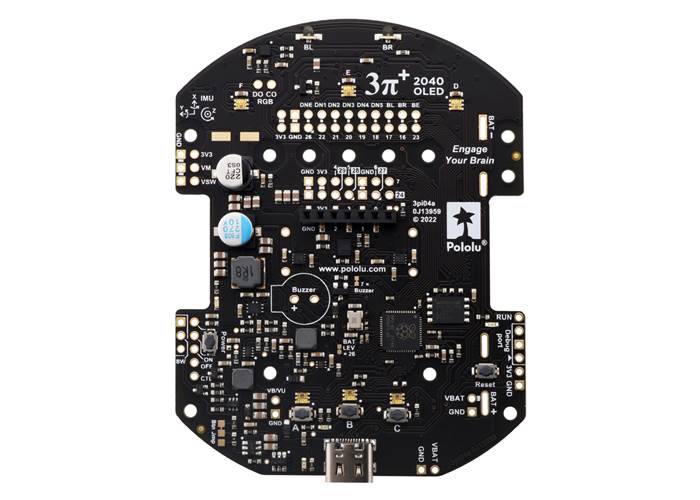

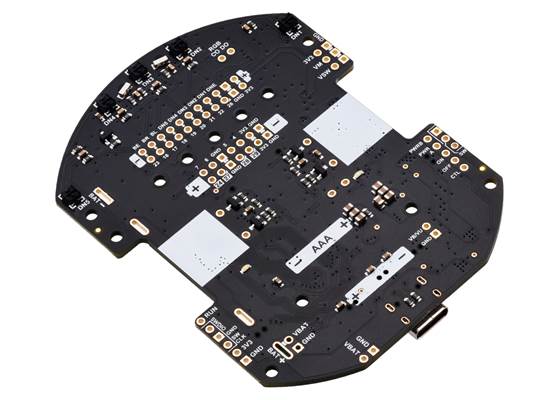

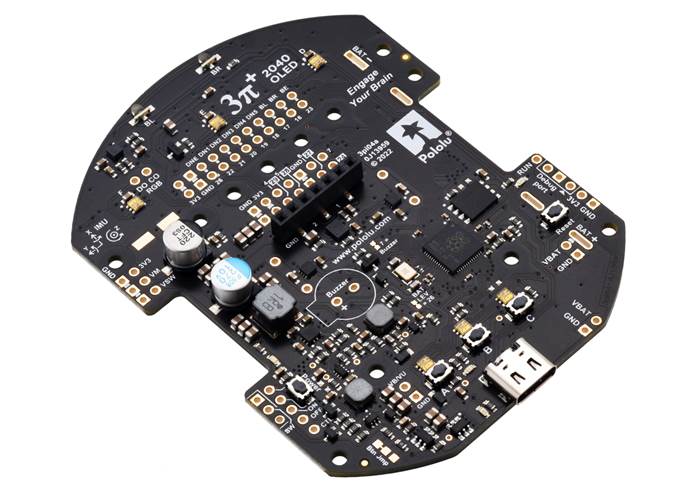

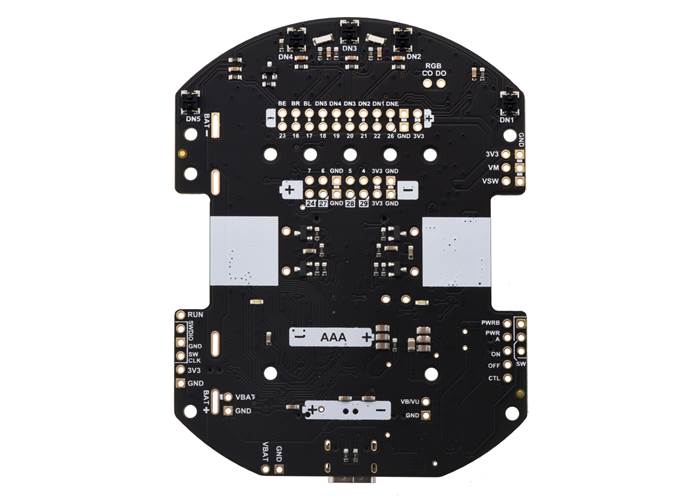

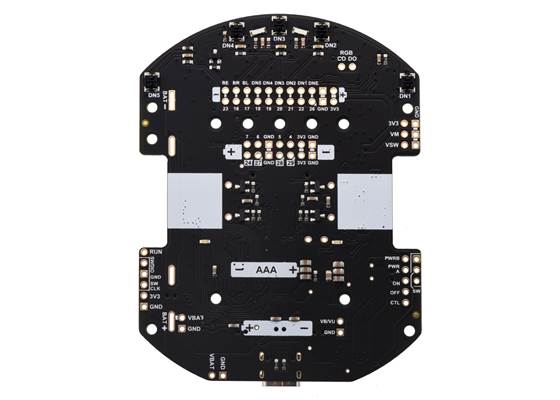

3pi+ 2040 Control Board

Overview

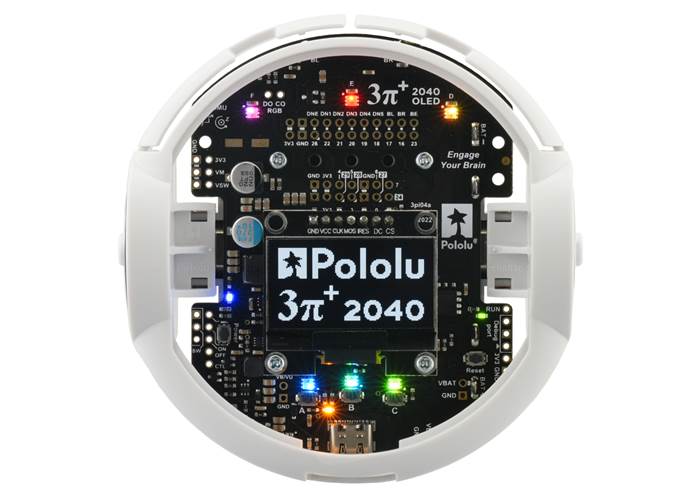

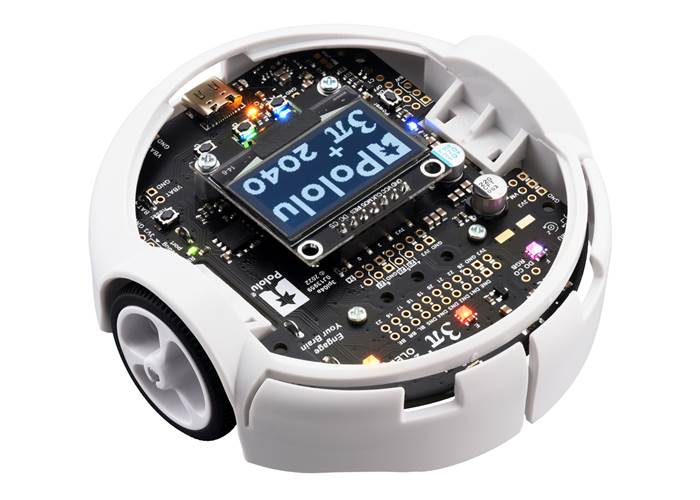

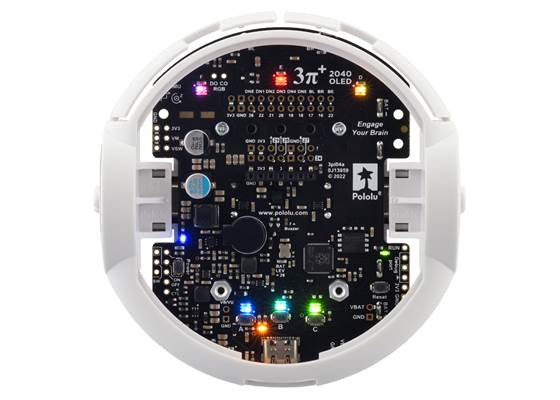

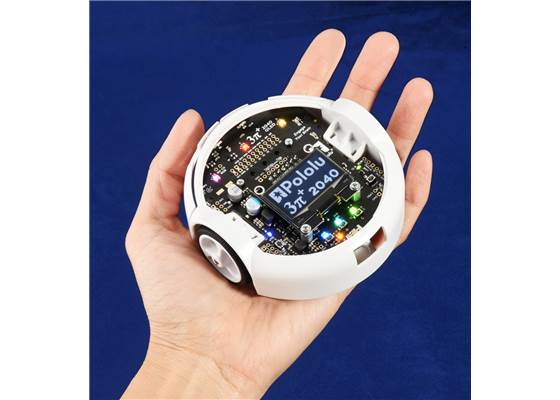

The 3pi+ 2040 Control Board is designed to be assembled with a 3pi+ Chassis Kit, a pair of 6V Micro Metal Gearmotors with extended motor shafts, and a graphical OLED display to create a 3pi+ 2040 robot. This product is primarily intended as a replacement product for the 3pi+ 2040 robots and kits that already include it or for those who want to build a 3pi+ 2040 robot with different gearmotor versions than the ones offered with those complete kits and assembled robots.

This control board is already included as part of the following 3pi+ 2040 assembled robots and kits:

• 3pi+ 2040 Robot – Standard Edition (30:1 MP Motors), Assembled
• 3pi+ 2040 Robot – Turtle Edition (75:1 LP Motors), Assembled
• 3pi+ 2040 Robot – Hyper Edition (15:1 HPCB Motors), Assembled
• 3pi+ 2040 Robot Kit with 30:1 MP Motors (Standard Edition Kit)
• 3pi+ 2040 Robot Kit with 75:1 LP Motors (Turtle Edition Kit)
• 3pi+ 2040 Robot Kit with 15:1 HPCB Motors (Hyper Edition Kit)

Included components

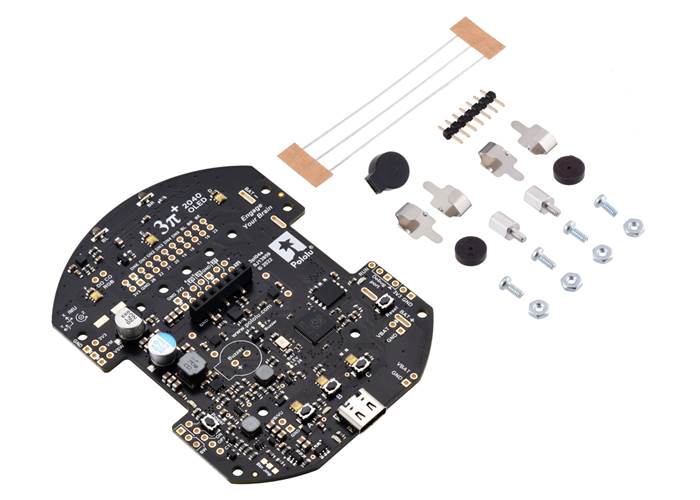

The 3pi+ 2040 Control Board ships with all of its surface-mount components populated, and it includes the following through-hole parts and mounting hardware:

• one buzzer
• jumper wires for soldering motors to the board
• two magnetic encoder discs
• one low-profile 1×7 male header for use with a graphical OLED display (not included)
• four single battery contacts
• four 3/16″ #2-56 screws, two 1/4″ #2-56 standoffs, and four nuts for mounting the board to a 3pi+ Chassis and an OLED display to the board

Please note that assembly (including soldering) is required; see the user’s guide for assembly instructions.

What else you will need

To build a robot with the 3pi+ 2040 Control Board, you will need a few additional parts:

• a 3pi+ Chassis Kit
• two Micro Metal Gearmotors with extended motor shafts (6V MP or 6V HPCB versions recommended)
• a graphical OLED display (this is not required for operation, but it is strongly recommended)
• four AAA batteries: the 3pi+ chassis and control board work with both alkaline and NiMH batteries, though we recommend rechargeable NiMH cells
• a USB A to Micro-B cable to connect the robot to your computer for programming and debugging
• tools to help with kit assembly; see the user’s guide for a list of specific tools

Optional accessories

You might also consider getting these for your 3pi+ 2040 robot:

• more sensors
• connectors (headers, jumper wires, etc) for adding those sensors or other peripherals to the 3pi+ 2040 expansion ports

Dimensions

General specifications

Identifying markings

Notes:

1

Without included hardware.

Documentation and other information

•

  Pololu 3pi+ 2040 User’s Guide

  User’s manual for the Pololu 3pi+ 2040 robot.

File downloads

• Schematic diagram of the 3pi+ 2040 Control Board (305k pdf)

• Pinout and power distribution diagrams of the 3pi+ 2040 Control Board (1MB pdf)

• Dimension diagram of the 3pi+ 2040 Control Board (2MB pdf)

• Dimension diagram of the 3pi+ 2040 Robot (2MB pdf)

• 3D model of the 3pi+ 2040 Control Board (27MB step)

• 3D models of the 3pi+ 2040 Robot (18MB zip)

  This file contains 3D models (in the STEP file format) of the 3pi+ 2040 Robot. These models use a simplified model of the control electronics to reduce the file size. A more detailed model of the 3pi+ 2040 Control Board (27MB step) is available separately.

• Front, top, and side views of the 3pi+ 2040 Robot (420k zip)

  These DXF drawings make it possible to get various dimension measurements of the 3pi+ 2040 Robot.

• Drill guide for the 3pi+ 2040 Control Board (65k dxf)

  This DXF drawing shows the locations of all of the board’s holes.

Recommended links

• 3pi+ 2040 Robot Libraries and Example Code

  This repository contains libraries and example code for the Pololu 3pi+ 2040 Robot in MicroPython and C.
