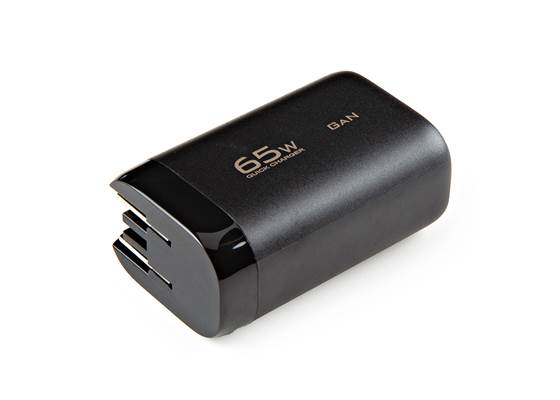

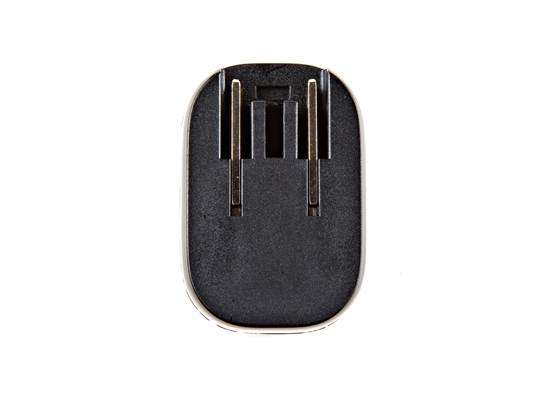

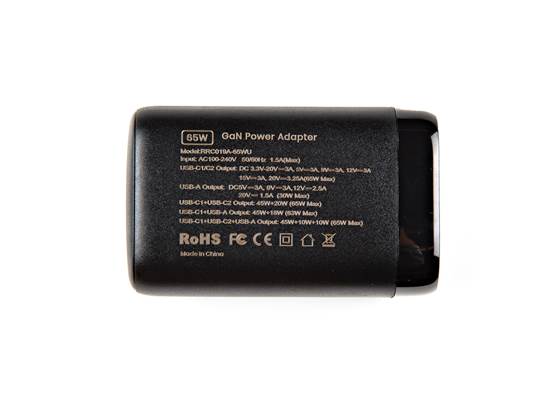

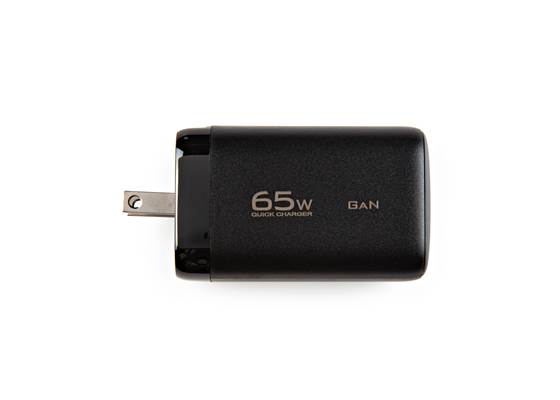

USB A and C Power Delivery (PD) Wall Adapter - 65W

This is a 65W power delivery (PD) wall adaptor. The power supply will deliver a maximum of 240VAC, 1.5A. It has one USB-A and two USB-C ports. The adaptor uses an internal primary current fuse, inrush limiting for input protection.

AUD$ 37.95

Special Order

Shipping from $7.90

+36 more from our supplier in 7-10 days

Our Code: SKU-010283

Supplier Link: [SparkFun MPN:24059]


Description

This is a 65W power delivery (PD) wall adaptor. The power supply will deliver a maximum of 240VAC, 1.5A. It has one USB-A and two USB-C ports. The adaptor uses an internal primary current fuse, inrush limiting for input protection.


Specifications

  • Voltage: 100-240VAC
  • Line Frequency: 50~60Hz
  • Current: 1.5A Max
  • Line Regulation: ±5% (typical)
  • Ripple: 200mV p-p (Max)
  • Turn On Delay Time: 3S (Max)
  • Rise Time: 40mS (Max)
  • Hold-Up Time: 5mS (Max)
  • Standby Power: 0.1W

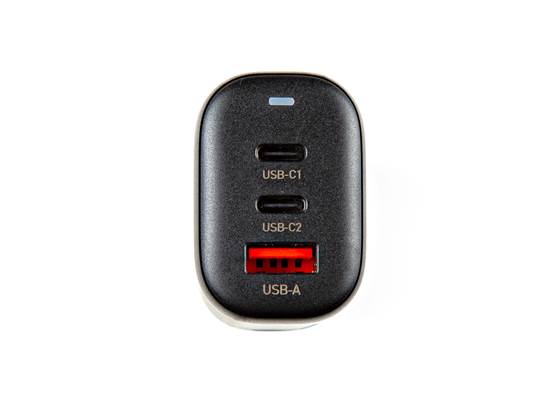

  • DC Output Plug: USB Type-C x2 +USB-A
  • Single Port Working:
    • USB C1/C2 output (65W Max)
    • USB A output (30W Max)
  • Two Ports Working:
    • USB C1+C2 output (45W+20W)
    • USB C1+A output (45W+18W)
  • Three Ports Working:
    • USB C1+C2+A output (65W Max)
  • Topology: Switching Flyback
  • Dielectric Withstand: 3000VAC Primary-Secondary
  • Leakage Current: 0.25mA
  • Operating Temperature: 0°C to +40°C
  • Storage Temperature: -20°C to +80°C
  • Relative Humidity: Operating: 10%(0℃)~90%(40℃)RH 72Hrs,Full load, Normal operating
  • Cooling: Natural Convection Cooling
