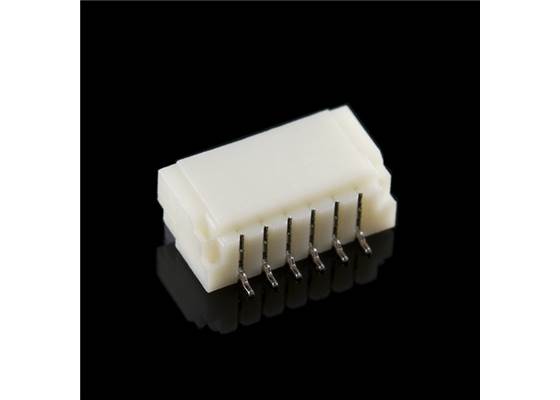

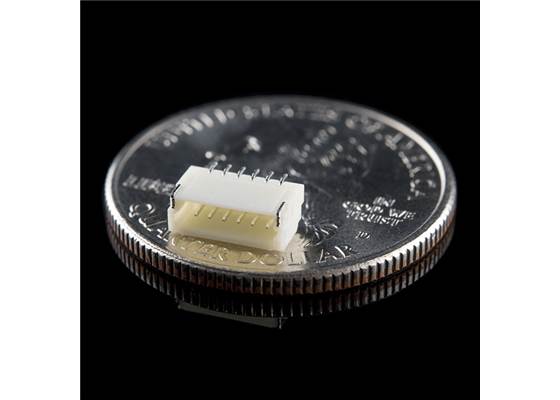

JST SH Horizontal 6-Pin Connector - SMD

Here is a six pin horizontal 1.0mm pitch connector. It is useful if you need something very tiny as a connection. These are not the standard JST type connectors we use on most of our boards, but are actually the much smaller JST-SH type. Check the drawing below. Documents: Drawing

Not currently available

Our Code: SKU-000617

Supplier Link: [SparkFun MPN:10210]


Description

Here is a six pin horizontal 1.0mm pitch connector. It is useful if you need something very tiny as a connection. These are not the standard JST type connectors we use on most of our boards, but are actually the much smaller JST-SH type. Check the drawing below.


Resources
