This connector, a smaller version of the female Tamiya plug , is commonly used with battery packs for RC applications. The connector is keyed so that power cannot be reversed, and a latch secures the connection so that it will not become disconnected.
Special Order
Shipping from $7.90
+177 more from our supplier in 7-10 days
Our Code: SKU-003082
Supplier Link: [Pololu MPN:2178]
This connector with leads makes a great power cable. The connector is keyed so that power cannot be reversed, and a latch secures the connection so that it will not become disconnected.

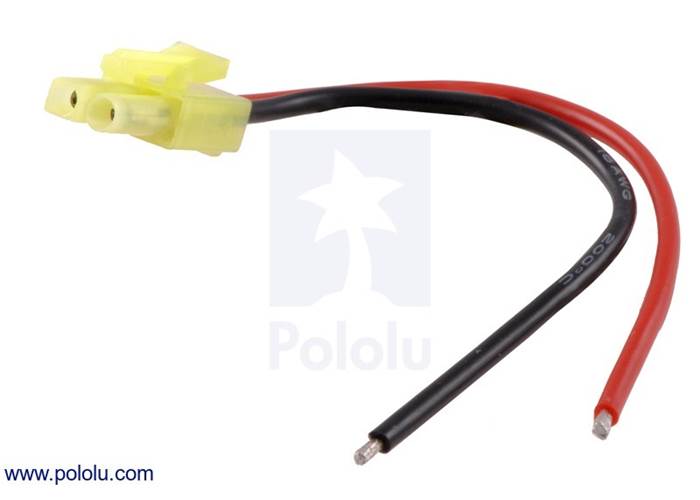

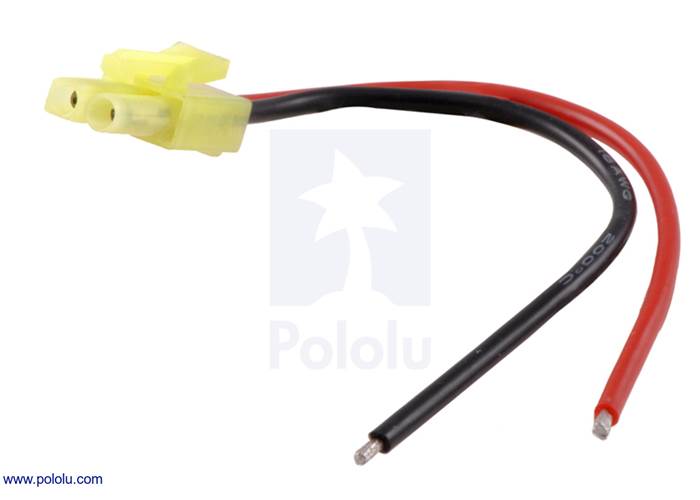

This is the female version of the connector (we also offer a matching male version). Two 10 cm 18-AWG wires are crimped inside the connector housing. The leads have silicone insulation and stripped, tinned terminations. As an alternative, we sell a mini Tamiya connector pack that includes housings and crimp pins you can use to attach these female connectors to your own wires.
Note: these connectors are sometimes referred to as “male” in the RC hobby industry, so please look at the connector picture below carefully to make sure it is what you want.

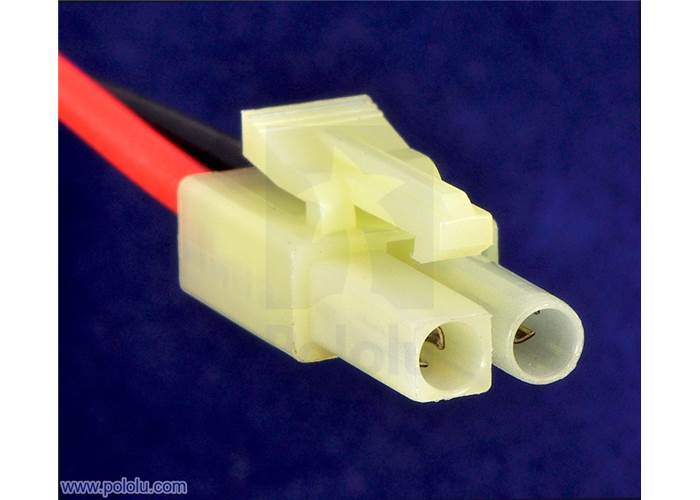

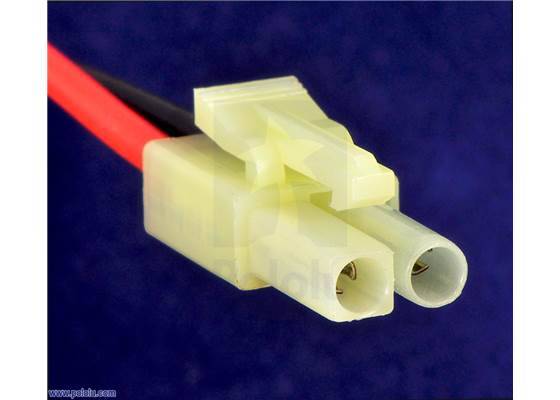

Female mini Tamiya plug connector |

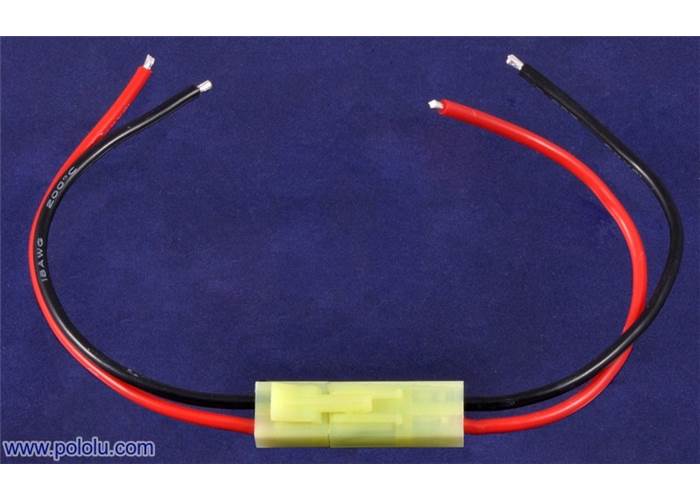

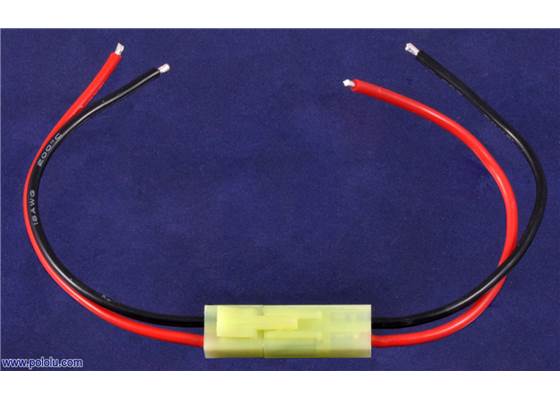

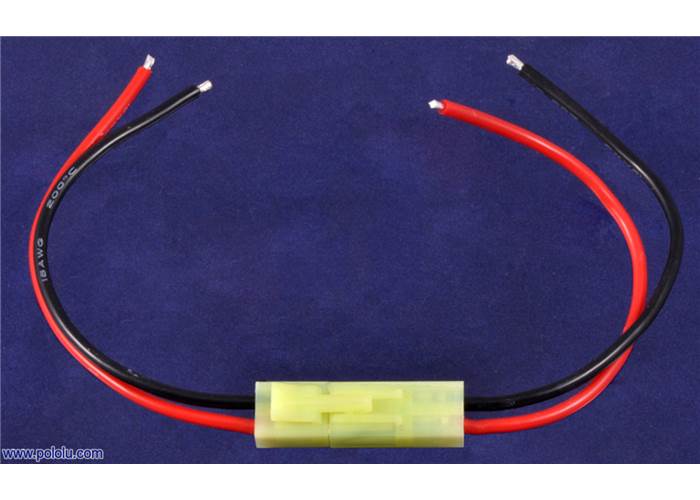

Male and female mini Tamiya plugs connected |

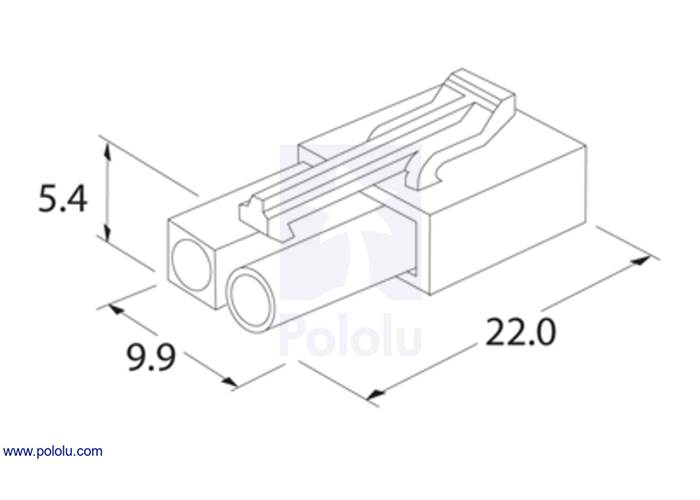

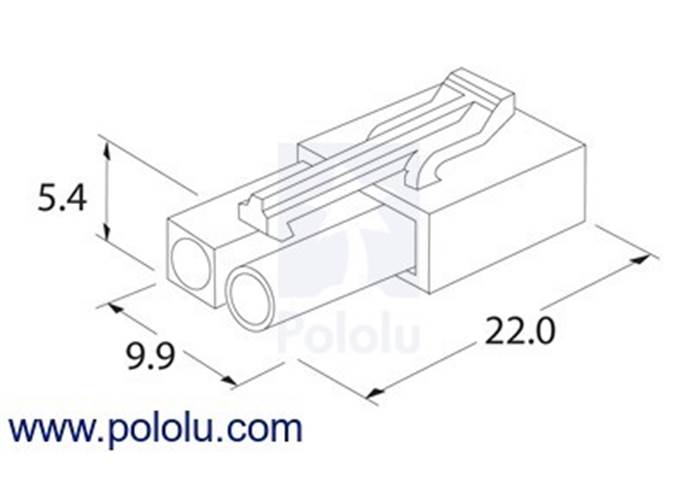

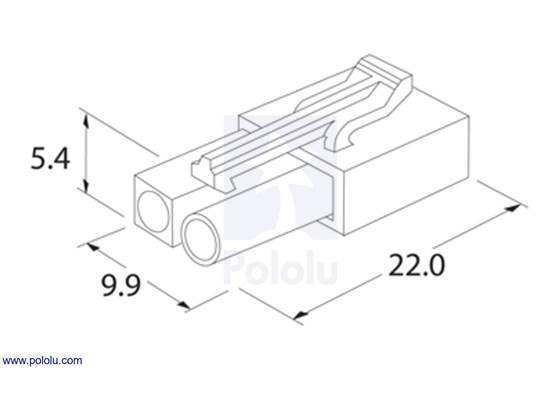

Female mini Tamiya plug dimensions (in mm)
Note: This connector is also available in the larger Tamiya version.
| Gender: | female |
|---|---|
| Lead length: | 10 cm |
