QTR-L-1A Reflectance Sensor (2-Pack)

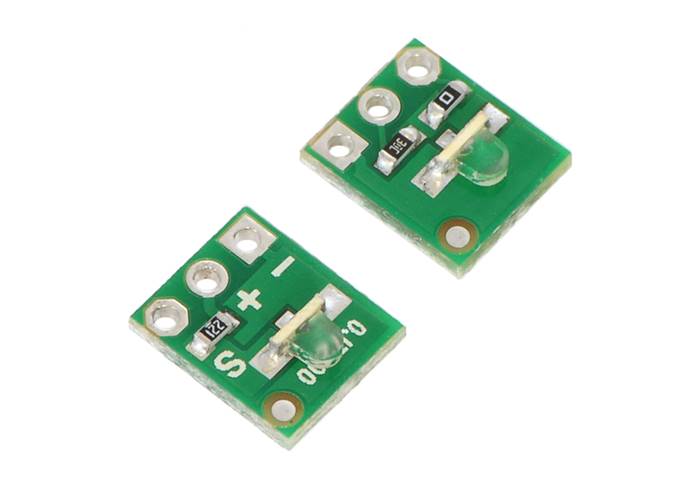

The QTR-L-1A reflectance sensor incorporates a right-angle infrared LED and a right-angle phototransistor in an inexpensive, tiny 0.35″ × 0.3″ module that can be mounted almost anywhere and is great for edge detection and line following.

AUD$ 6.95

Special Order

Shipping from $7.90

+118 more from our supplier in 7-10 days

Our Code: SKU-003239

Supplier Link: [Pololu MPN:2454]


Description

Note: The QTR-L-1A reflectance sensor requires an analogue input to take readings. The similar QTR-L-1RC reflectance sensor is available with a digital I/O-compatible output.

Functional Description

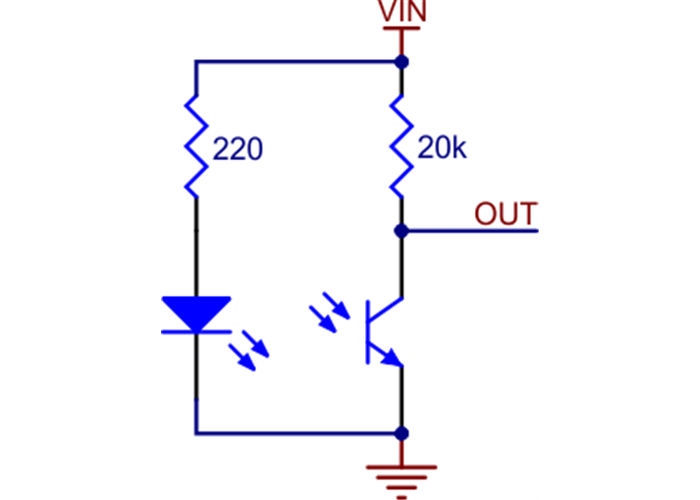

The Pololu QTR-L-1A reflectance sensor carries a right-angle infrared LED and a right-angle phototransistor, both pointing towards the front edge of the board. The phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analogue voltage output between 0 V and VIN (which is typically 5 V) as a function of the reflected IR. Lower output voltage is an indication of greater reflection.

The LED current-limiting resistor is set to deliver approximately 17 mA to the LED when VIN is 5 V. The current requirement can be met by some microcontroller I/O lines, allowing the sensor to be powered up and down through an I/O line to conserve power.

This sensor was designed to be used with the board perpendicular to the surface being sensed, and narrow-angle lenses built into the infrared LED and phototransistor packages allow it to be effective to a range of about 1″ (25 mm). Because of its small size, multiple units can easily be arranged to fit various applications such as line sensing and proximity/edge detection. The QTR-L-1A is sold in packs of two units.

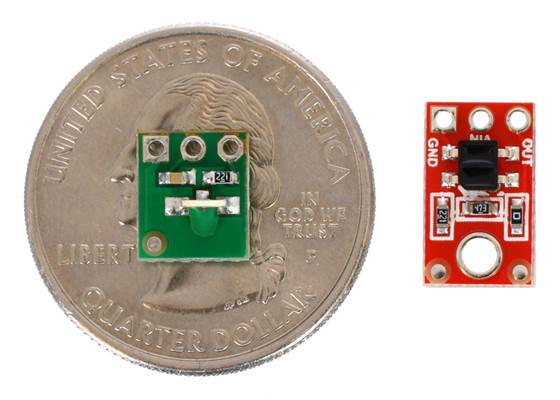

For a similar sensor that can be used with the board parallel to the surface, but with shorter range, please see the QTR-1A reflectance sensor. We also offer arrays of three and eight sensors: the QTR-3A reflectance sensor array and the QTR-8A reflectance sensor array.

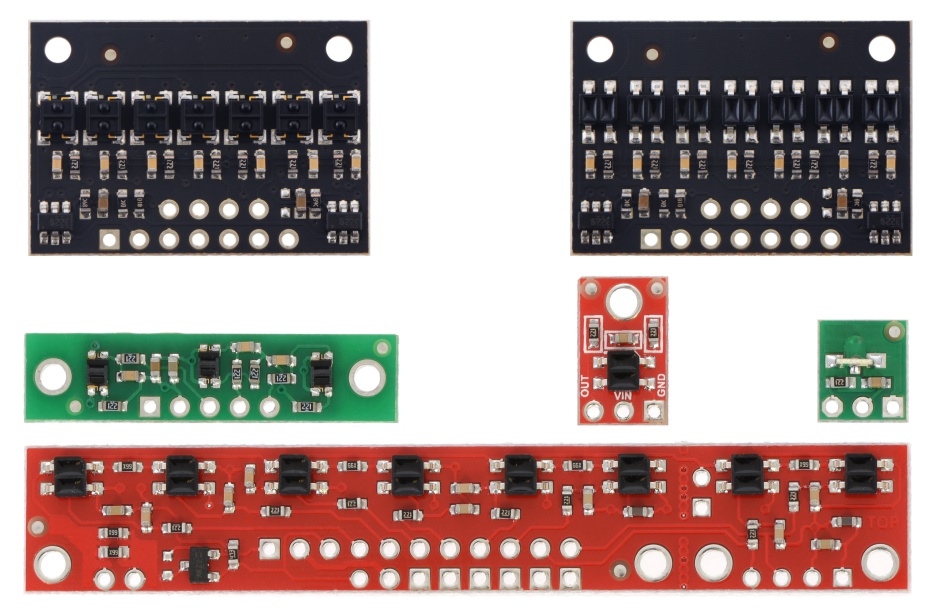

QTR sensor size comparison. Clockwise from top left: QTR-3RC, QTR-1RC, QTR-L-1RC, QTR-8RC

Specifications

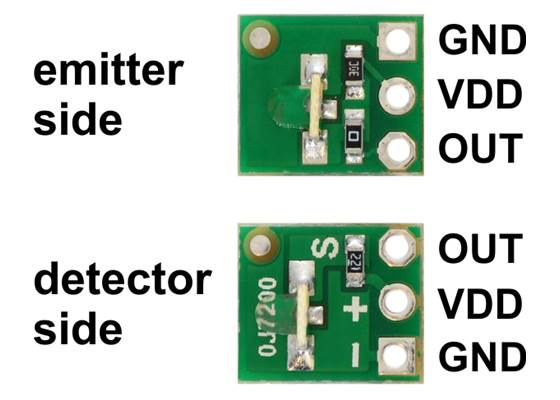

QTR-L-1A reflectance sensor emitter and detector sides with labeled pinout

  • Dimensions: 0.3″ × 0.35″ × 0.12″ (without optional header pins installed)
  • Operating voltage: 5.0 V
  • Supply current: 17 mA
  • Output format: analogue voltage
  • Output voltage range: 0  to supplied voltage (dependent on operating environment)
  • Optimal sensing distance: 0.125″ to 0.25″ (3 mm to 6 mm)
  • Maximum recommended sensing distance: 1″ (25 mm)
  • Weight without header pins: 0.006 oz (0.2 g)

Interfacing with the QTR-L-1A Output

There are several ways you can interface with the QTR-L-1A output:

  • Use a microcontroller’s analogue-to-digital converter (ADC) to measure the voltage.
  • Use a comparator with an adjustable threshold to convert the analogue voltage into a digital (i.e. black/white) signal that can be read by the digital input line of a microcontroller.
  • Connect the output directly to the digital input line of a microcontroller and rely upon its internal comparator.

This last method will work if you are able to get high reflectance from your white surface (so that there is a large output voltage difference over black and white surfaces), but will probably fail if you have a lower-reflectance signal profile. The following table shows some typical output voltages from the sensor over different surfaces and at different distances:

White surface 3/4″ black electrical tape
0.25″ distance 0.2 V 3.8 V
1″ distance 2.4 V 3.5 V

Ambient light, especially sunlight, can affect the sensor readings significantly. If the output voltage from the QTR-L-1A is consistently low, you might need to add shielding around the sensor or mount it in a different location to reduce interference from outside light sources.

Our Pololu AVR library provides functions that make it easy to use these sensors with our Orangutan robot controllers; please see the QTR Reflectance Sensors section of our library command reference for more information. We also have a Arduino library for these sensors.

Included Components

Each pack of two reflectance sensors includes sets of straight male header strips and right-angle male header strips, which allow you to mount them in the orientation of your choice. You can also solder wires, such as ribbon cable, directly to the pads for the most compact installation.

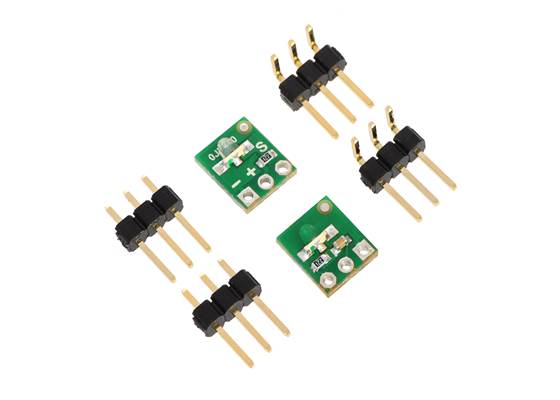

QTR-L-1A or QTR-L-1RC reflectance sensor (2-pack) with included header pins

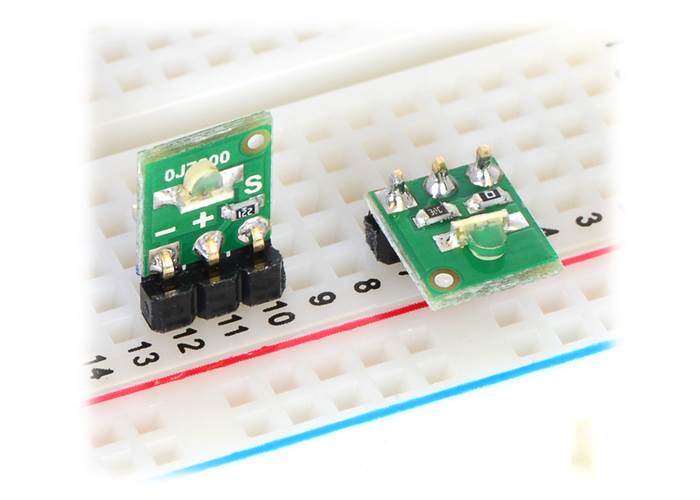

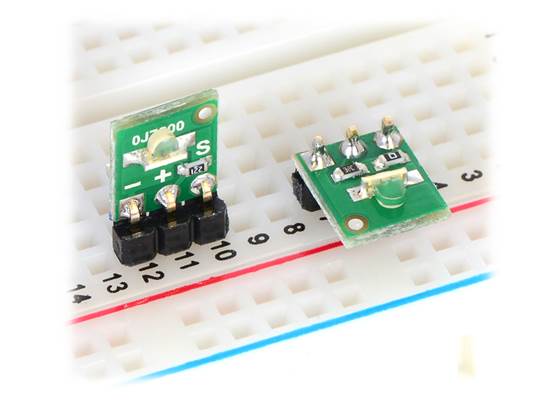

QTR-L-1A and QTR-L-1RC reflectance sensors plugged into a breadboard in two possible orientations


Resources

Documentation and other information

Pololu QTR Reflectance Sensor Application Note (Printable PDF)

Information about using the Pololu QTR-xA and QTR-xRC reflectance sensors, including sample oscilloscope screen captures of sensor outputs.

Pololu AVR C/C++ Library User’s Guide (Printable PDF)

Information about installing and using the C/C++ libraries provided for use with Pololu products.

Arduino Library for the Pololu QTR Reflectance Sensors (Printable PDF)

This guide explains how to use the QTRSensors library to read Pololu QTR sensors with an Arduino or A-Star 32U4 controller.

Pololu AVR Library Command Reference (Printable PDF)

A reference to commands provided in the Pololu C/C++ and Arduino libraries for the AVR.

Building Line Following and Line Maze Courses (Printable PDF)

Step-by-step instructions for building your own line-following courses.
